Name: Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Brand: TMTeck Instrument Co., Ltd
SKU: THL210
Price: Negotiable USD
Availability: InStock

Detail Information

Services:	OEM, ODM, OBM	Warranty:	2 Years
Hardness Scale:	HL, HB, HRB, HRC, HRA, HV, HS	Memory:	48～600 Groups （impact Times: 32～1）
Standard Impact Device:	D	Operating Temperature:	0~40℃
Highlight:	600 groups data memory Hardness Tester , 7 types of Impact Device Leeb Hardness Tester , USB interface with Protective Membrane Ultrasonic Hardness Tester

Product Description

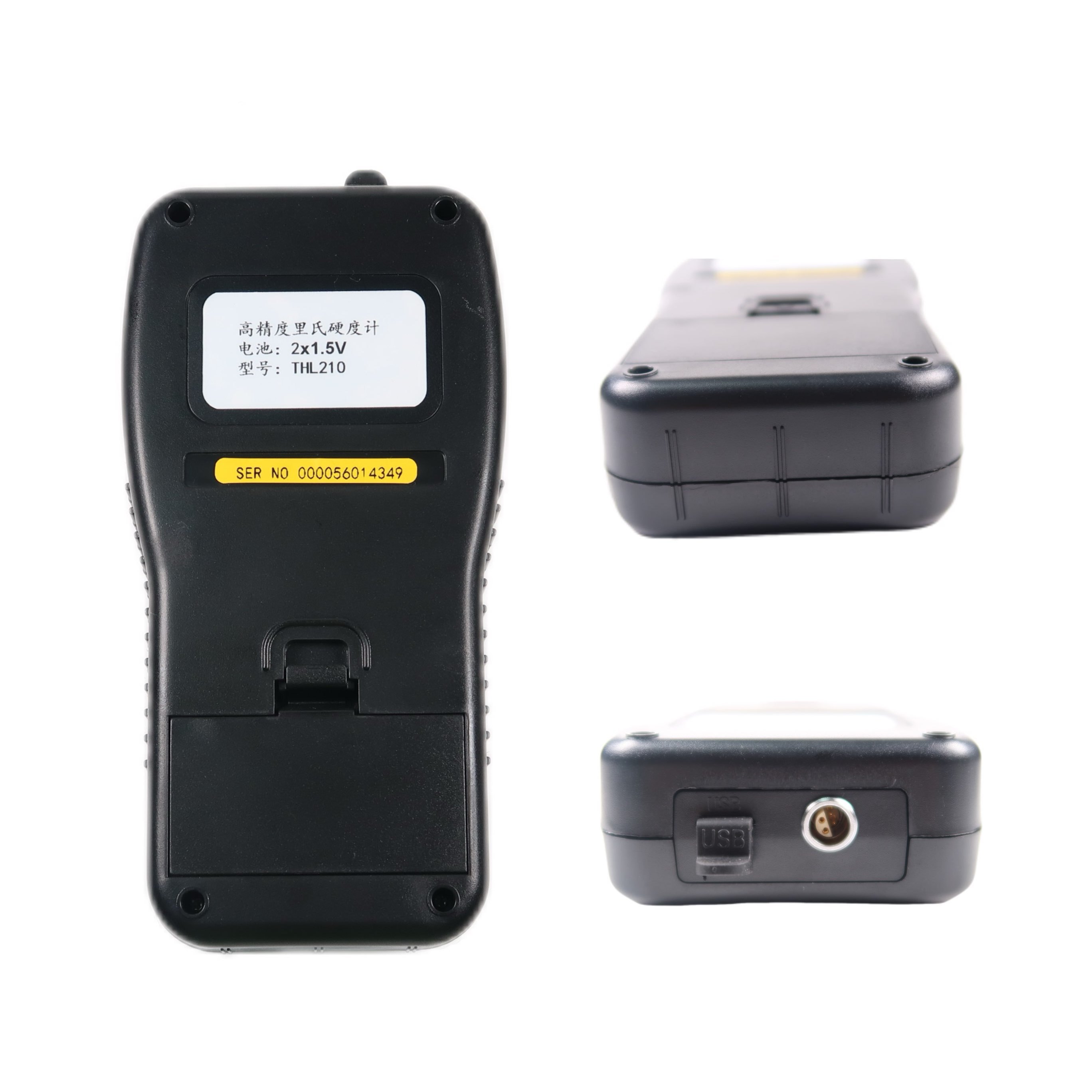

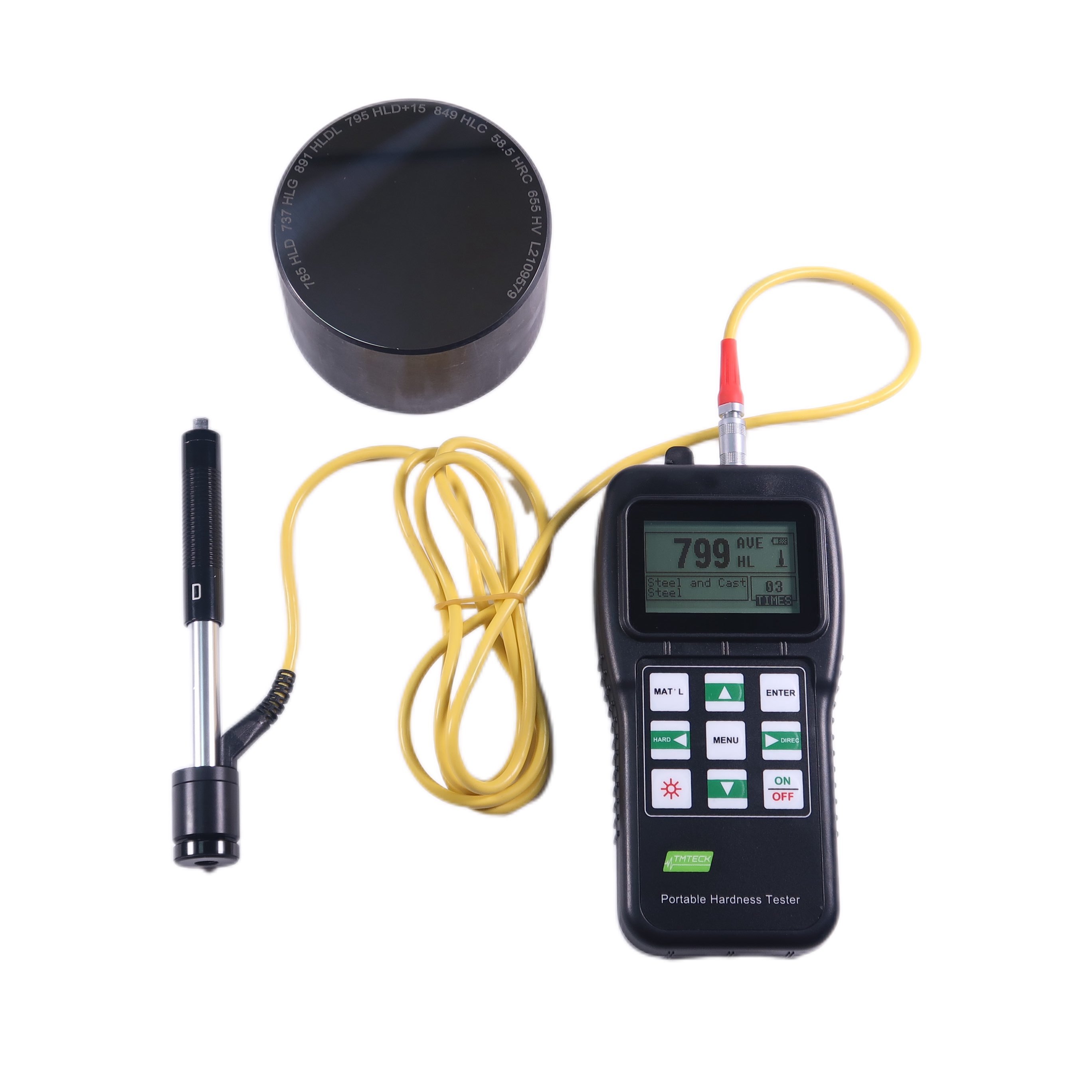

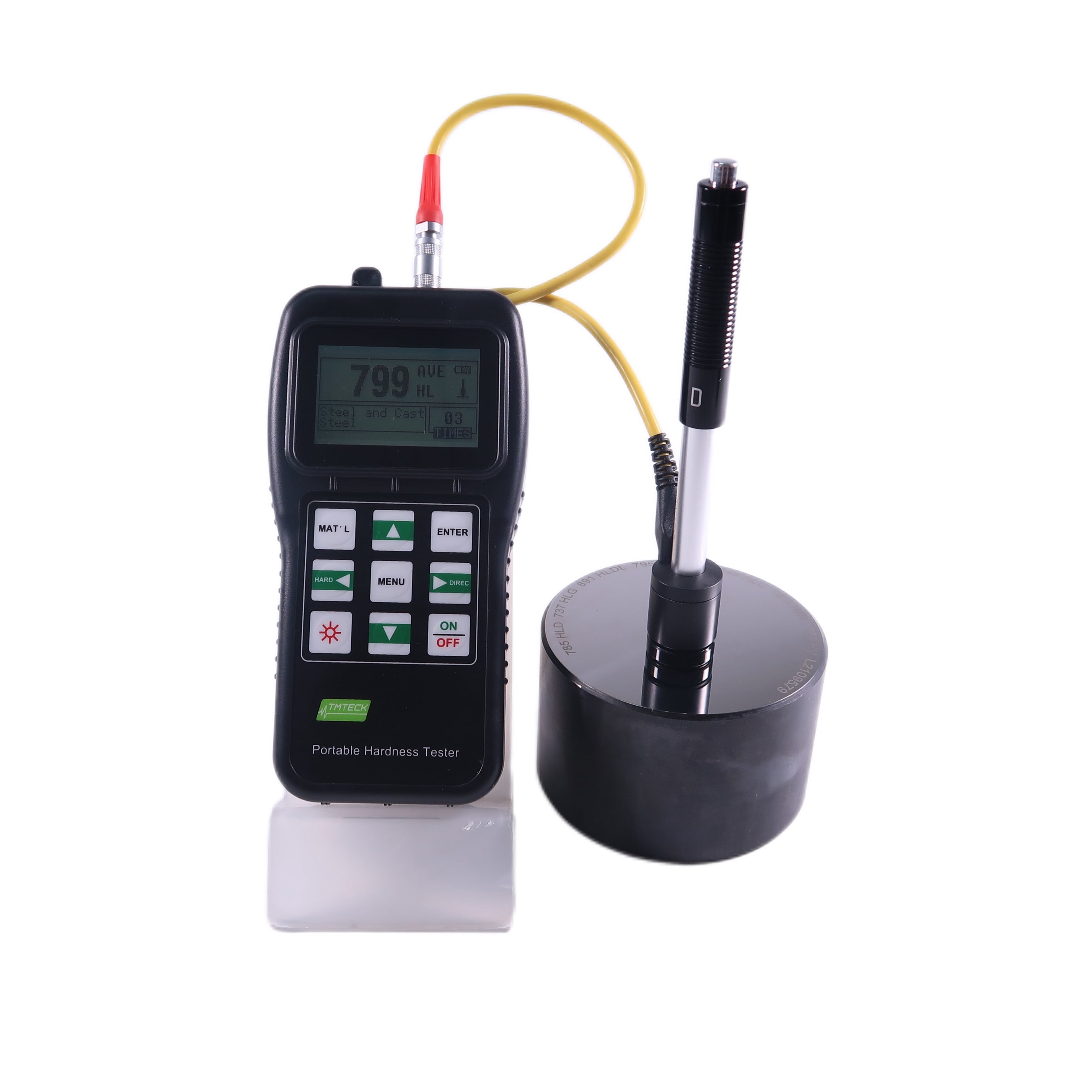

Leeb Hardness Tester THL210

Professional Leeb hardness tester with advanced features for accurate material hardness measurement and analysis.

Key Features

128*64 matrix LCD display with back-light showing all functions and parameters
Converts to all common hardness scales (HV, HB, HRC, HRB, HRA, HS)
English display with easy menu operation
Powerful PC software with USB 1.0 interface and protective membrane
7 types of impact devices available without recalibration
Memory capacity of 600 data groups (impact times: 32-1)
Lower limit setting with sound alarm function
Added "cast steel" material type with direct HB value reading using D/DC impact device
Separate printer for on-demand test result printing
AAA battery operation with USB charging capability
Built-in software calibration function

Technical Specifications

Hardness Scale	HL, HB, HRB, HRC, HRA, HV, HS
Memory	48-600 groups (impact times: 32-1)
Measuring Range	HLD(170-960)
Accuracy	±4HLD (760±30HLD) error of displayed value
Standard Impact Device	D
Optional Impact Devices	DC/D+15/G/C/DL
Min. Radius of Workpiece	Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece Weight	2-5kg on stable support 0.05-2kg with compact coupling
Min. Workpiece Thickness	5mm (Impact Devices D/DC/DL/D+15) 1mm (Impact Device C) 10mm (Impact Device G)
Min. Thickness of Hardened Surface	0.8mm
Power	Normal AA Battery
Continuous Working Time	approx. 100 hours (no back light off)
Operating Temperature	0-40℃
Relative Humidity	≤90%
Overall Dimensions	1256731mm (main unit)
Weight	0.3kg (main unit)

Data Pro Software

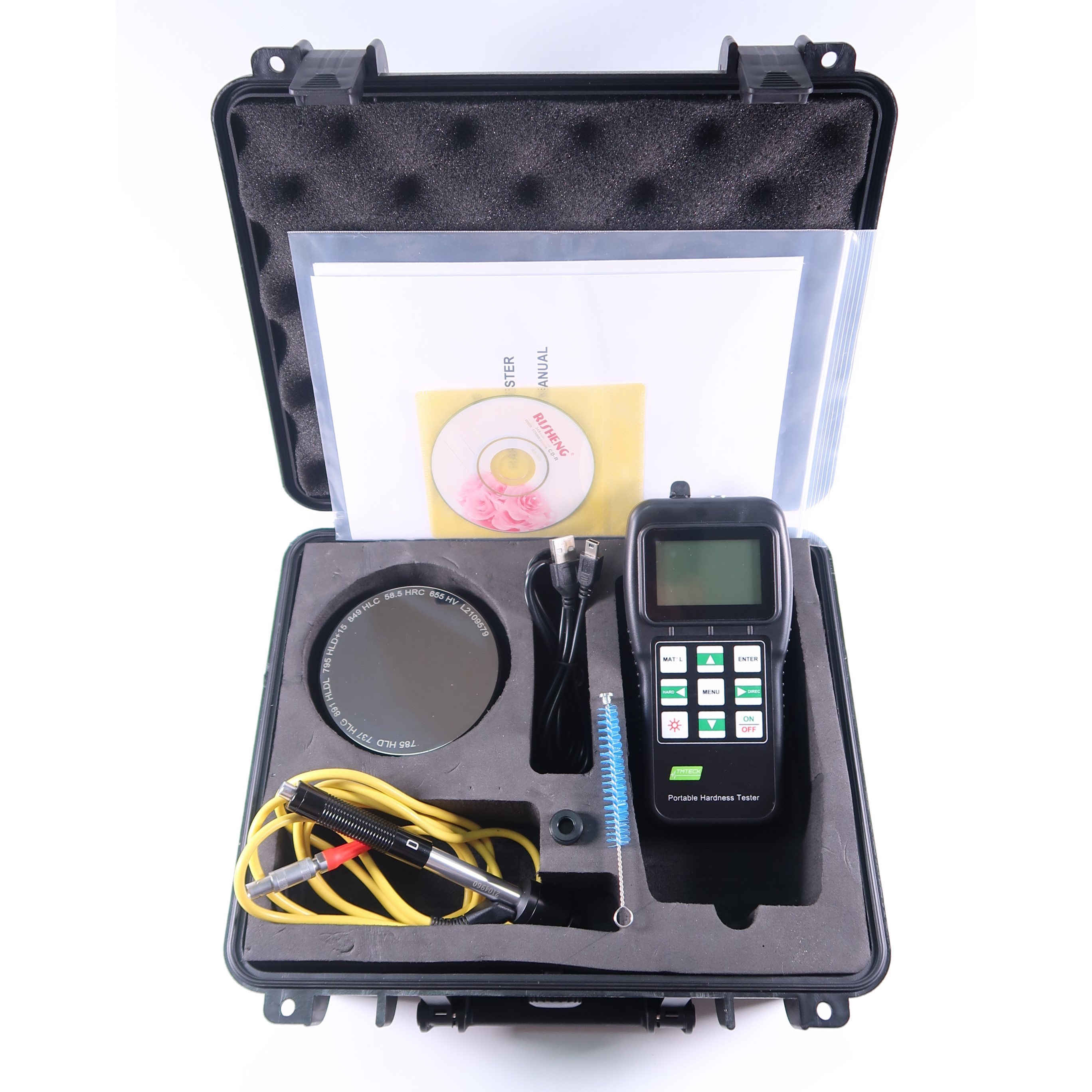

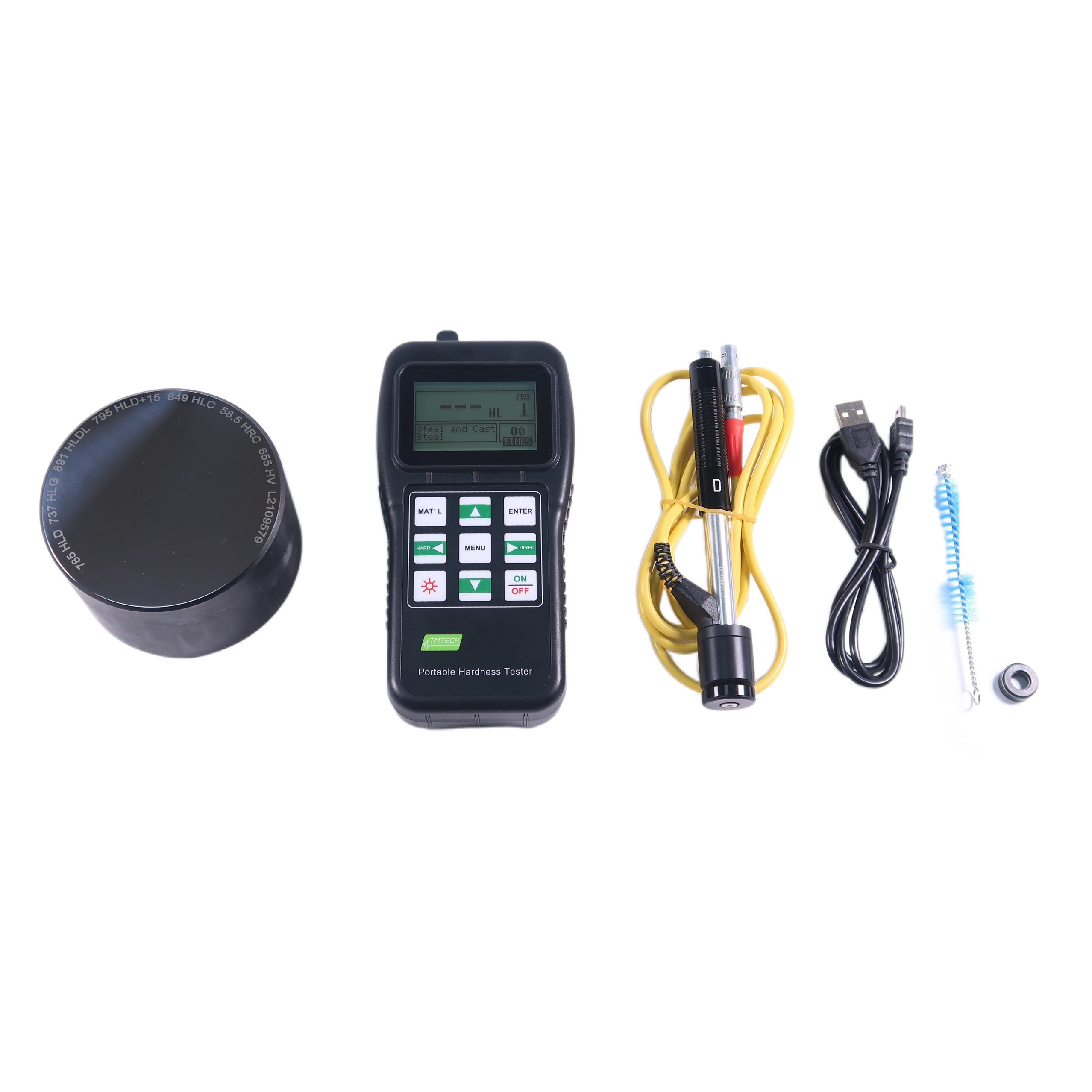

Standard Configuration

Seq	Name	Qty	Remark
1	THL210 Main Unit	1	Standard configuration
2	Impact Device Type D	1	Standard configuration
3	Leeb Standard Test Block	1	Standard configuration
4	Cleaning Brush	1	Standard configuration
5	Supporting Ring	1	Standard configuration
6	Communication Cable	1	Standard configuration
7	Manual	1	Standard configuration
8	Carrying Case	1	Standard configuration
9	THL210 DataPro Software(USB)	1	Standard configuration
10	Mini-printer	1	Optional configuration

Tag:

Place of Origin:	China
Brand Name:	TMTECK
Certification:	EN ISO 16859-2016
Model Number:	THL210

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	50 pieces within one week
