Name: Digital Barcol Hardness Tester with 0~100HBa Testing Range, 35-92HBa Effective Range, and 0.1HBa Resolution for Aluminum Alloys and Plastics
Brand: TMTeck Instrument Co., Ltd
SKU: TM937-1s
Price: Negotiable USD
Availability: InStock

Detail Information

Testing Range:	0~100HBa	Effective Testing Range:	35-92HBa, Equivalently To 25~150HBW
Resolution:	0.1HBa	Power Supply:	3 AAA Battery
Services:	OEM, ODM, OBM	Warranty:	2 Years
Highlight:	0~100HBa Testing Range Digital Barcol Hardness Tester , 35-92HBa Effective Testing Range Portable Hardness Tester , 0.1HBa Resolution Indentation Hardness Tester

Product Description

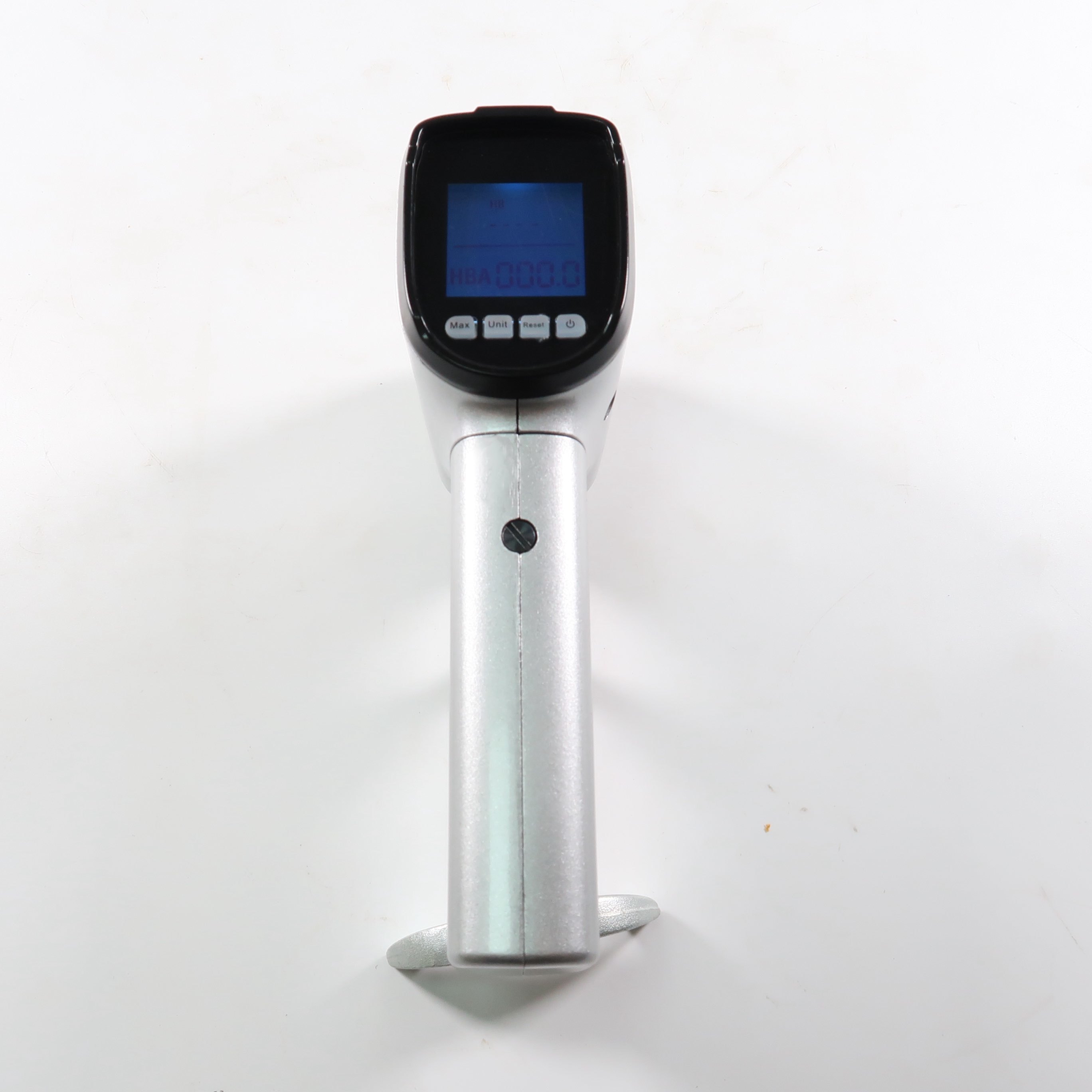

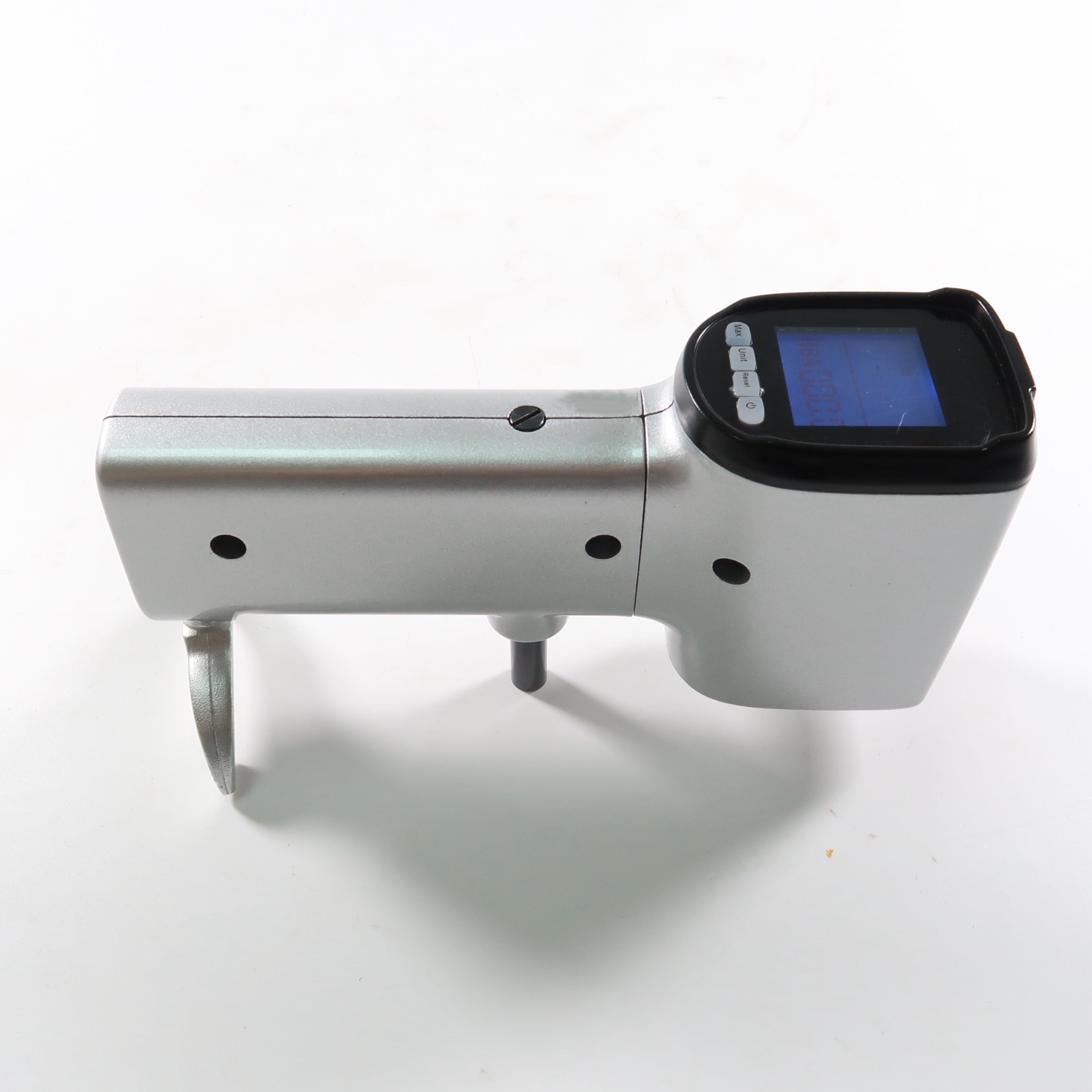

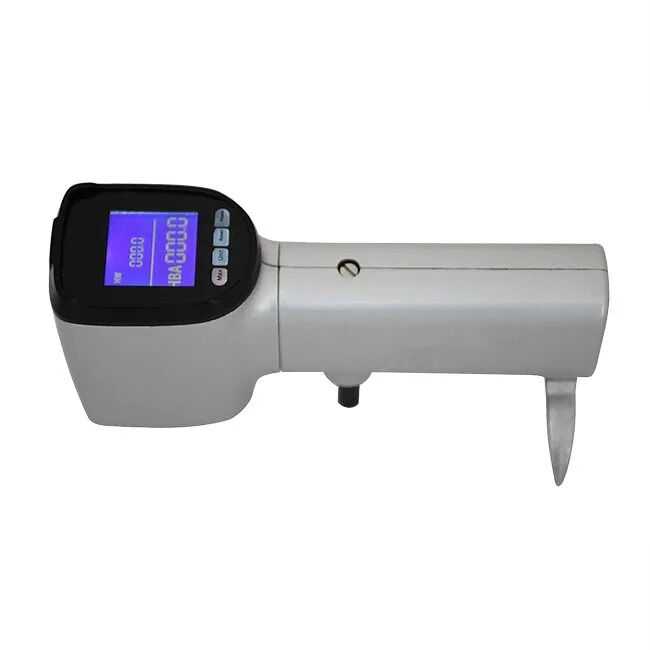

Digital Barcol Hardness Tester TM937-1s

Product Overview

TMTeck Digital Barcol Hardness Tester is a portable indentation hardness tester developed based on Barcol impressor technology, designed for testing the hardness of aluminum alloys, fiber reinforced plastics, and rigid plastics.

Standards Compliance

Complies with standards JJG610-2013 and ASTM B648-10(2015).

Operating Principle

The digital Barcol hardness tester applies a specific shape steel indentor to press into workpiece surfaces through test force generated by a load spring. When the supporting foot contacts the workpiece surface, the instrument measures the extension length of the indentor.

Applications

Designed for testing hardness of aluminum, aluminum alloys, fiber reinforced plastics, and rigid plastics. Features a wide valid testing range equivalent to Brinell hardness 25-150HBW.

Technical Specifications

Testing Range	0~100HBa
Effective Testing Range	35-92HBa (equivalent to 25~150HBW)
Resolution	0.1HBa
Indication Error	Hardness range 42~48HBa: ±2HBa Hardness range 81~88HBa: ±1HBa
Repeatability Error	Hardness range 42~48HBa: ±2HBa Hardness range 81~88HBa: ±1HBa
Power Supply	3 AAA batteries
Net Weight	1kg

Key Features

Single-hand operation with easy portability

Die-casting alloy shell for comfortable handling

Digital display for direct reading

Low-configuration displays Barcol hardness directly

High-configuration converts to HW, HV, HBW, and HR E via conversion button

Easy indenter replacement

Simple full-scale calibration with adjustment button

External calibration mode without shell removal

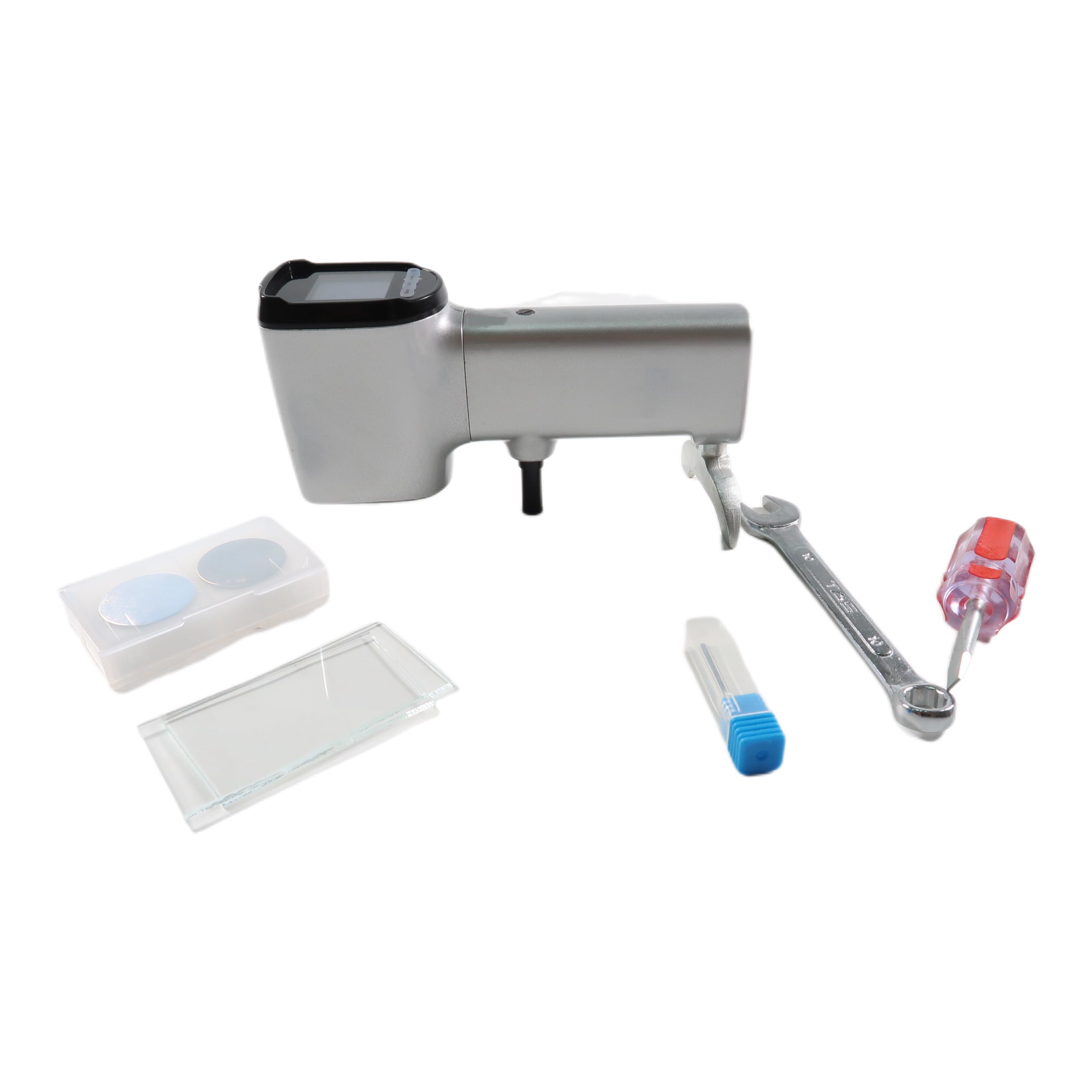

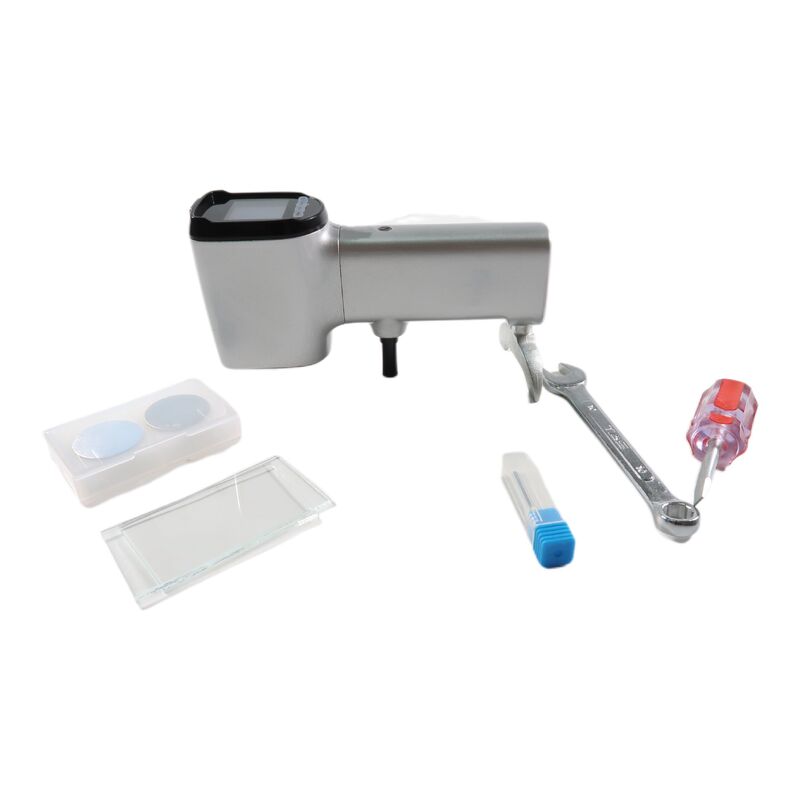

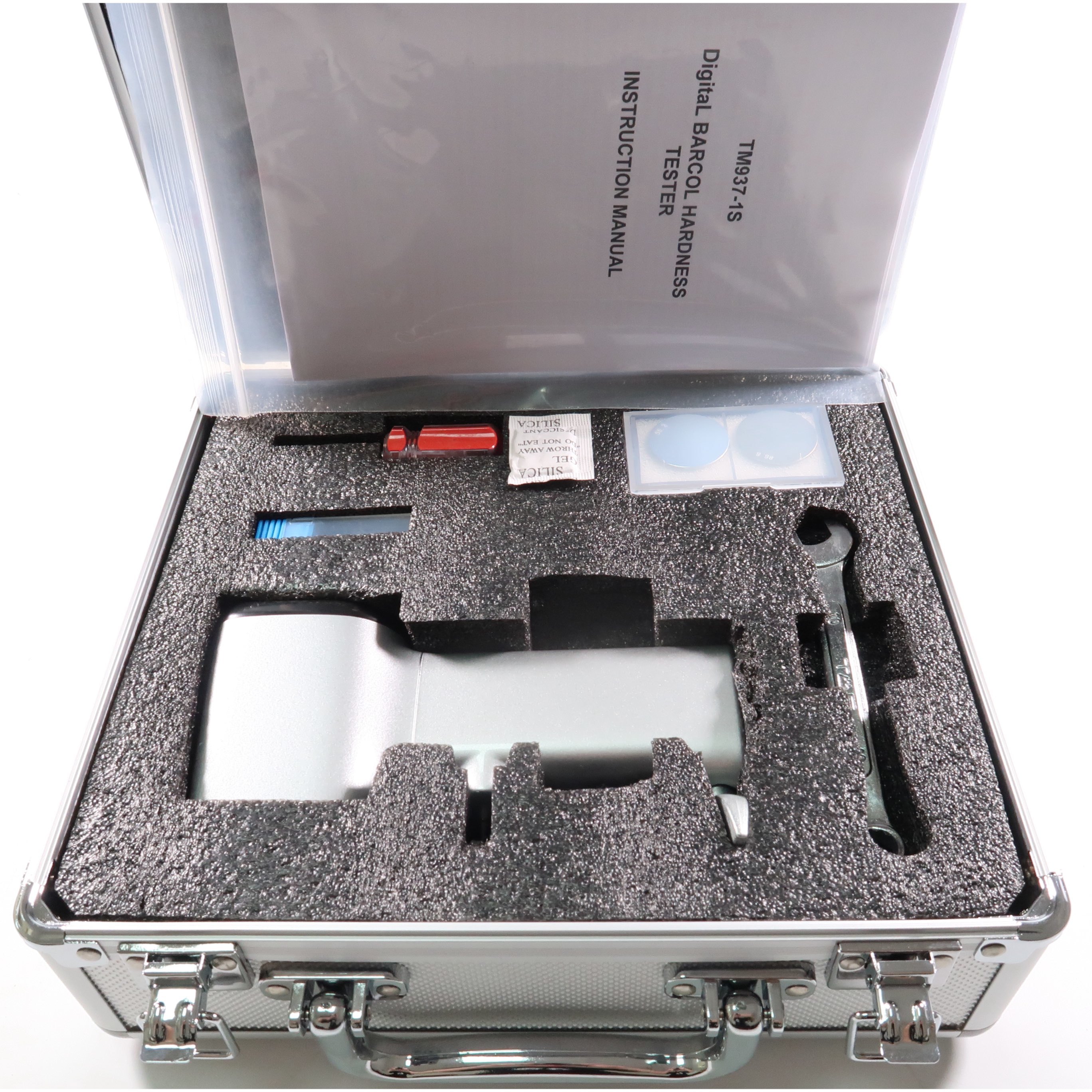

Standard Package Contents

Tester	1 unit
Spare Indenters	2 units
High Value Standard Hardness Block	1 unit
Low Value Standard Hardness Block	1 unit
Calibration Wrench	1 unit
Supporting Foot	1 unit
Carrying Case	1 unit

Tag:

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE
Model Number:	TM937-1s

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	50 pieces within one week
