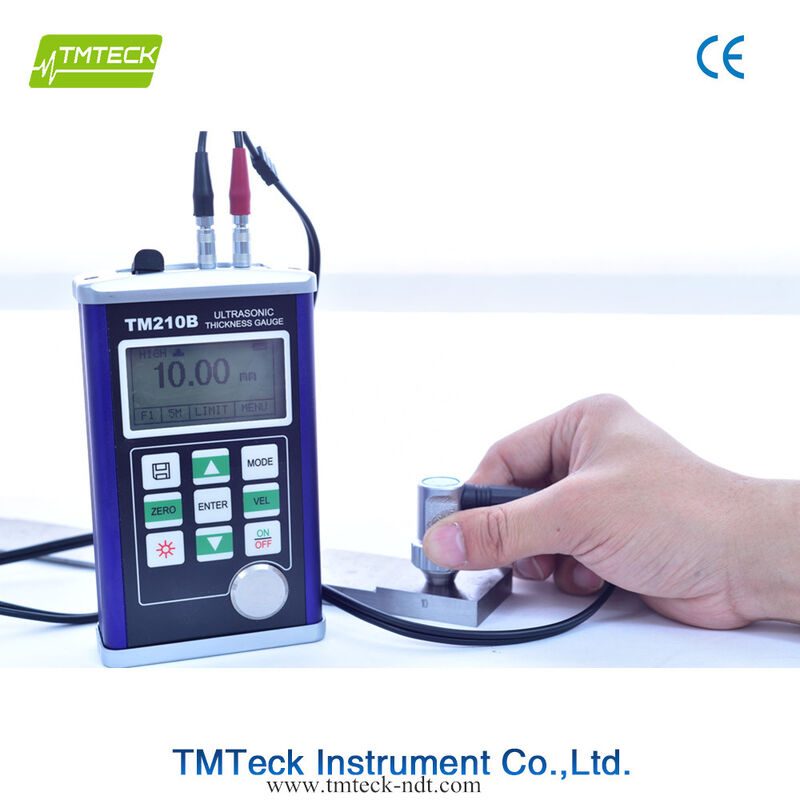

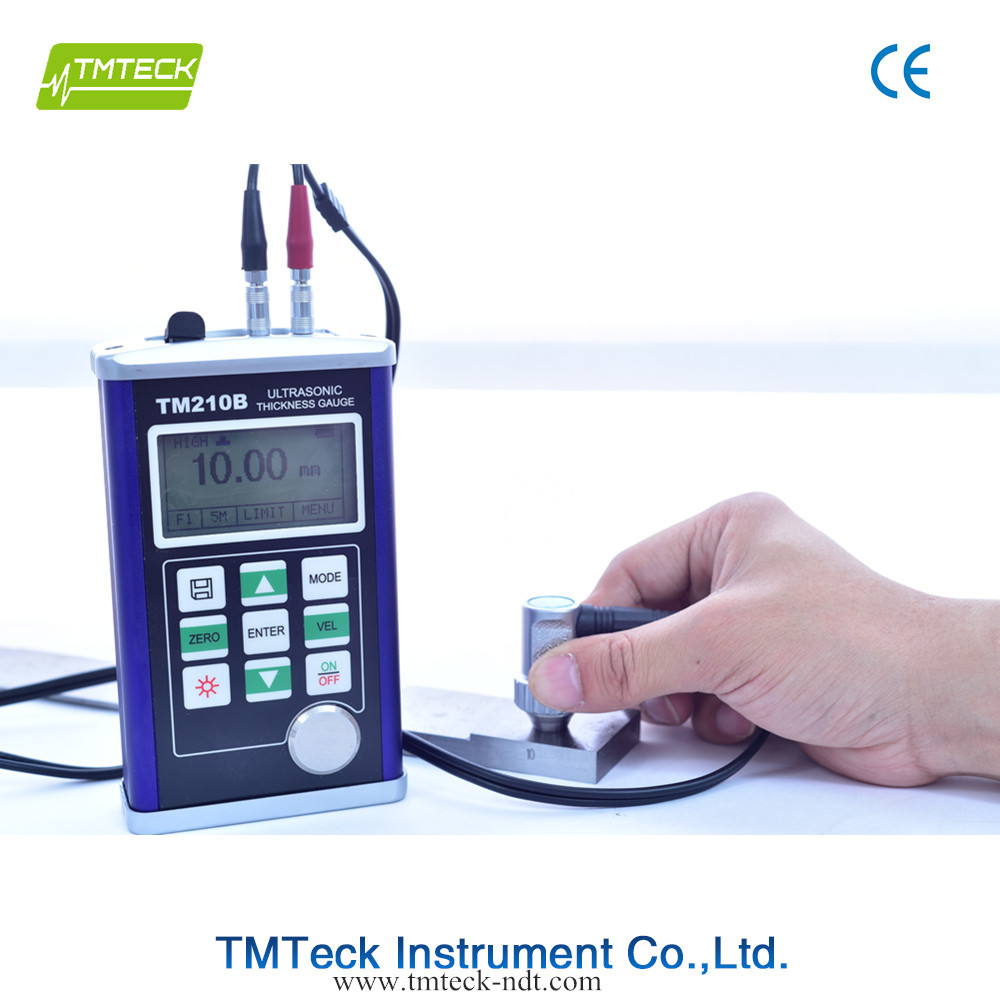

Name: Ultrasonic Thickness Gauge TM210B with 0.75mm~300.0mm Measuring Range 128×64 LCD
Brand: TMTeck Instrument Co., Ltd
SKU: TM210B
Price: Negotiable USD
Availability: InStock

Detail Information

Display:	128×64 LCD With LED Backlight.	Measuring Range:	0.75mm~300.0mm (0.03inch~11.8 Inch)
Sound Velocity:	1000m/s~9999m/s (0.039~0.394in/µs)	Display Resolution:	0.01mm Or 0.1mm (lower Than 100.0mm); 0.1mm (more Than 99.99mm)
Service:	OEM, ODM, OBM	Warranty:	2 Years
Highlight:	0.75mm~300.0mm Measuring Range Ultrasonic Thickness Gauge , 128×64 LCD with LED Backlight Thickness Meter , 2 Years Warranty Ultrasonic Gauge

Product Description

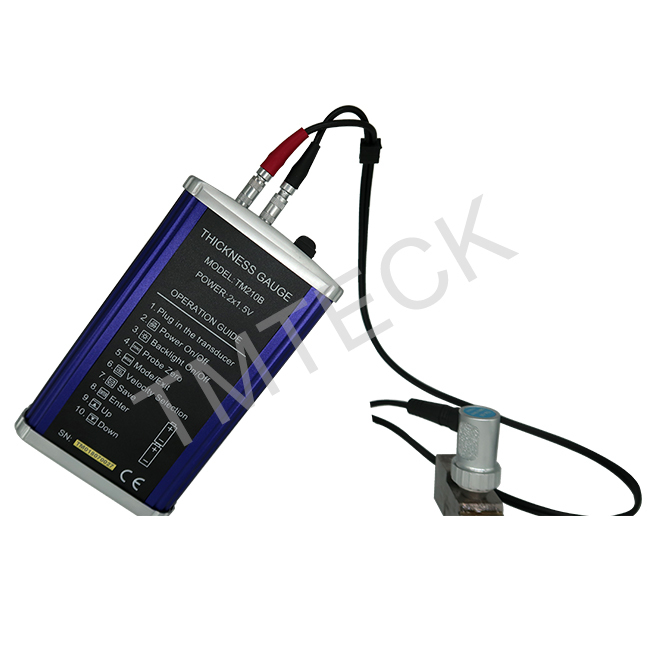

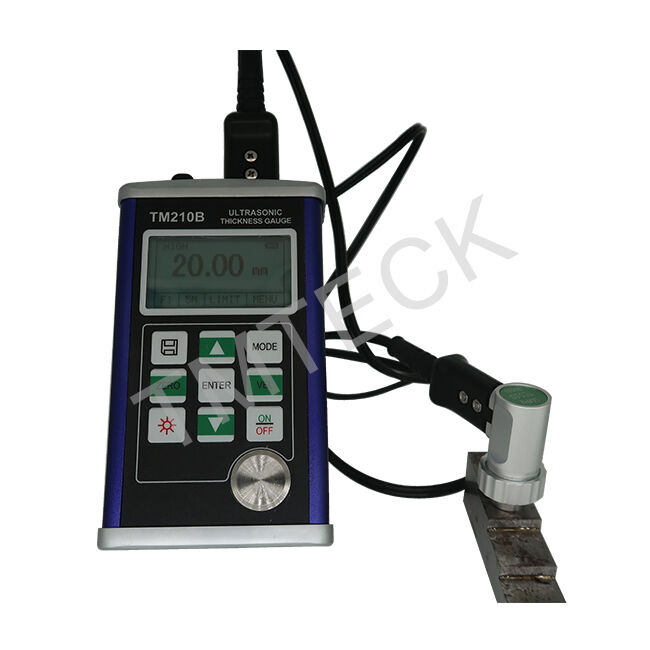

Ultrasonic Thickness Gauge TM210B

Product Overview

The Ultrasonic Thickness Gauge TM210B is a precision instrument designed for accurate thickness measurement across various materials including metals, plastics, ceramics, composites, epoxies, glass, and other ultrasonically conductive materials.

Key Features

Wide material compatibility including metals, plastics, ceramics, composites, epoxies, and glass
Special transducer models available for coarse-grained materials and high-temperature applications
Probe-Zero and Sound-Velocity-Calibration functions
Two-Point Calibration capability
Coupling status indicator for optimal measurement conditions
Battery capacity indicator
Auto sleep and auto power off functions for extended battery life
Optional PC software for memory data processing
Optional thermal mini-printer for data output via USB port
Adjustable gain function for testing cast iron materials

Technical Specifications

Display	128*64 LCD with LED backlight
Measuring Range	0.75mm~300.0mm (0.03inch~11.8 inch)
Sound Velocity	1000m/s~9999m/s (0.039~0.394in/µs)
Display Resolution	0.01mm or 0.1mm (below 100.0mm) 0.1mm (above 99.99mm)
Accuracy	±(0.5%Thickness +0.02)mm (depends on materials and conditions)
Units	Metric/Imperial unit selectable
Power Source	2*1.5V AA batteries (100 hours typical operating time with LED backlight off)
Communication	USB serial port
Dimensions	150mm74mm32mm
Weight	238g

Additional Performance: Four measurements per second for single point measurement. Memory capacity for up to 5 files (100 values per file).

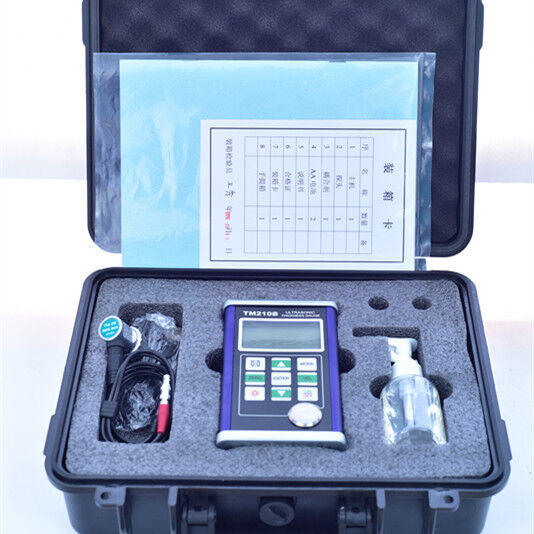

Standard Configuration

Item	Quantity	Notes
Main body	1
Transducer	1	Model: TM-08
Couplant	1
Instrument Case	1
Operating Manual	1
Alkaline battery	2	AA size
DataPro Software	1
Communication Cable	1

Optional Configuration

Transducer: N02
Transducer: N07
Transducer: HT5
Mini thermal printer
Print cable

Available Probes

Model	Frequency (MHz)	Diameter Min.	Measuring Range	Lower Limit	Description
TM-12	2	14	3.0mm-300.0mm (in steel)	20	For thick, highly attenuating, or highly scattering materials
TM-08	5	10	1.2mm-230.0mm (in steel)	￠20mm*3.0mm	Normal measurement
TM-08/90	5	10	1.2mm-230.0mm (in steel)	￠20mm*3.0mm	Normal measurement
TM-06	7	6	0.75mm-80.0mm (in steel)	￠15mm*2.0mm	For thin pipe or small curvature pipe wall thickness measurement
HT-5	5	2	3mm-200mm (in steel)	30	For high temperature measurement (up to 300℃)
HT5-2	5	2	3mm-200mm (in steel)	30	For high temperature measurement (up to 550℃)
