TM251D Through Paint or Coating Ultrasonic Thickness Gauge with 500 Test Values Memory and ±0.025mm Tolerance

Basic Information

Place of Origin:	China
Brand Name:	TMTeck
Certification:	CE
Model Number:	TM251D

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Carton; 301525cm; 2.5KG
Delivery Time:	3-5 working days
Payment Terms:	T/T,Western Union,PayPal
Supply Ability:	50 pieces within one week

Get Best Price Contact Now

Detail Information

Display Resolution:	0.1mm/0.01mm Or 0.01inch/0.001inch	Tolerance:	±0.025mm In Steel
Display Type:	4 Digital LCD With Advanced Backlight	Memory:	500 Test Values
Power:	2 Pcs. 1.5v AA Batteries	DimensionI:	149mm×73mm×32mm
Highlight:	Through Paint or Coating Ultrasonic Thickness Gauge , 500 Test Values Memory Thickness Meter , ±0.025mm Tolerance Thickness Measurement Device

Product Description

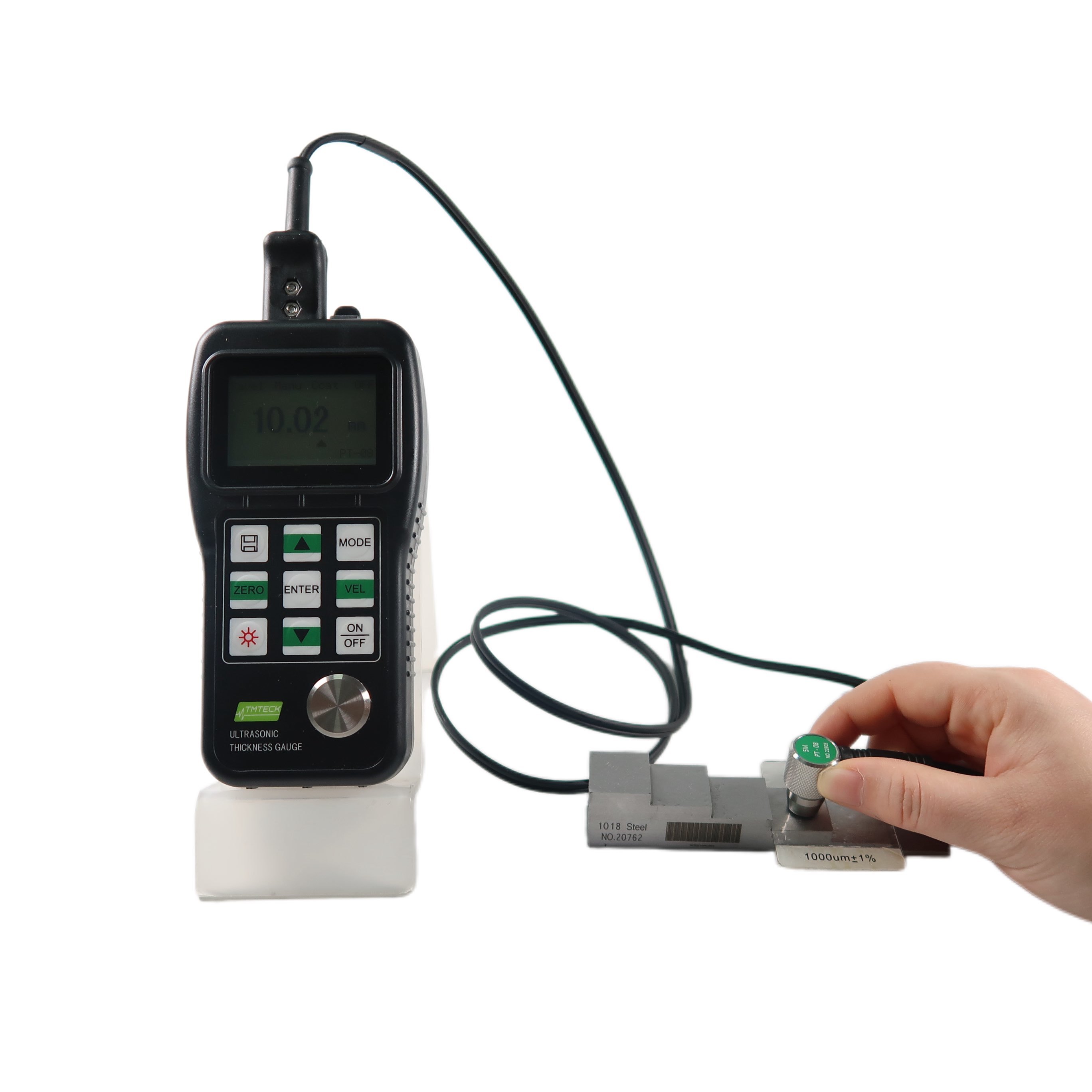

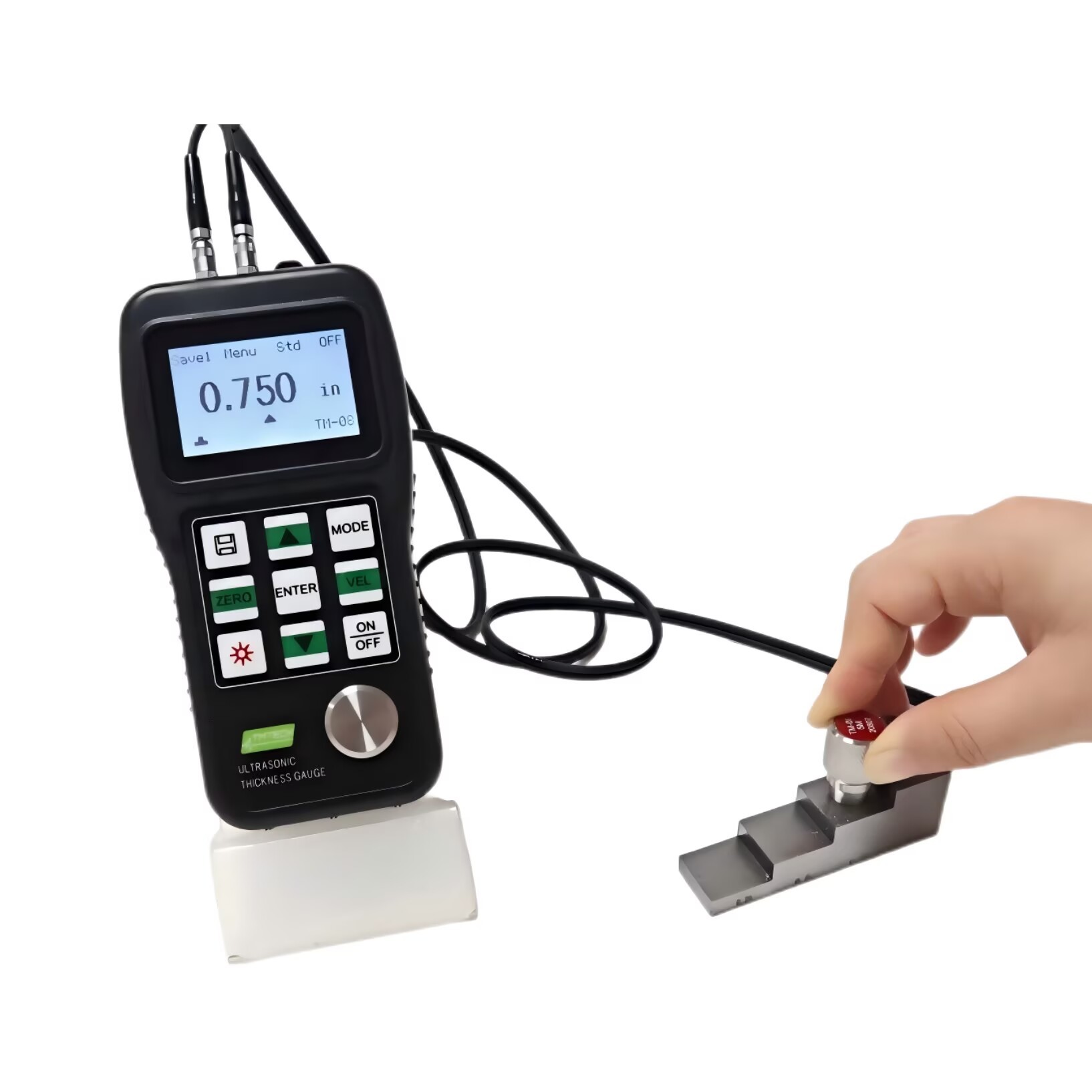

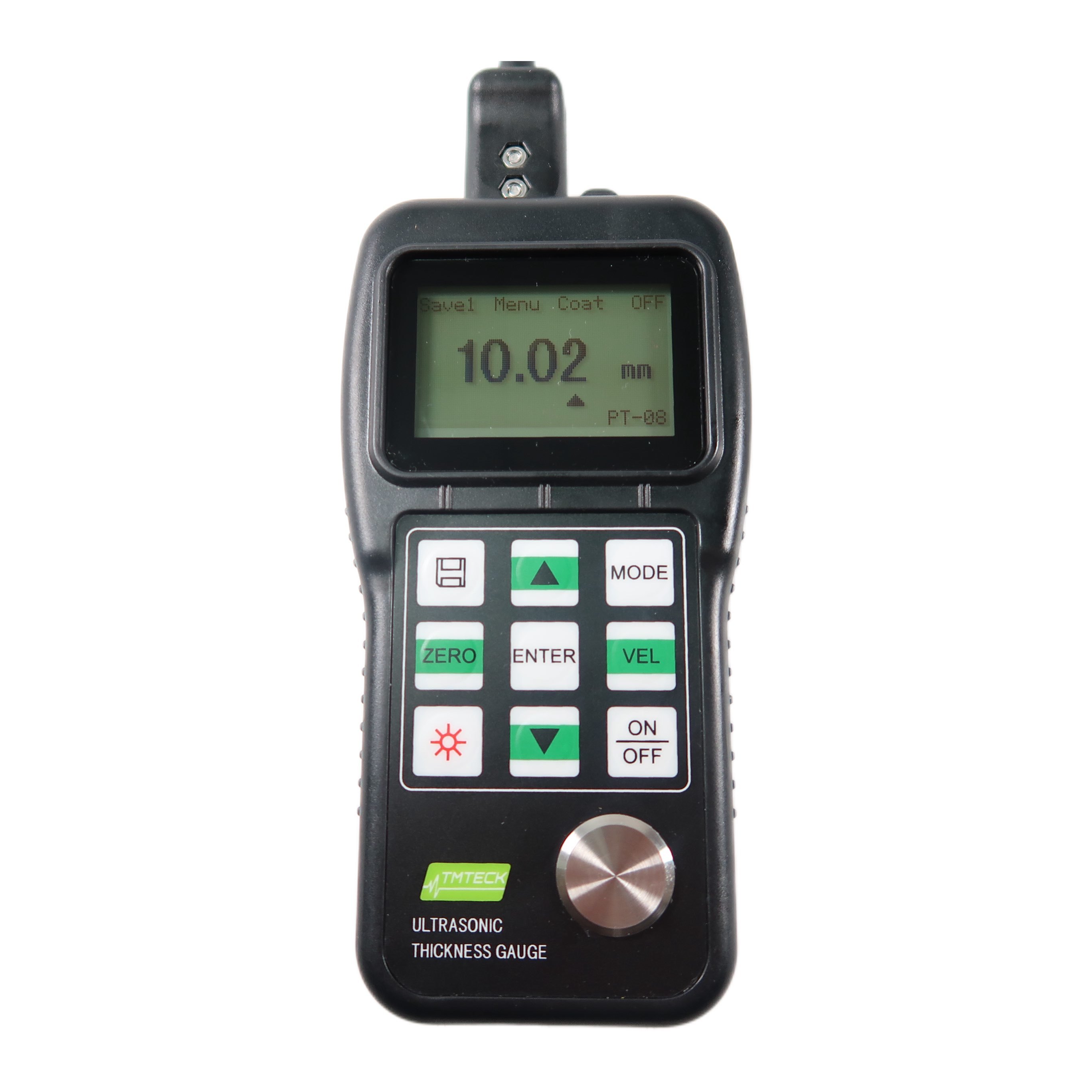

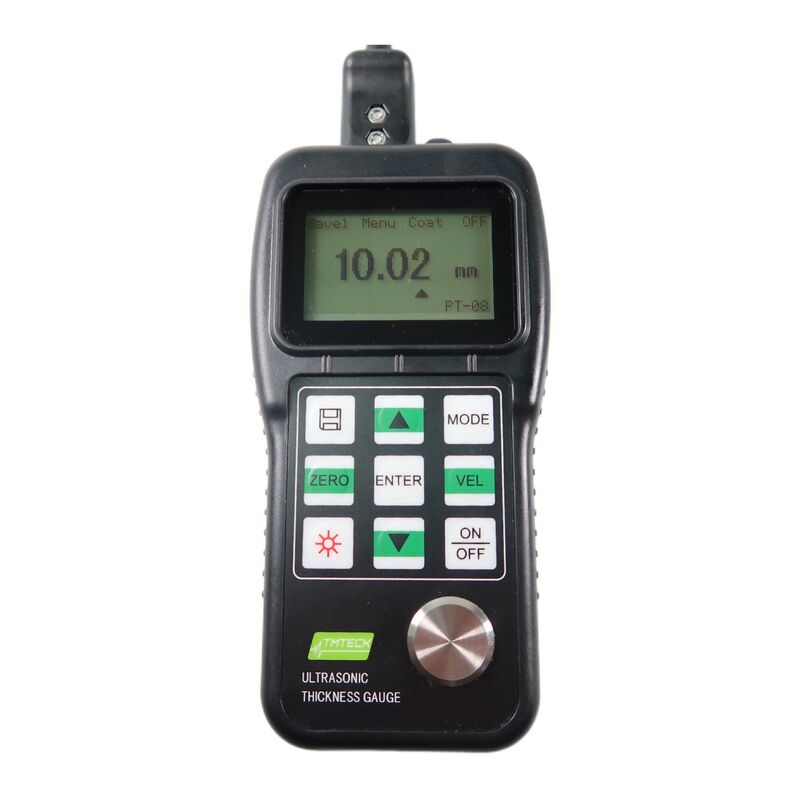

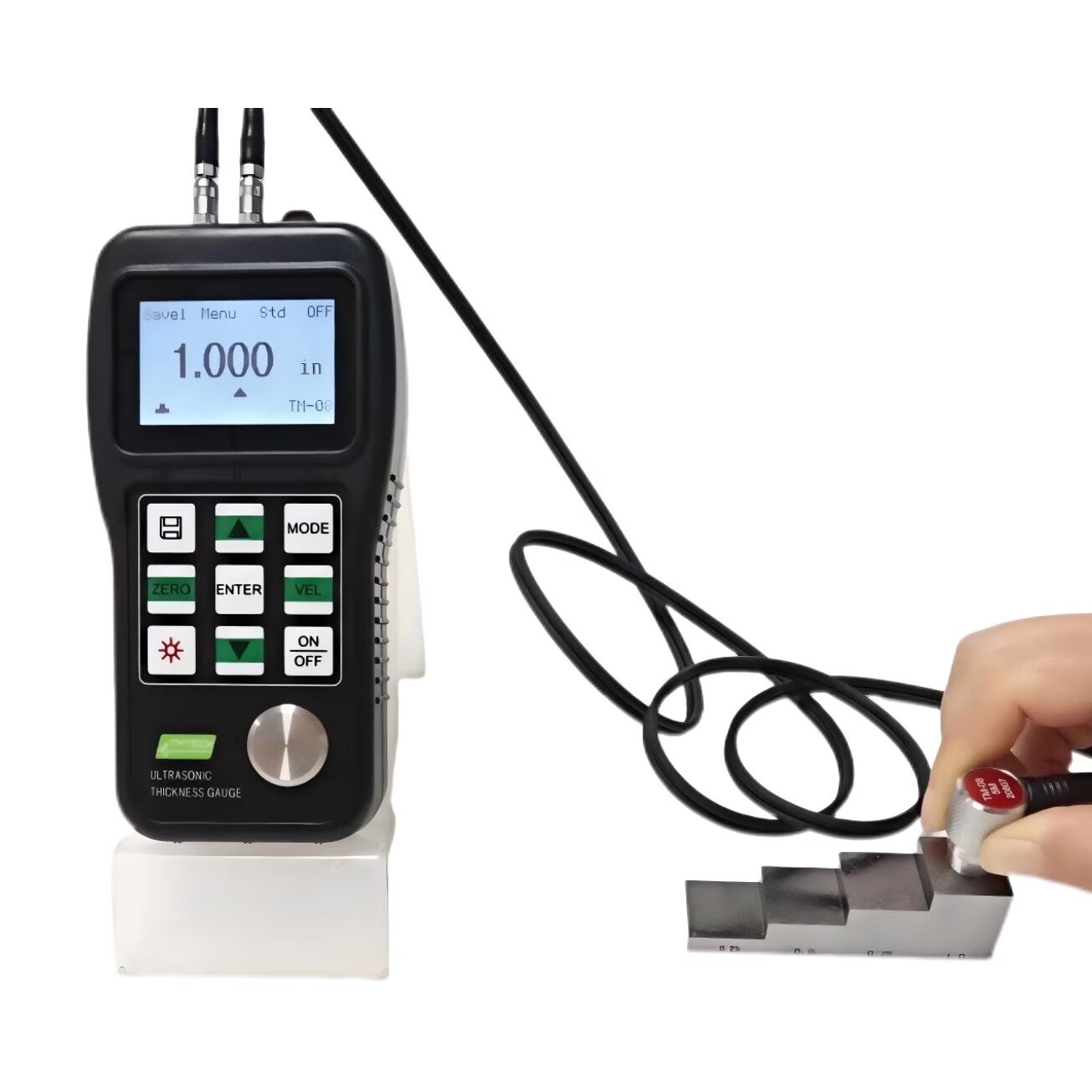

TM251D Through Paint Or Coating Ultrasonic Thickness Gauge

The TM251D Through Paint or Coating Ultrasonic Thickness Gauge is a precision instrument designed for accurate thickness measurements through various surface coatings.

Features

Automatic self-calibration
Couplant indicator
Automatic power off device
High-low limit alarm
LCD brightness adjust
Through coating capability
Low battery indicator

Technical Specifications

Specification	TM251D
Measuring Range (Steel)	Standard: 0.8mm - 250mm (depending on probes) Through coating: 3mm - 18mm (depending on probes)
Display Resolution	0.1mm/0.01mm or 0.01inch/0.001inch
Tolerance	±0.025mm in steel
Velocity Range	1000-9999 m/s (0.0393-0.3936 inch/μs)
Display Type	4-digit LCD with advanced backlight
Memory	500 test values
Power	2 AA-size 1.5V batteries
Outside Dimension	149mm × 73mm × 32mm
Weight	160g

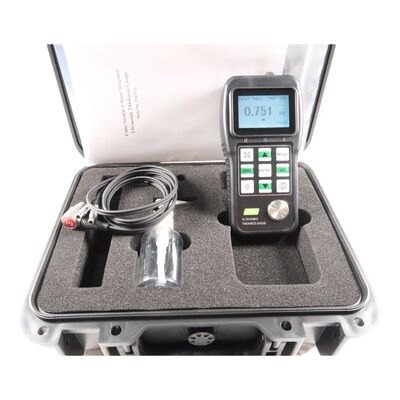

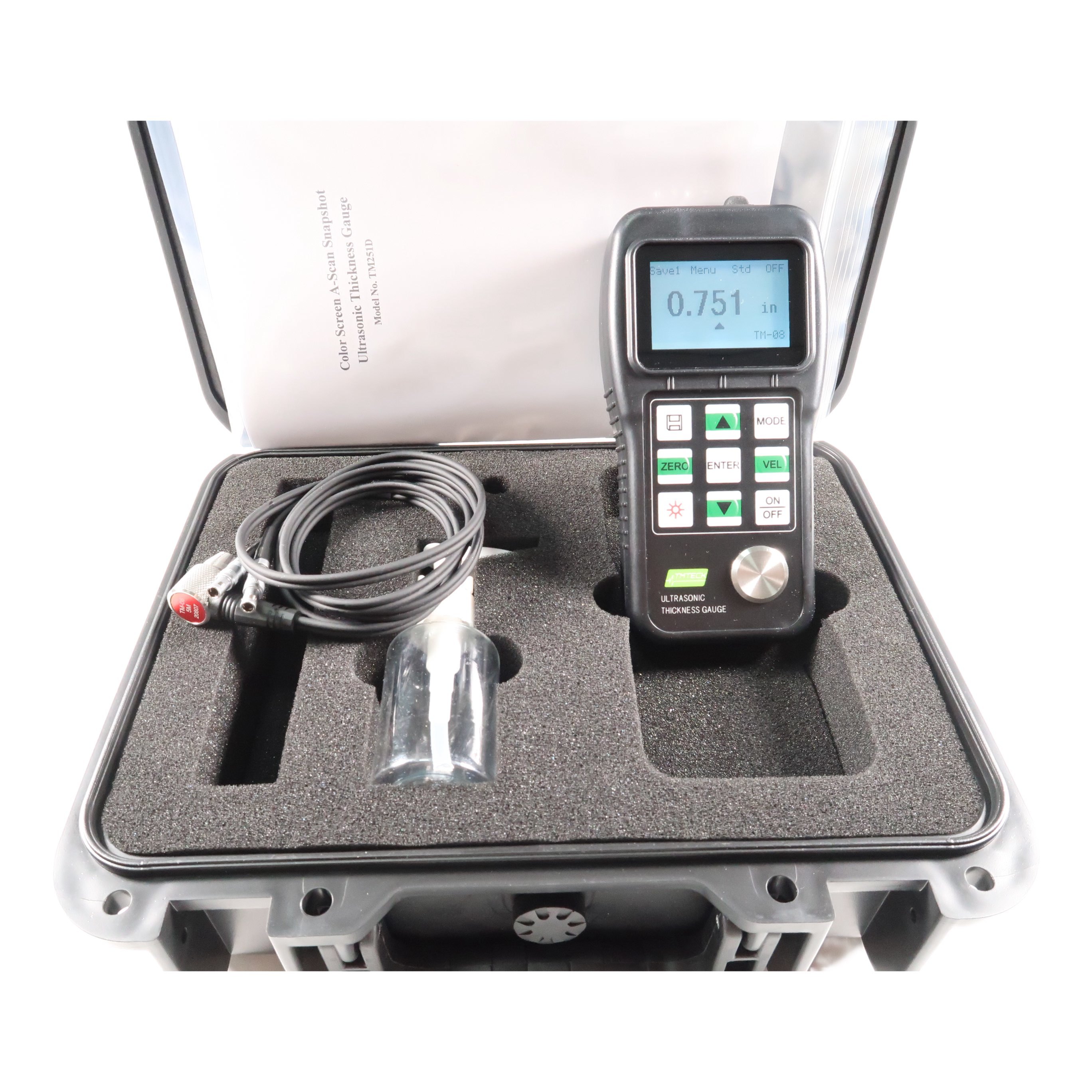

Standard Configuration

Main unit with through-coating mode
Standard probe TM-08
Couplant bottle
Two AA-size 1.5V batteries
Operation manual
Carrying case
