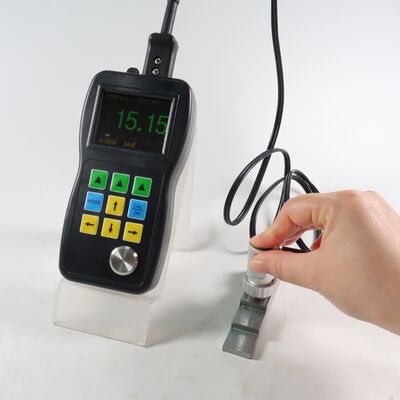

Name: TM282 Series Ultrasonic Thickness Gauge with A&B Scan Through Coating and Software for Precise Thickness Measurement
Brand: TMTeck Instrument Co., Ltd
SKU: TM282
Price: Negotiable USD
Availability: InStock

Detail Information

Rectify Mode:	RF+, RF-, HALF+, HALF-, FULL	Material Velocity Range:	500 To 9999m/s(0.0197 To 0.3939 In/μs)
Operating Temperature:	-10℃ To +50℃(+10°F To +12°F )	Size:	158mm × 76mm × 37mm (H × W × D)
Units:	Inch Or Millimeter	Service:	OEM, ODM, OBM
Highlight:	A&B Scan Ultrasonic Thickness Gauge , Through Coating Thickness Meter , Software Thickness Measurement Device

Product Description

TM282 Series Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software

Professional Ultrasonic Thickness Measurement Solution

TM282 Color Screen A/B-Scan Ultrasonic Thickness Gauge is professionally designed for solving various difficult thickness measurement applications in industrial settings.

Key Features

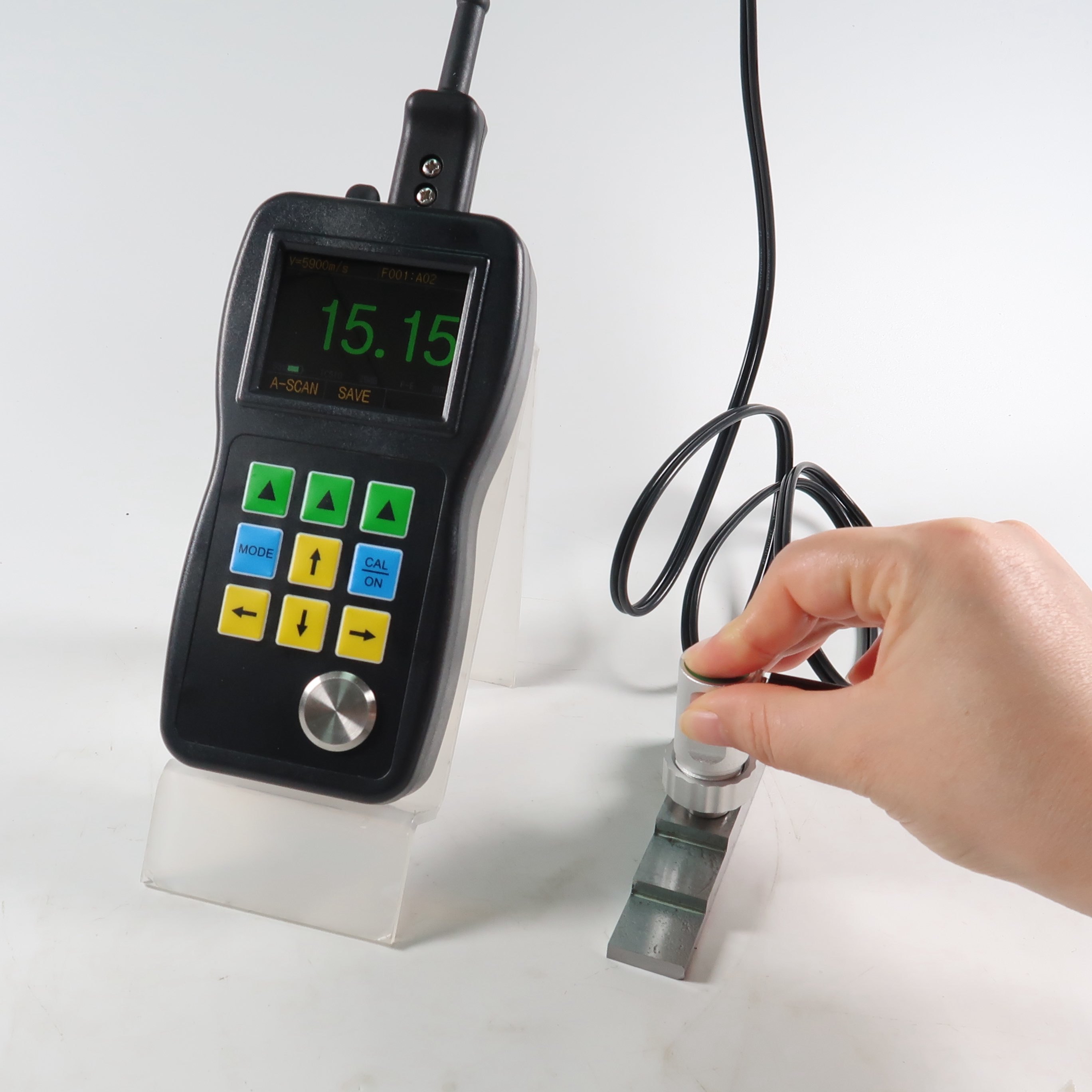

Live Color A-Scan

Direct visualization of ultrasonic waveform (A-scan) in color on screen. Essential for verifying testing result accuracy and troubleshooting measurement issues. Adjustable GAIN, BLACKING, and GATE parameters for optimal readings.

Live Color B-Scan

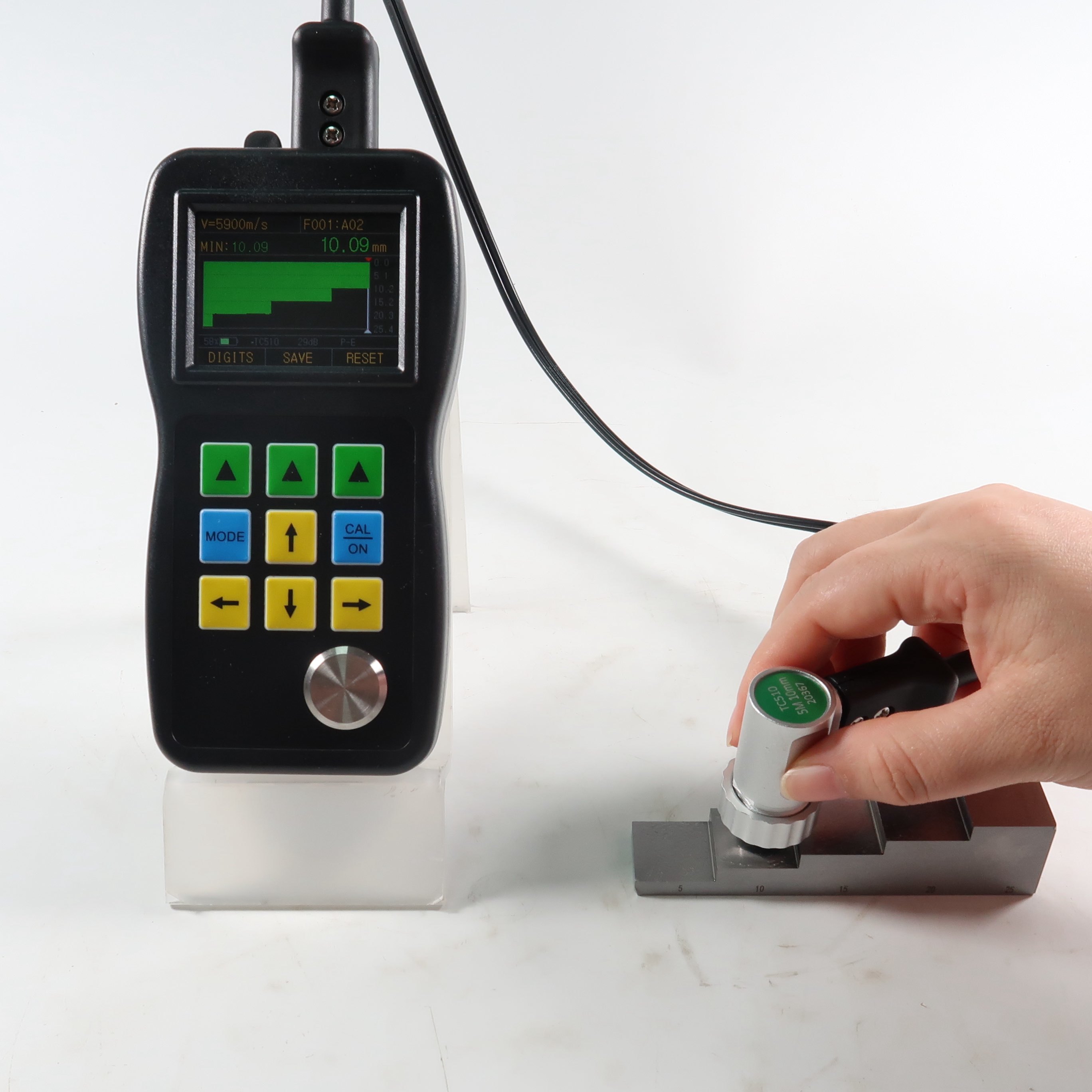

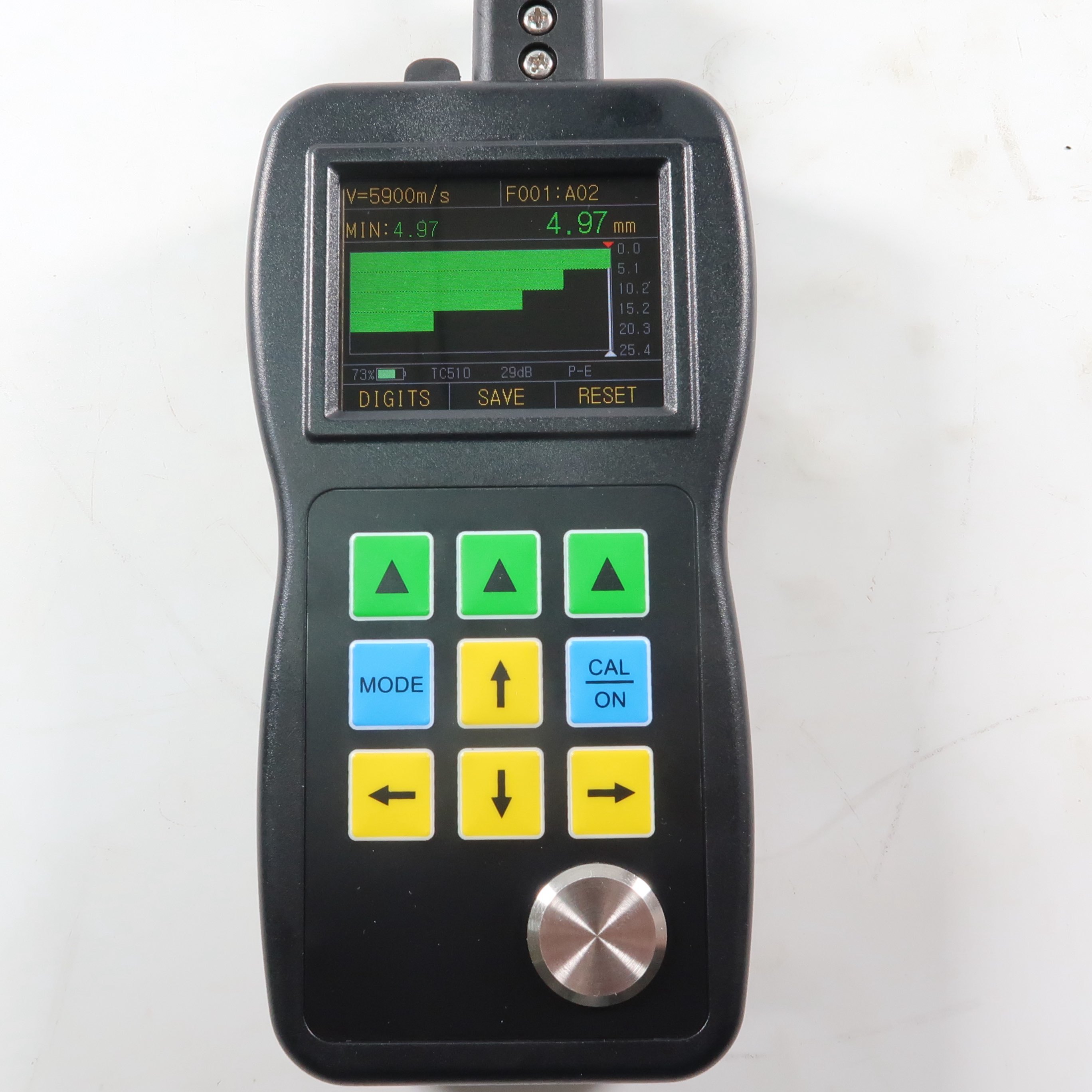

Time-based B-scan function displays cross-sectional profile of workpiece. Automatically captures minimum values with red triangle indicators. Point-to-point thickness measurement capability across the B-scan image.

Through Coating Function

Eliminates the need for coating removal. Achieved by measuring two continuous bottom surfaces of the substrate with significant advantages:

No zero calibration required
High stability - unaffected by probe pressure, coupling layer thickness, or surface dust
Zero drift prevention

Power-Cutting Function

Dedicated power-cutting button extends battery life by conserving energy during extended periods of non-use.

Advanced Functionality

Difference/Reduction Rate: Displays variance from normal values and calculates thickness reduction percentage
Information Display: LOS, min, max, large reading, velocity, zero, calibration, units, freeze, battery life, gain levels, echo symbols
Max./Min. Capture: Simultaneous display of current, minimum, and maximum thickness values
Alarm Mode: Dynamic color changes for thickness readings during alarm conditions
Update Rate: Selectable 4Hz, 8Hz, and 16Hz for various application needs
Multi-Language Support: Chinese, English, Spanish, German
Echo to Echo: Measures metal thickness only, ignoring paint and coatings
Data Logger: 99,999 thickness data points with ID in linear or grid files (400 files capacity)
Output: USB 2.0 full speed connector with DataView report software
Display: 2.4" color OLED, 320 × 240 pixels, 10,000:1 contrast ratio
Dimensions: 156mm (L) × 76mm (W) × 38mm (H)
Weight: 285g
Operating Temperature: -10°C to 50°C

Standard TC510 Probe

High-performance piezoelectric ceramic chip with integrated metal die-casting shell. Features practical probe and cable separation design for maximum durability and performance.

TM282 Series Comparison

Feature	TM282	TM282D	TM282DL
Color Display	✓	✓	✓
Live A-Scan	✓	✓	✓
Time-based B-Scan	✓	✓	✓
Control of Gain and Gate	✓	✓	✓
Blanking	✓	✓	✓
Thru-paint & Coatings	×	✓	✓
Data Logger	×	×	✓
DataView Software	×	×	✓

TM282DL Technical Specifications

Display Type	2.4" color OLED, 320×240 pixels, display contrast 10,000:1
Operating Principle	Pulse echo with dual element transducers
Measuring Range	0.50mm to 508mm (0.02" to 20.00"), depending on material, probe and surface condition; E-E Mode: 3-50mm under condition
Measuring Resolution	Selectable 0.01mm, 0.1mm (selectable 0.001", 0.01")
Units	Inch or Millimeter
Rectify Mode	RF+, RF-, HALF+, HALF-, FULL
Display Mode	Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction	Automatic
Update Rate	Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range	500 to 9999m/s (0.0197 to 0.3939 in/μs)
Languages	English, French, German, Spanish, Chinese
Alarm Settings	Minimum and Maximum alarms. Range of 0.25mm to 508mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements	2 AA size batteries
Operating Time	Approximately 40 hours
Instrument Shut-off	Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature	-10℃ to +50℃ (+10°F to +12°F)
Size	158mm × 76mm × 37mm (H × W × D)
Weight	285g including batteries

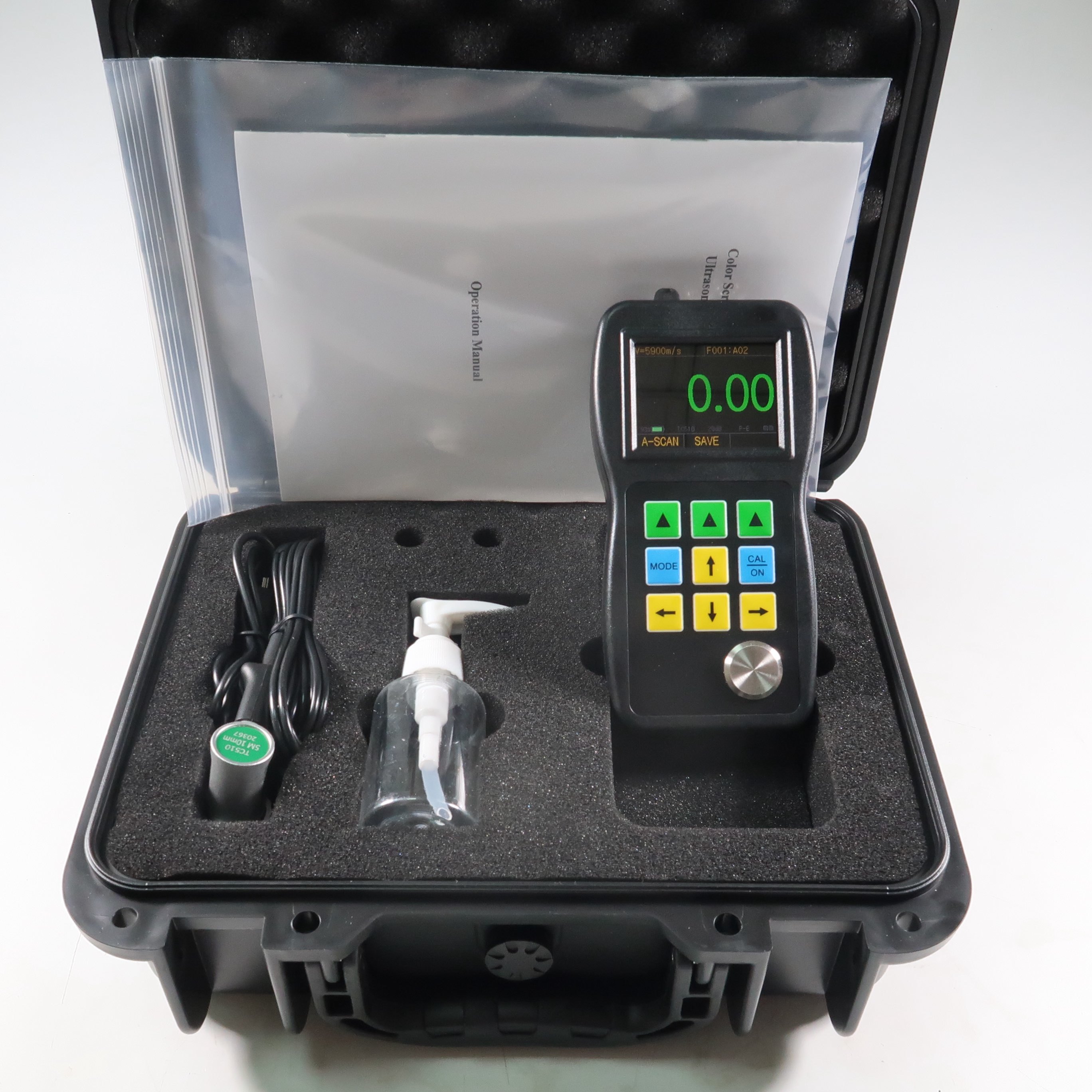

Standard Delivery Contents - TM282DL

Component	Quantity
Main body	1
Probe	1
Battery	1
Couplant	1
Carrying Case	1
Operating Manual	1
USB Cable	1
Software	1

Tag:

Place of Origin:	China
Brand Name:	TMTeck
Certification:	CE
Model Number:	TM282

Minimum Order Quantity:	1pc
Price:	Negotiation
Packaging Details:	Carton; 301525cm; 2.5kg
Delivery Time:	3-5 working days
Payment Terms:	T/T,Western Union,paypal
Supply Ability:	100PCS/Two weeks
