TME390 Electromagnetic Acoustic Thickness Gauge with 0.01mm Accuracy for Non-Conductive Coating Measurement and 4mm Max Lift-Off Distance

Basic Information
Place of Origin: China
Brand Name: TMTECK
Certification: CE
Model Number: TME390
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 50 pieces within one week
Detail Information
Metal Thickness Range: 1.5 To 500 Mm Accuracy: 0.01mm
Measurement Error: ≤0.08 Mm Max Lift-off Distance: 4 Mm
Non-conductive Coating Range: 0-5mm Speed Of Sound Range: 1000 To 9999 M/s, Step Size Of 1 M/s
Highlight:

0.01mm Accuracy Electromagnetic Acoustic Thickness Gauge

,

4mm Max Lift-Off Distance Ultrasonic Thickness Gauge

,

Non-Conductive Coating Measurement Thickness Measurement Device


Product Description

TME390 Electromagnetic Acoustic Thickness Gauge
Product Introduction

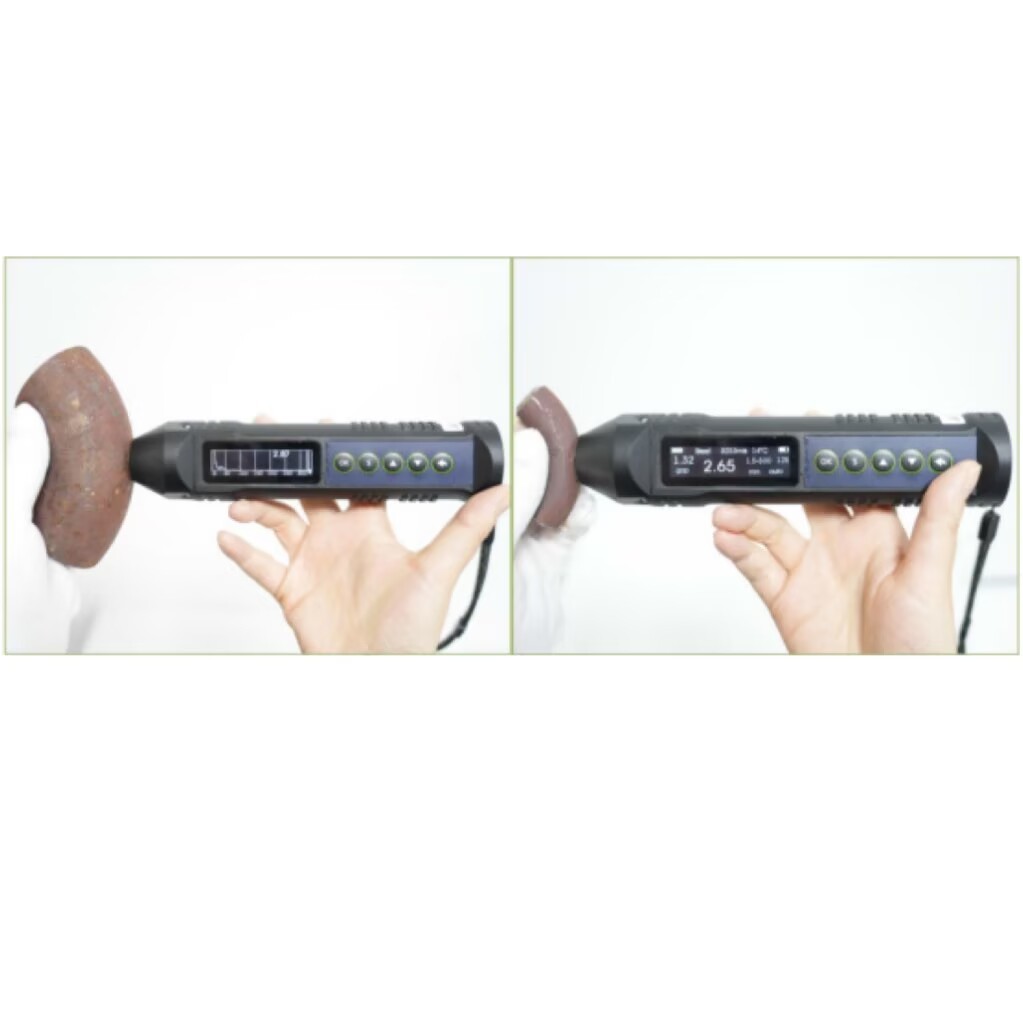

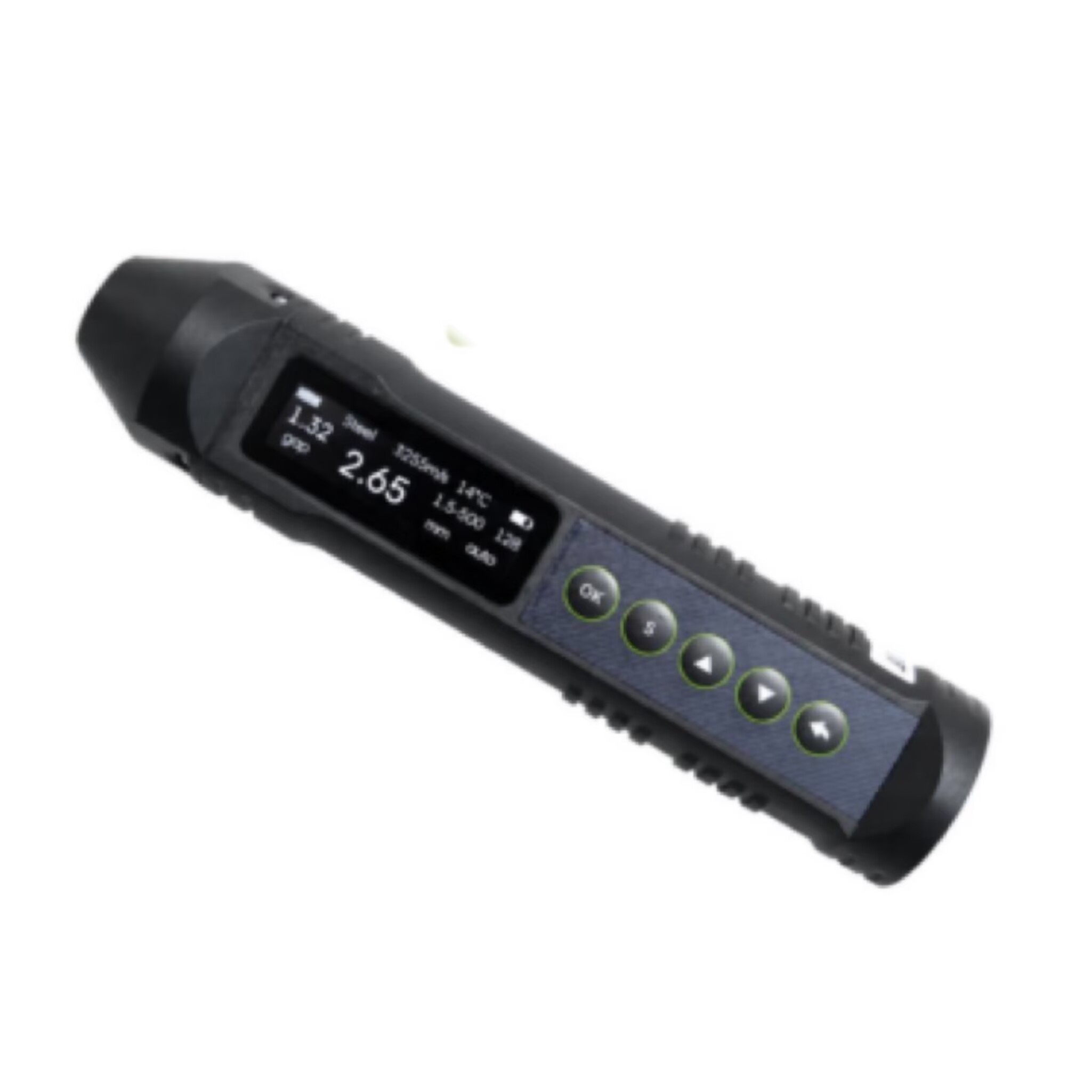

TME390 Electromagnetic Acoustic Thickness Gauge device overview

The TME390 electromagnetic acoustic thickness gauge is specifically designed for measuring products made of steel, aluminum, and other metals, such as steel pipes, rolled plates, and bars. It operates without the need for pre-cleaning the surface or using couplant, and can penetrate coatings up to 4mm thick. This device can also measure the thickness of non-conductive coatings on metals.

Technical Specifications
TME390 technical specifications diagram
Advanced Inspection Capabilities
A/B/C-Scan for Comprehensive Inspection
TME390 measurement capabilities illustration


3D Mode for Enhanced VisualizationA/B/C-Scan inspection interface and results
