Name: TME580 EMAT Ultrasonic Thickness Gauge with 0.01mm Accuracy 800C High Temperature Sensor and 16Hz Measurement Rate
Brand: TMTeck Instrument Co., Ltd
SKU: TME580
Price: Negotiable USD
Availability: InStock

Detail Information

Ambient Operating Temperature Range:	-20℃~500℃	Continuous Operating Time:	8 Hours
Sound Velocity Adjustment Range:	1000 ~20000m/s, With 1m/s Step	Maximum Measurement Rate:	16 Times Per Second
Overall Dimensions:	232×135×44mm	Measurement Accuracy:	0.01mm
Highlight:	0.01mm Measurement Accuracy EMAT Thickness Gauge , 800C High Temperature Sensor Ultrasonic Thickness Gauge , 16 Times Per Second Measurement Rate High Temperature Thickness Gauge

Product Description

TME580 EMAT Thickness Gauge

Product Overview

The TME580 Electromagnetic Acoustic High Temperature Thickness Gauge is engineered for precise thickness measurement of steel tubes, rolled plates, bars, and other products manufactured from steel, aluminum, and various metals.

Key Features

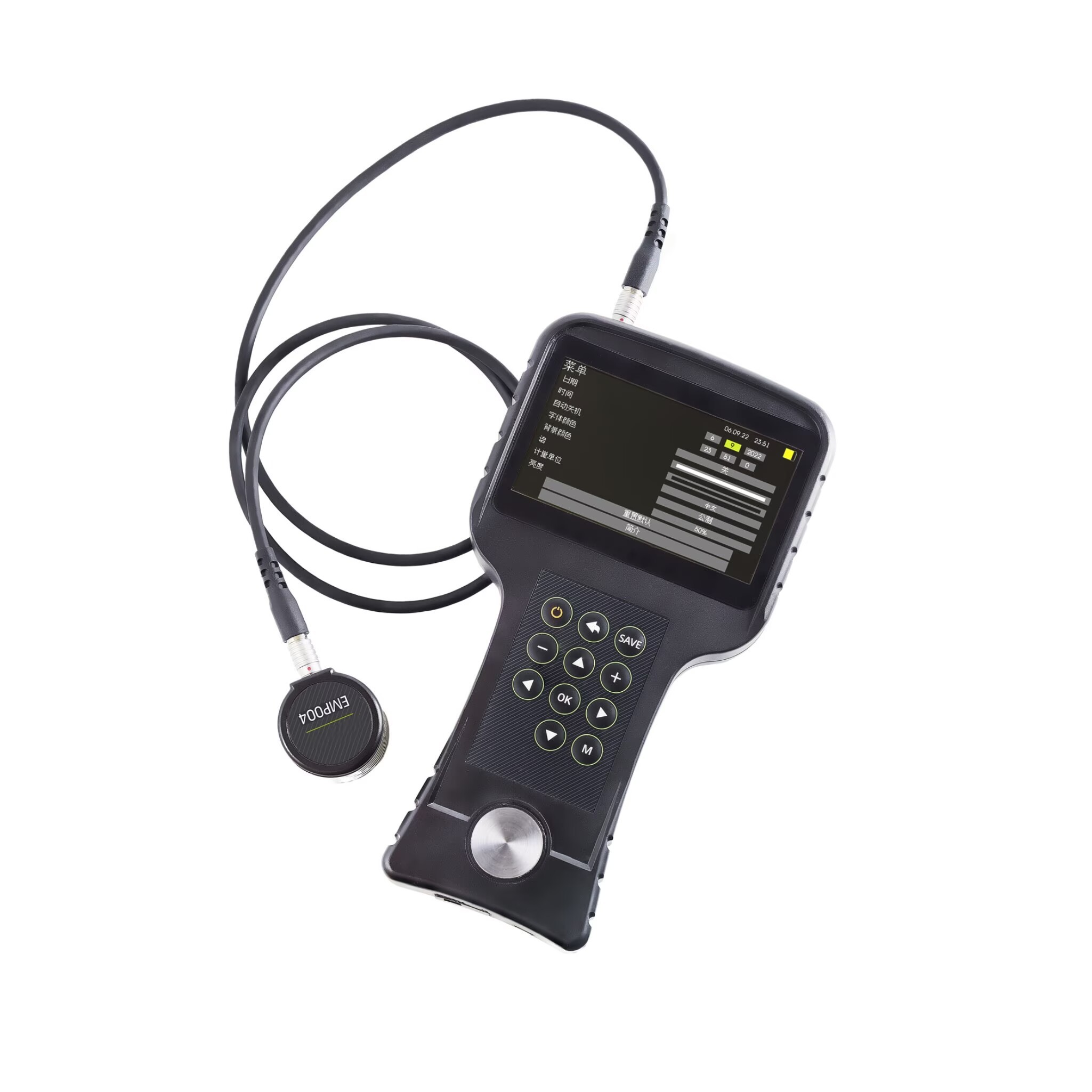

Compatible with electromagnetic ultrasonic sensors with up to 6mm gap tolerance
Operates through dirt, rust, salt deposits, and non-conductive coatings (paint, varnish, enamel, plastic, etc.)

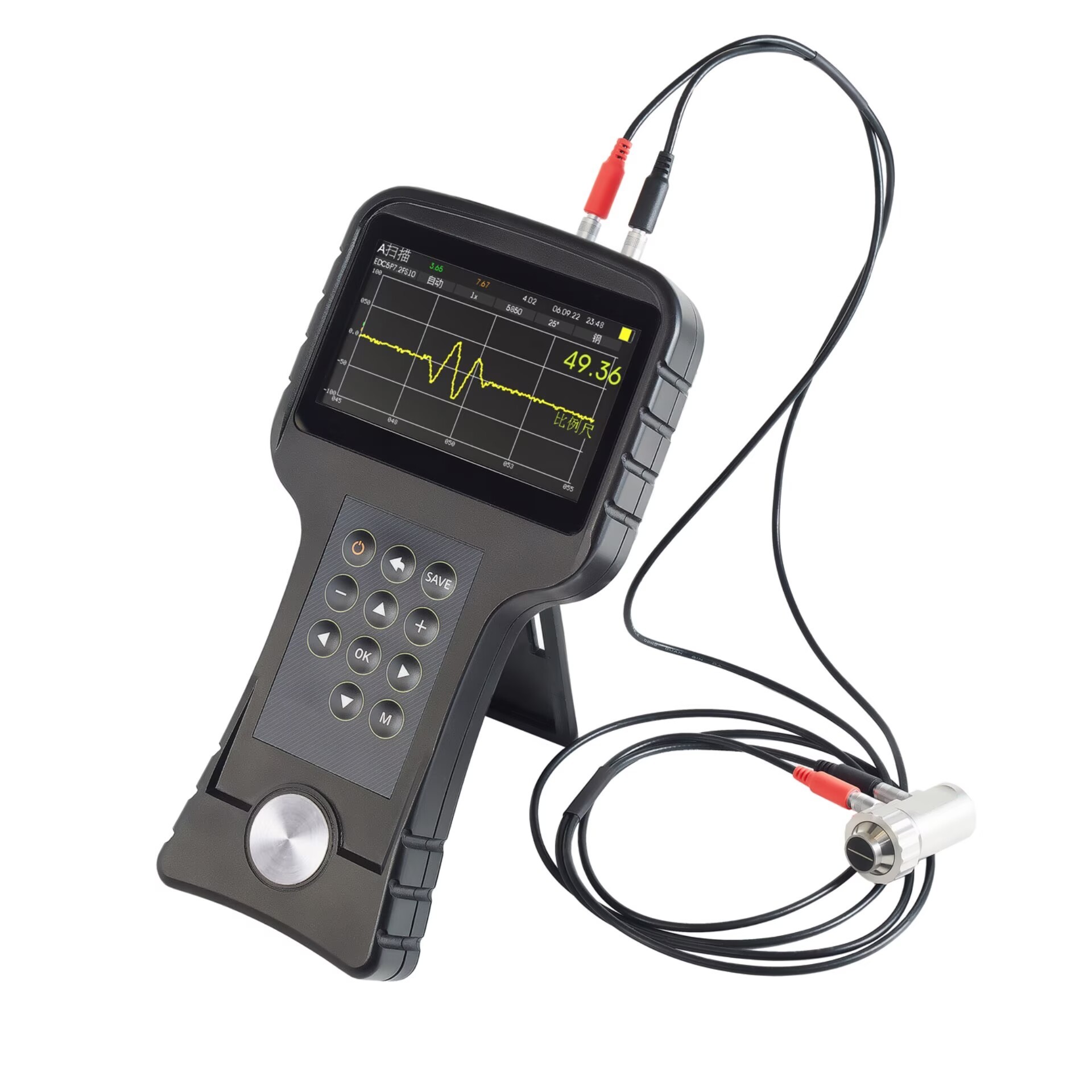

Supports traditional piezoelectric wafer sensor connectivity
High-temperature sensor compatibility for workpieces up to 800°C
Advanced algorithm accounting for sound velocity propagation and temperature changes
Dual independent measurement channels for EMA and piezoelectric sensors

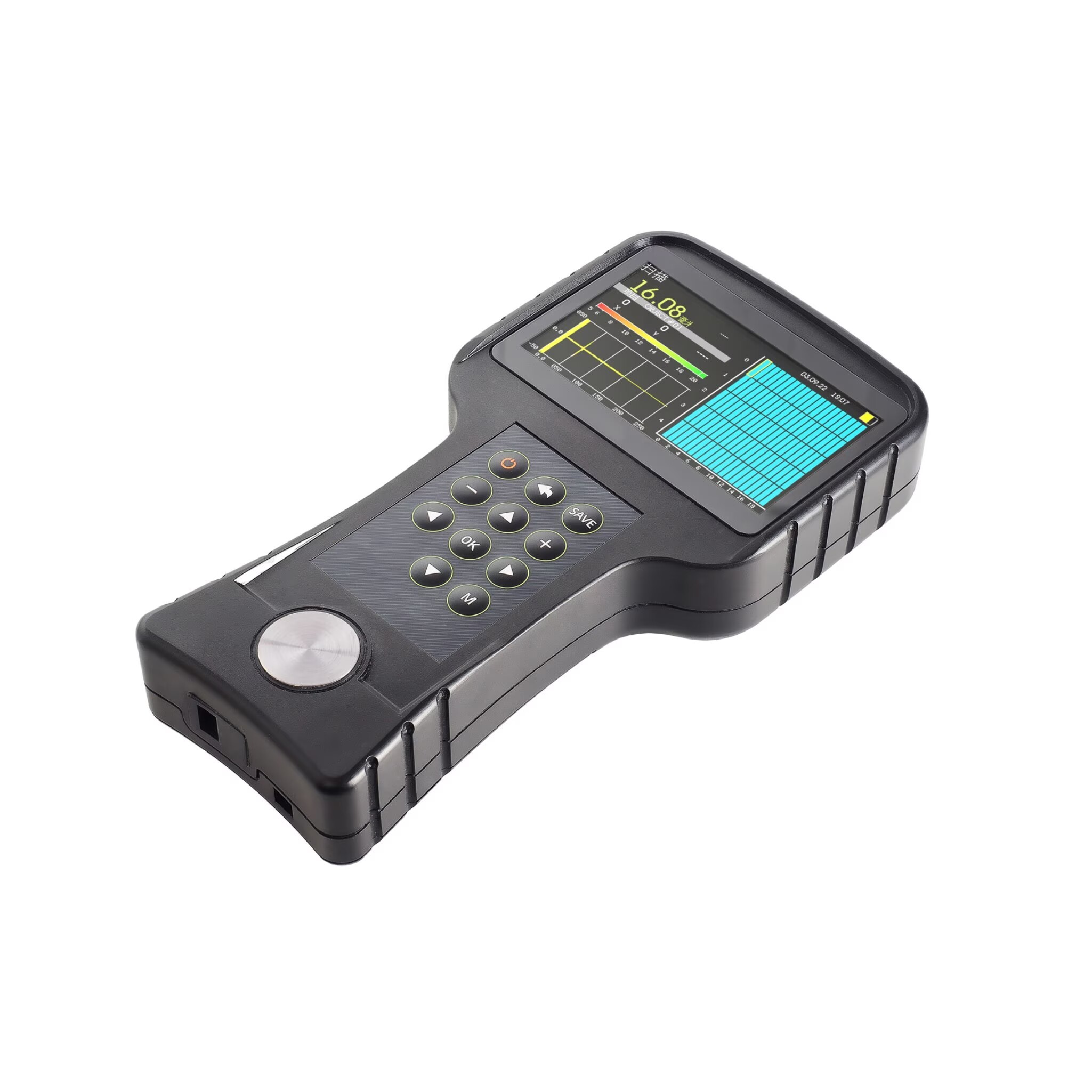

A-scan analysis and B-scan visualization with three display options
C-scan data storage in matrix format
Configurable thickness measurement modes and signal processing parameters

Technical Specifications

Ambient Operating Temperature Range	-20℃ ~ 500℃
Continuous Operating Time	8 hours
Sound Velocity Adjustment Range	1000 ~ 20000 m/s, with 1 m/s step
Maximum Measurement Rate	16 times per second
Device Supported Languages	Chinese, English, German, Japanese, Korean
Overall Dimensions	232 × 135 × 44 mm
Carbon Steel Thickness Measurement Range (4mm Coating)	2 mm - 80 mm
Carbon Steel Thickness Measurement Range (No Coating)	2 mm - 300 mm
Measurement Accuracy	0.01 mm
Measurement Error	≤ 0.1 mm ± 0.001 H mm
Maximum Permissible Lift-off Between Sensor and Test Workpiece	1.4 mm with EMPO01 standard sensor 2.6 mm with high lift-off sensor (optional)
Permissible Inclination Angle of Sensor Relative to Test Workpiece Surface	±25°
Minimum Permissible Curvature Radius of Test Workpiece Surface	≥ 8 mm
Main Unit Operating Frequency	4 MHz
Test Workpiece Surface Temperature Range (Standard Temperature Sensor)	-20℃ ~ +80℃
Test Workpiece Surface Temperature Range (High Temperature Sensor)	-20℃ ~ +800℃ (optional)
Steel Thickness Measurement Range	0.5 mm - 300 mm
Device Operating Frequency	5 MHz & 10 MHz
Test Workpiece Surface Operating Temperature Range	-10℃ ~ +60℃

Tag:

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE
Model Number:	TME580

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	50 pieces within one week
