TMTeck TE-04 Universal Encoder with 5m Cable Compatible with HSMT-Compact Scanner for NDT Ultrasonic Inspection

The HSMT-Compact is a manual one-axis encoded scanner designed for maintenance weld inspection. It is light, small, and highly versatile, capable of accommodating up to four probes on plates and performing circumferential scans on pipes as small as 4 in. schedule (4.5 in. OD).

The scanner length can be adjusted, and the frame can extend beyond the limit of the wheels, providing a configuration well suited for hard-to-reach places such as pipe-to-component welds. The HSMT-Compact completes the HSMT family: while the HSMT-Flex and HSMT-X03 are designed for construction welding inspection, the HSMT-Compact is purpose-built for maintenance weld inspection.

The HSMT-Compact kit includes the following components:

• Scanner frame with handles
• Additional frame bars: 400 mm (16 in.) and 600 mm (24 in.)
• Four magnetic, plastic-covered wheels

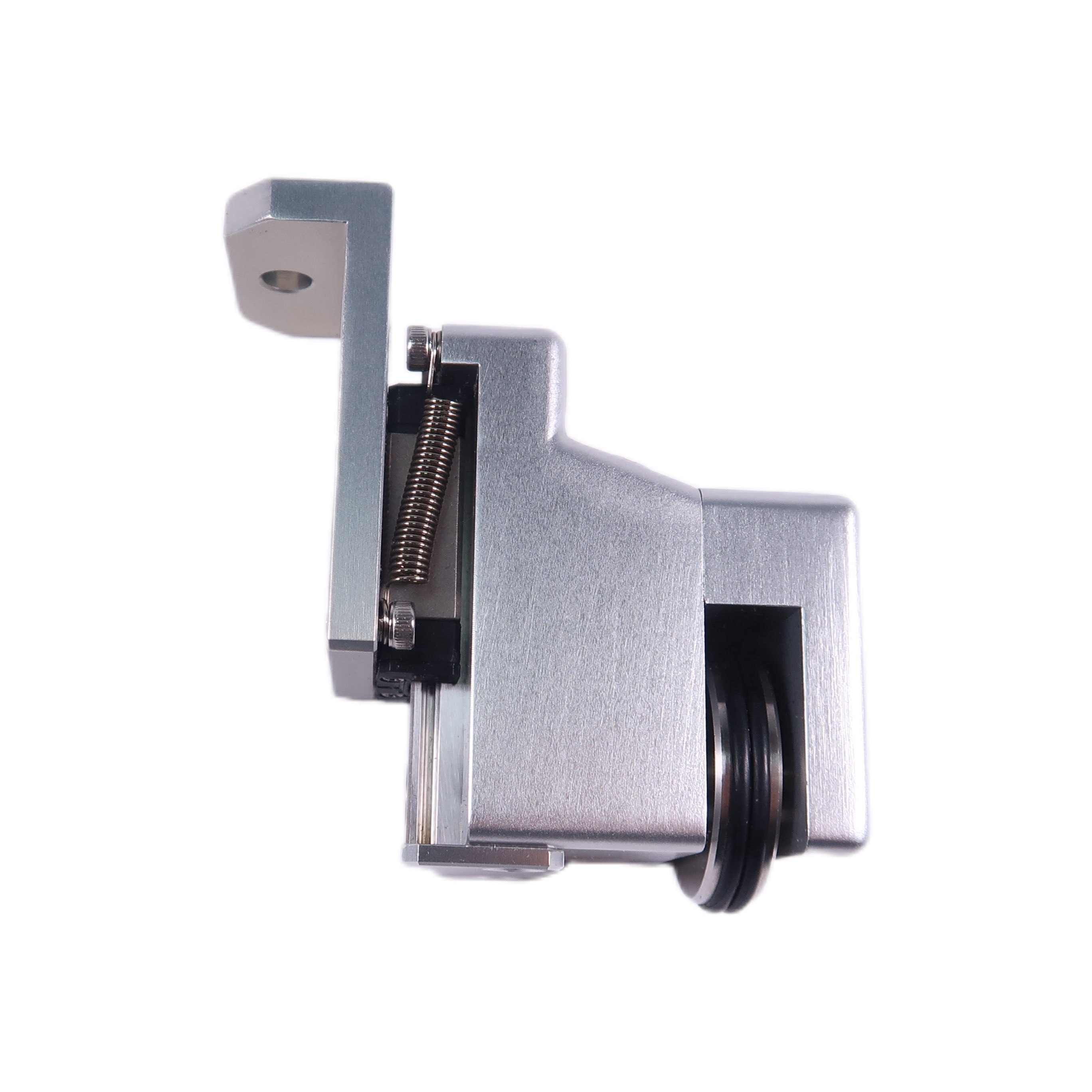

• Waterproof, spring-loaded wheel encoder

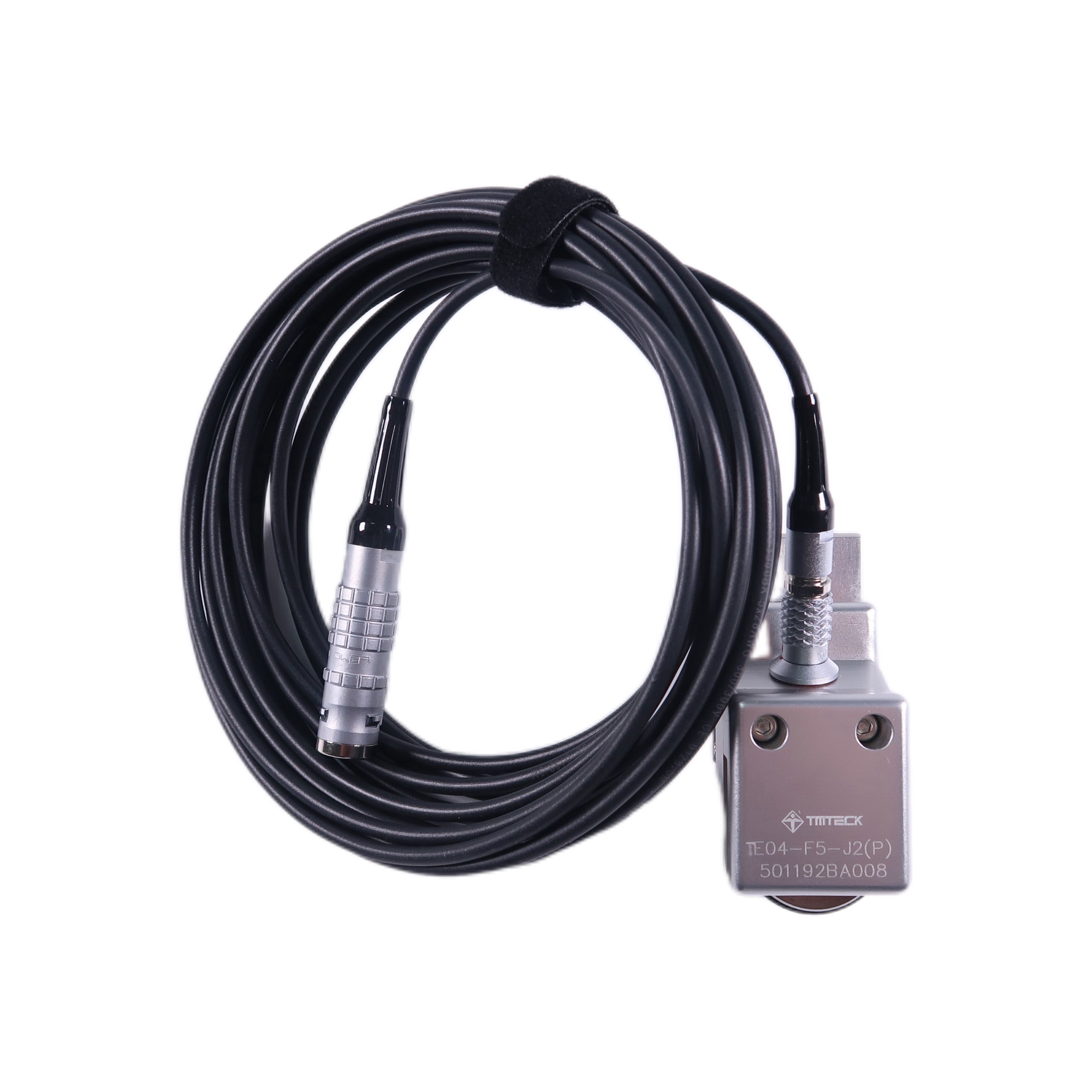

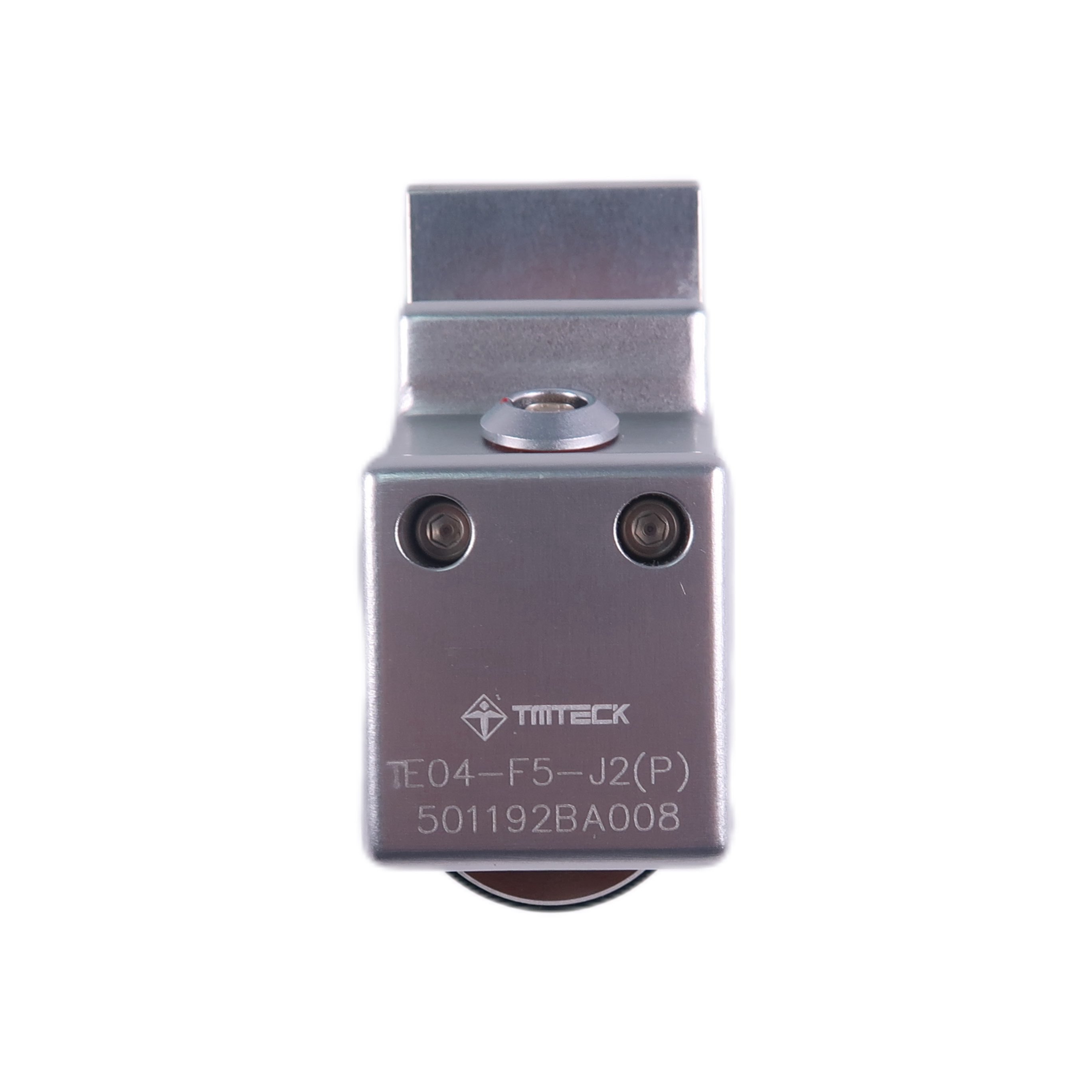

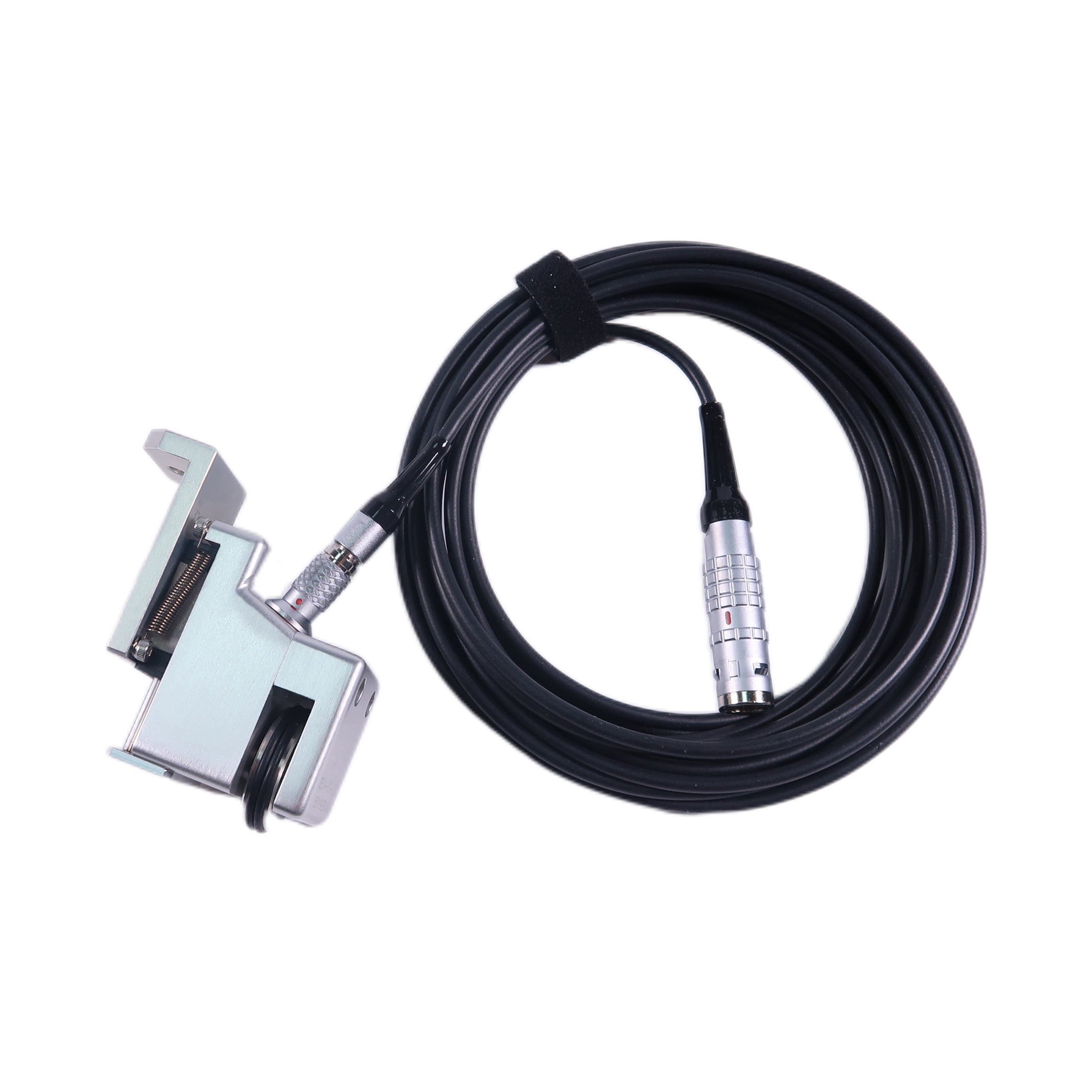

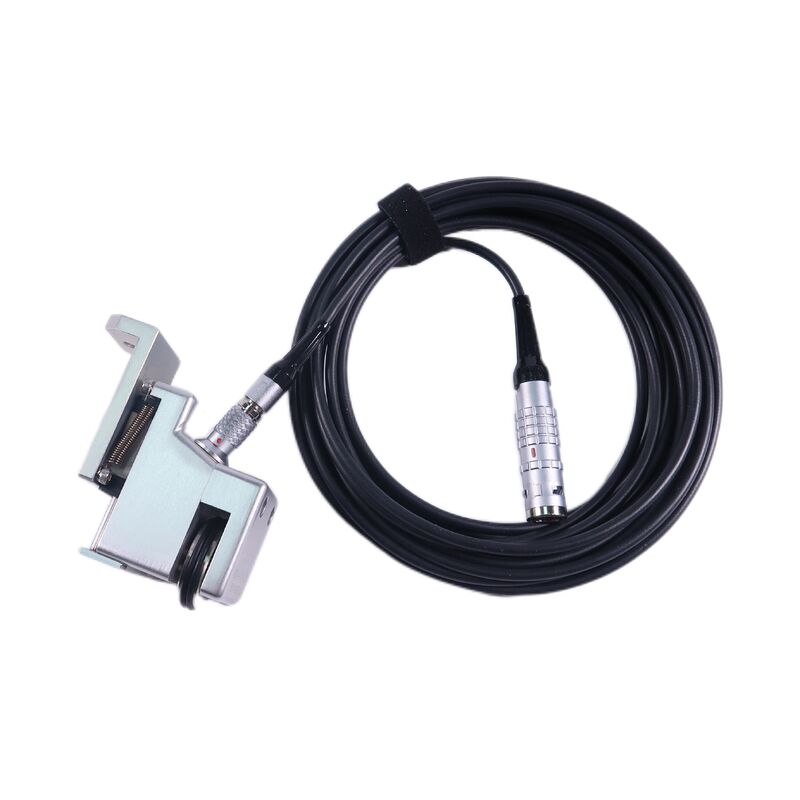

• TE-04-compatible encoder with 5 m cable (other lengths customizable)
• Four 90° probe holder brackets
• Four spring-loaded arms (SLA)
• Four TOFD/PE yokes (31.75 mm)
• Two phased array yokes (40 mm)
• Irrigation tubing and accessories
• Two metric/U.S. rulers

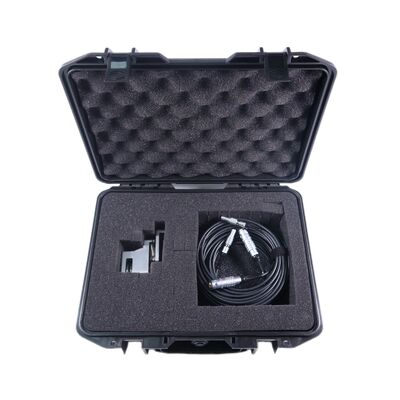

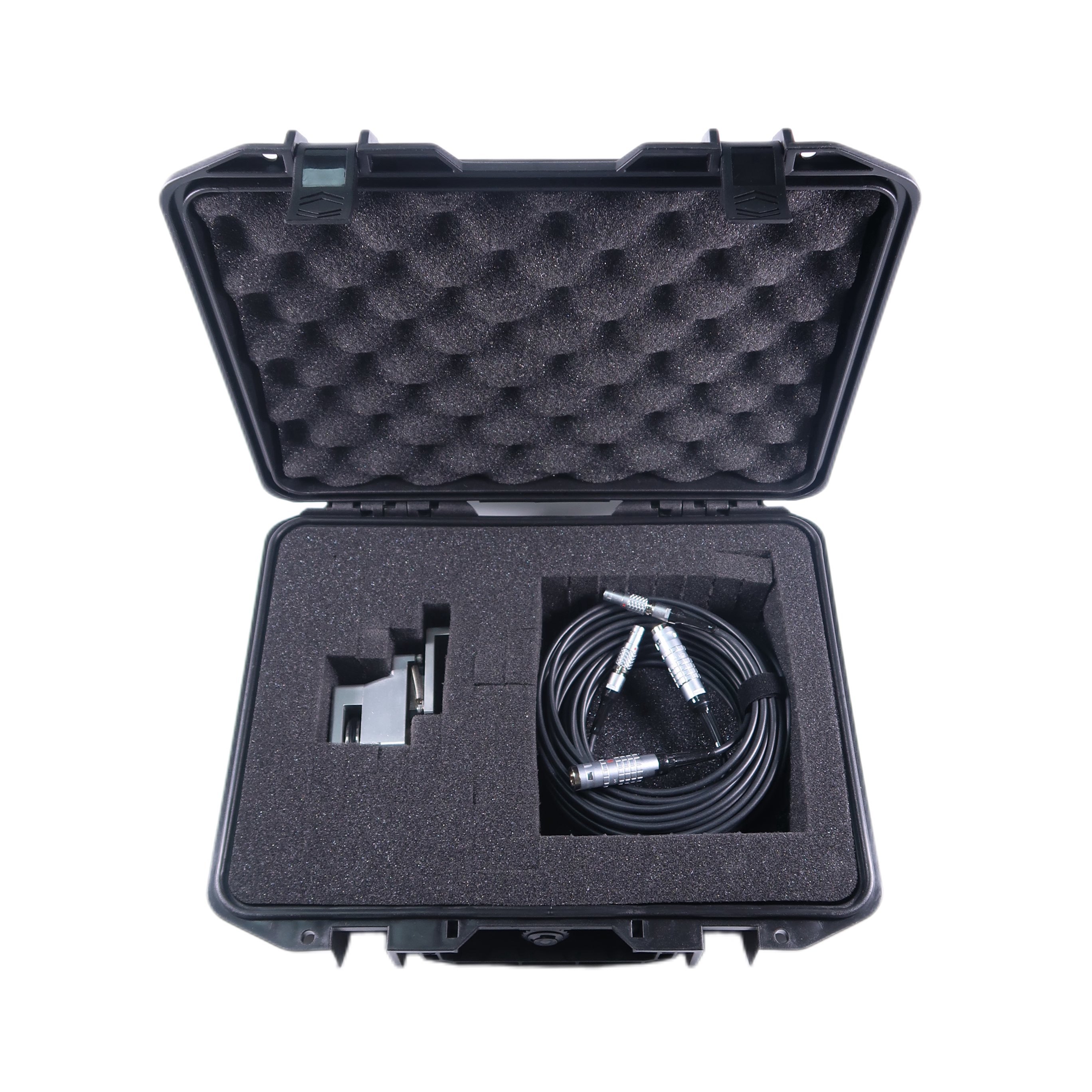

• Hard carrying case

Other available configurations include:

• 1 pair of TOFD probes
• 2 pairs of TOFD probes
• 2 PA probes

• Circumferential scan on 4 in. schedule pipes (4.5 in. OD) or greater
• Magnetic wheels hold the unit against a ferromagnetic inspection surface
• Light aluminum frame with customized length
• Frame design allows probes to be positioned outside the wheels
• Supports up to 4 probes on pipes or flat surfaces
• Fully adjustable probe positioning
• Independently spring-loaded probe holders
• Waterproof, spring-loaded encoder
• Removable handles
• Eyelet for umbilical or lanyard attachment
• Water manifold integrated into the scanner frame
• Metric/U.S. rulers on the scanner for easy probe separation measurement
