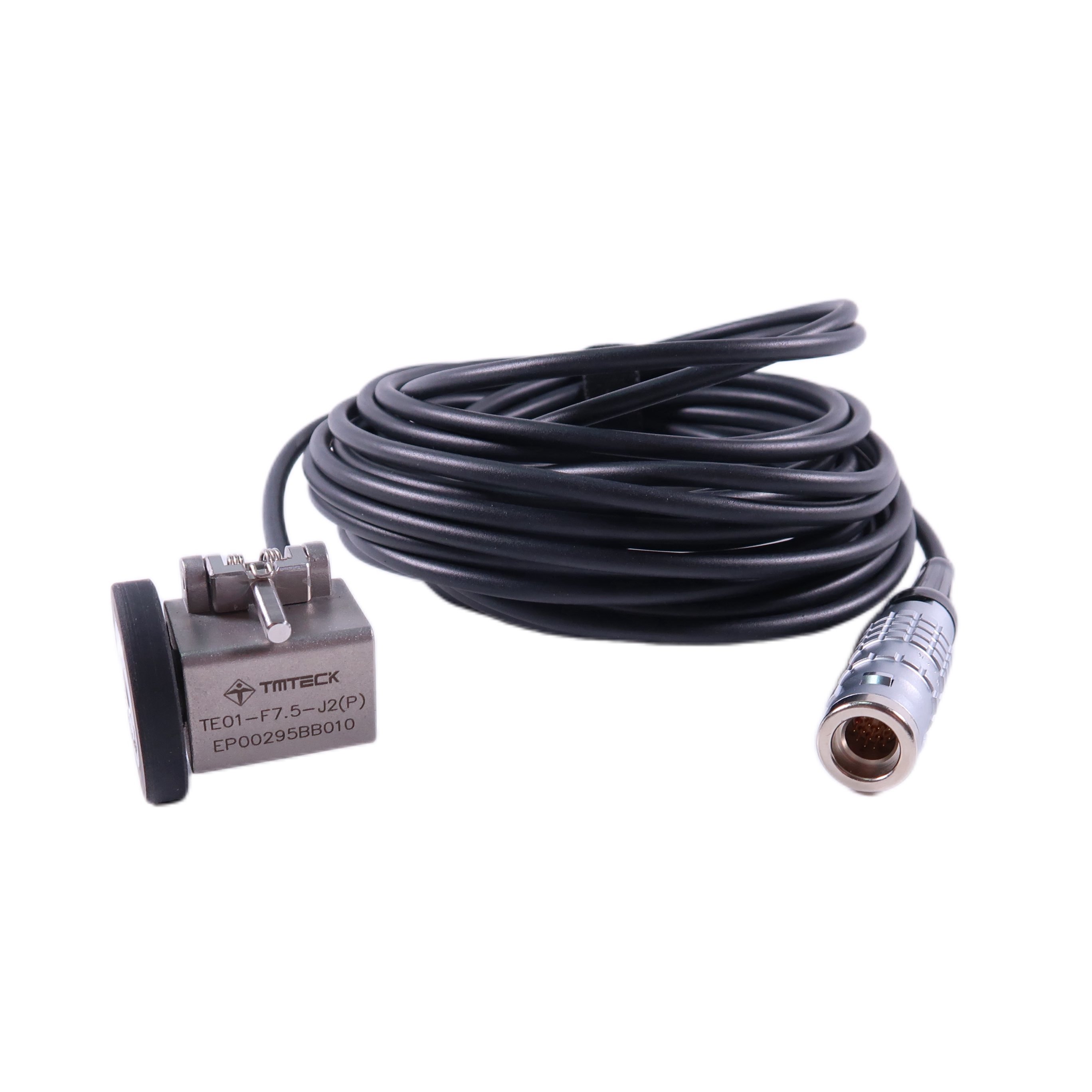

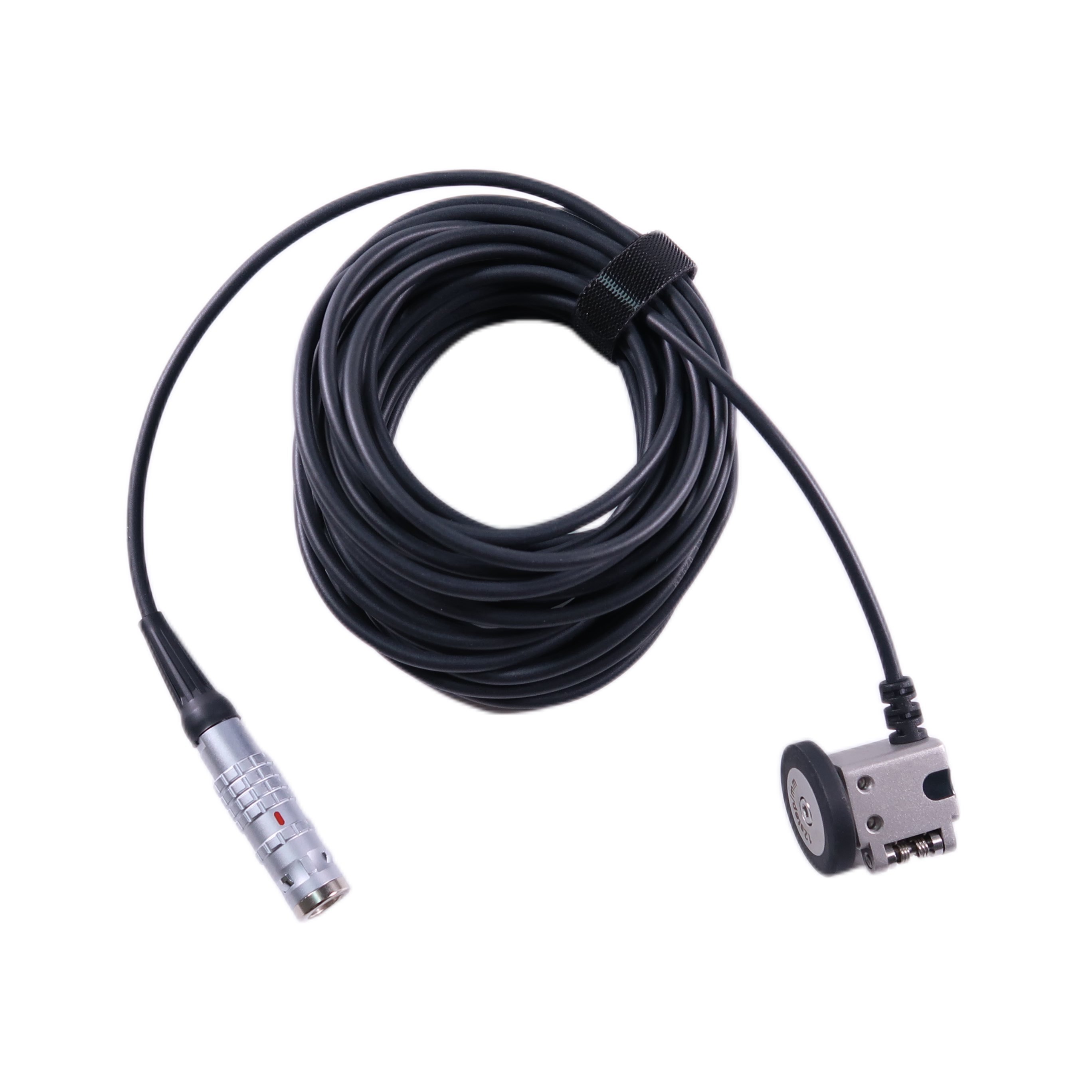

TMTeck Universal Mini-Wheel Encoder, Compatible with Olympus NDT Standard PA Wedges for Phased Array UT Inspection

The TMTeck Universal Mini-Wheel Encoder is designed for the positioning and dimensioning of defects along the scan axis. It synchronizes data acquisition with probe movement, making it a reliable component for phased array ultrasonic testing (PA UT) workflows.

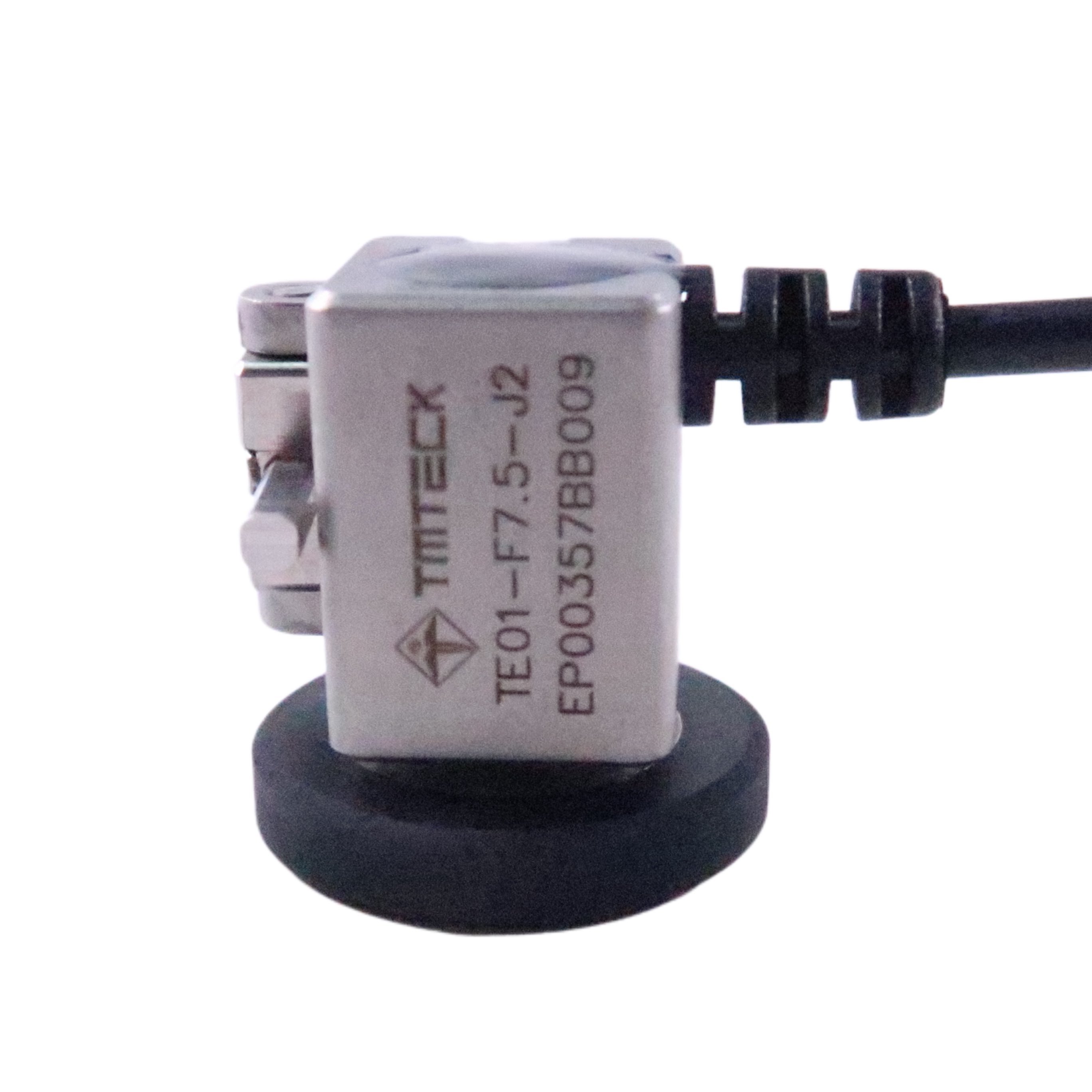

The encoder is waterproof and compatible with the HST-X04 scanner as well as Olympus NDT standard PA wedges that can be connected using the included bracket kit. Its miniature construction features an aluminium casing and a stainless steel wheel, delivering a resolution of 12 counts per millimeter (304.8 counts per inch).

• Waterproof construction for demanding inspection environments
• Compact, small-dimension design

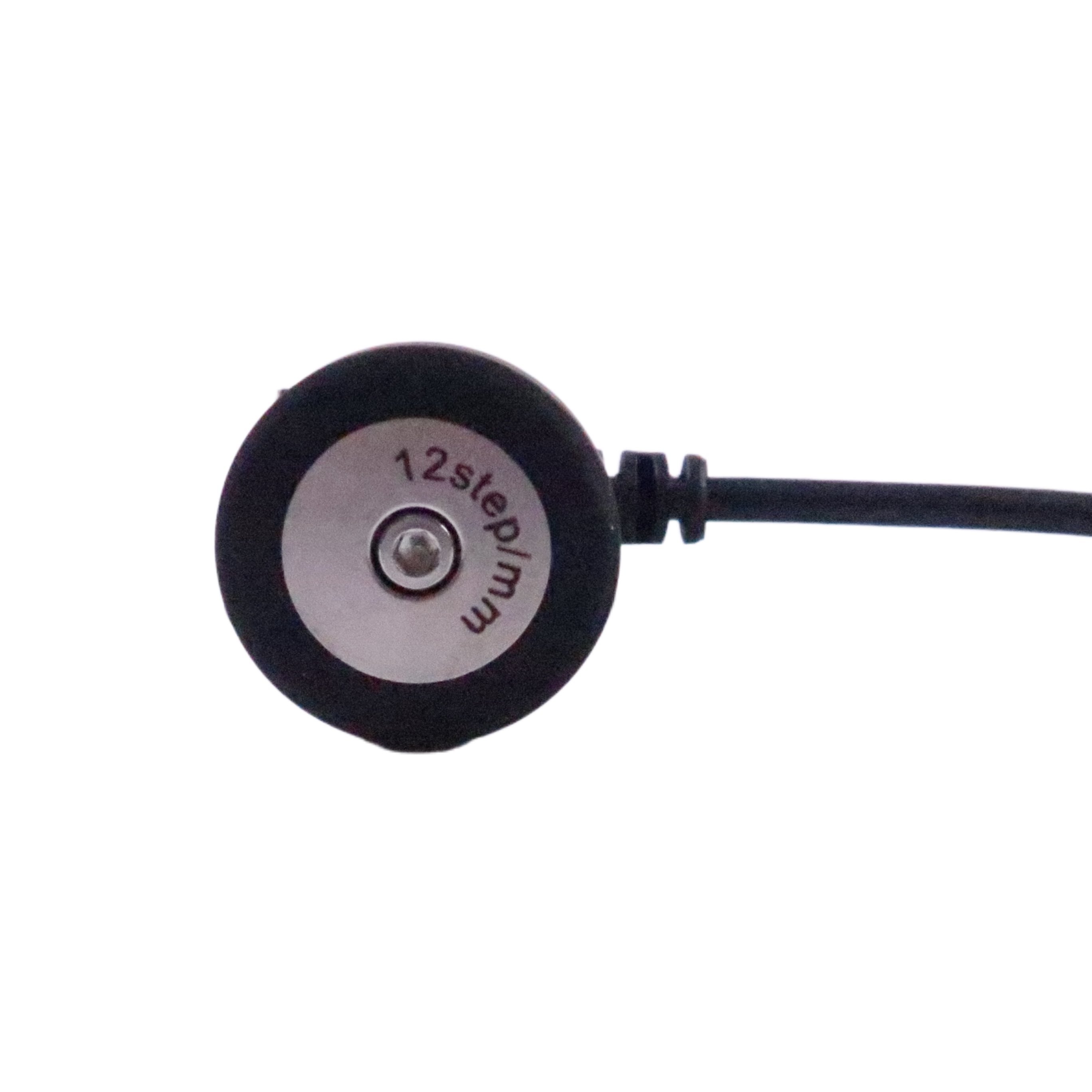

• Encoder resolution engraved directly on the wheel
• Removable encoder wheel for easy maintenance
• Double O-ring tire for improved adherence
• Metallic strain relief for cable protection
• Spring-loaded pin for secure encoder attachment
• Two M3 threaded holes on top of the casing for rigid attachment
• DE version compatible with the OmniScan instrument (DE15 connector type)
• BX version compatible with the FOCUS LT instrument (Bendix connector type)

• 1 encoder with standard wheel
• 1 bracket kit
• 1 Allen key screwdriver for bracket attachment

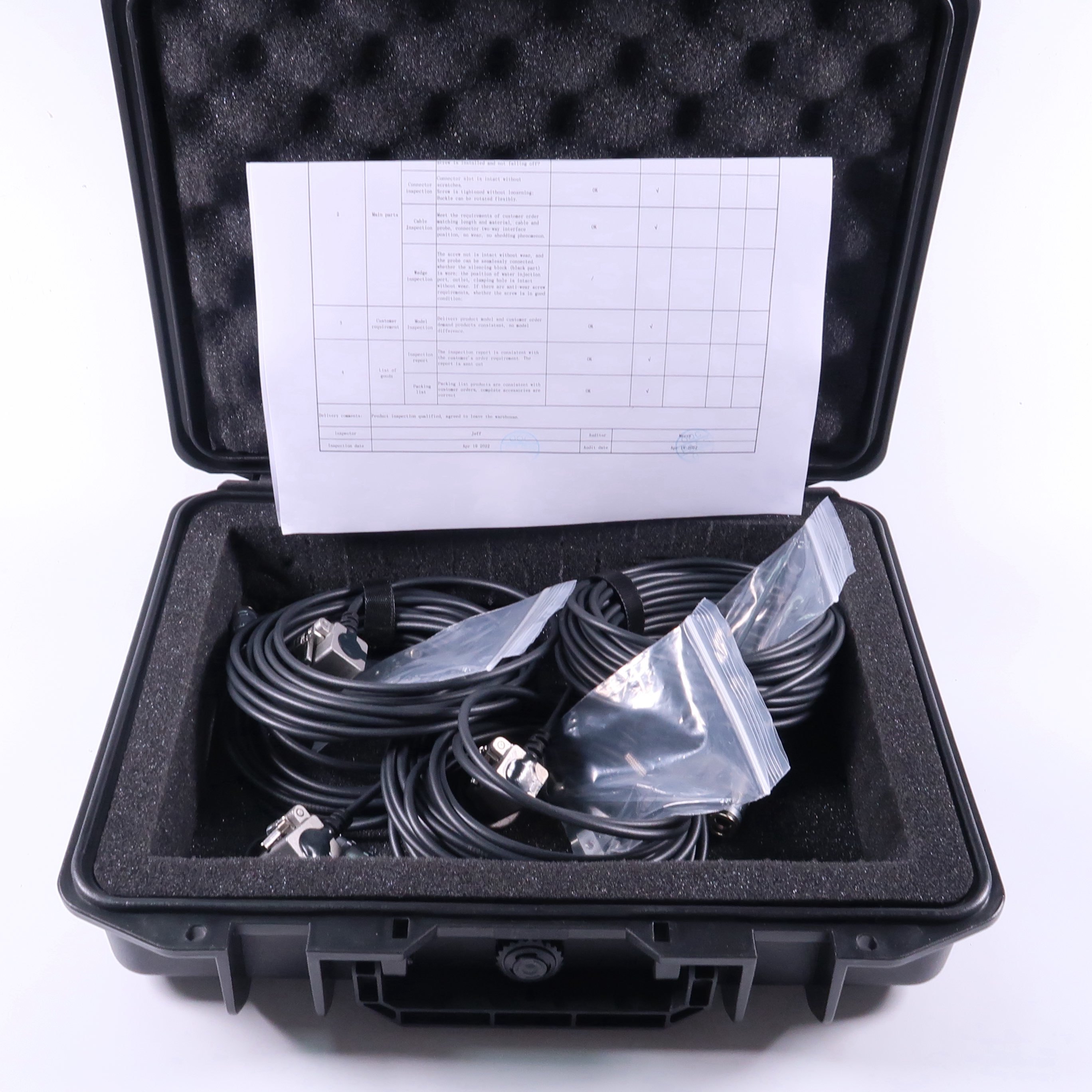

• 1 carrying case
