Light Ultrasonic Flaw Detector TFD900 with Square Wave Drive and EN12668-1 Compatibility for Portable Flaw Detection

Basic Information

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE
Model Number:	TFD900

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	5-8 work days
Payment Terms:	T/T,PayPal
Supply Ability:	50 pieces within one month

Get Best Price Contact Now

Detail Information

Working Frequency:	W\N Band, W: 0.5~20MHz; N: 1.5~3MHz	Warranty:	2 Years
Sensitivity Surplus:	≥60dB (200Φ2 FBH)	Probe Delay Available:	0~999.9μs
Weight:	Around 0.9kg (with Battery & In-built Charger)	Discernibility:	≥36dB (mated With 5MHzΦ14 Transducer)
Attenuator Error:	Per 12dB ±1dB
Highlight:	0.9kg Ultra-Light Ultrasonic Flaw Detector , Square Wave Drive Portable Flaw Detector , EN12668-1 Compatible UT Flaw Detector

Product Description

Product Overview

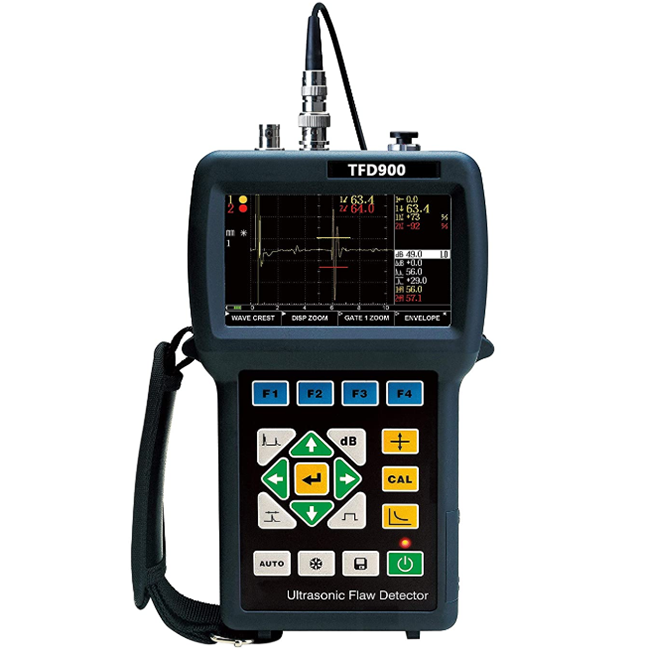

The TFD900 Ultrasonic Flaw Detector is an ultra-light, handheld UT instrument delivering outstanding performance. Compatible with EN12668-1:2010, it is engineered for precision flaw detection in demanding industrial environments.

The instrument features a 5.6-inch TFT display with full WVGA (800*480) resolution, ensuring excellent visibility even outdoors or under strong sunlight. Its advanced "square wave drive" technology delivers the sensitivity and resolution professionals demand. Weighing only 0.9 kg, the TFD900 is designed to be carried and operated like a hand tool for instant inspection tasks — making it a superior choice compared to conventional counterparts.

Key Highlights

Curved Surface Consideration
DGS & DAC Functional Curves
RF Waveform Mode
Recording (1 Hour Total)
Echo Crest Tracking
Enveloping (for Waveform Comparison)
AWS D1.1 Evaluation Module
API 5UE Evaluation Module
Performance Indices Test
1000 Frames of A-scan Storage
ComApp for PC Review and Report Printing
0.9 kg Lightweight Design

Features

Advanced circuitry with sampling frequency up to 640 MHz ensures instant and accurate display and analysis of flaw signals, even when weak.
State-of-the-art square wave drive technique for optimal sensitivity and resolution.
Weighs only 0.9 kg — convenient for operation and portability.
TG full WVGA TFT display for superior visibility.
8+ hour battery life for consecutive working; built-in smart battery charger with auto-switching between charging and powering status.
External USB port for software upgrading, data transfer, and printing; compatible with mouse, keyboard, and USB flash drive.
Compatible with EN12668:2000 standards.

Technical Specifications

Attenuator Error	Per 12 dB ±1 dB
Equivalent Input Noise	<80*10⁻⁹ V/√Hz
Pulse Type	Negative square wave, Tv: 25–250 V; tunable in 25 V steps
Working Modes	T/R; T&R
Damping	400 / 80 Ohm
Working Frequency	W/N Band; W: 0.5–20 MHz; N: 1.5–3 MHz
Gain	0.0–110.0 dB; 0.1 / 1.0 / 2.0 / 6.0 dB per step; smart speed-up at 0.1 dB
Material Velocity	1000–15000 m/s tunable; 30 frequently-used velocities preset
Display Reachable	0.0–10000 mm LW at steel velocity, tunable with min. 0.1 mm per step
Rectification	Positive, Negative, Full, RF (1002plus)
Gate & Alarm	Dual gates, hardware-driven real-time alarming; alarm condition: excess/loss/DAC; alarm mode: sound; spotting: peak
Display	TG, TFT 5.6-inch WVGA color display, resolution 800*480
Pulse Shift Range	-7.5 to 3000 μs
Probe Delay Available	0–999.9 μs
PRF	25–800 Hz, auto adaptation
Vertical Linearity Error	≤3%
Horizontal Linearity Error	≤0.2%
Sensitivity Surplus	≥60 dB (200Φ2 FBH)
Discernibility	≥36 dB (mated with 5 MHz Φ14 transducer)
Dynamic Range	≥32 dB
Rejection	0–90%, without any dent to linearity or gain
NL	<10%
Ports	BNC probe connector; USB HOST
Power Supply	Large-capacity Li battery without memory effect; battery life: 8+ hrs; built-in battery charger (independent charger optional); AC: 220 V
Dust / Splash / Water Proof	IP54
UT Standards	Compatible with EN12668-1; meets JB/T 10061-1999
Ambient Temperature	-30 to 50 °C
Relative Humidity	20%–95%
Weight	Approx. 0.9 kg (with battery & built-in charger)
Dimensions	Upper Part: 215 mm * 126 mm * 53 mm; Lower Part: 215 mm * 104 mm * 42 mm

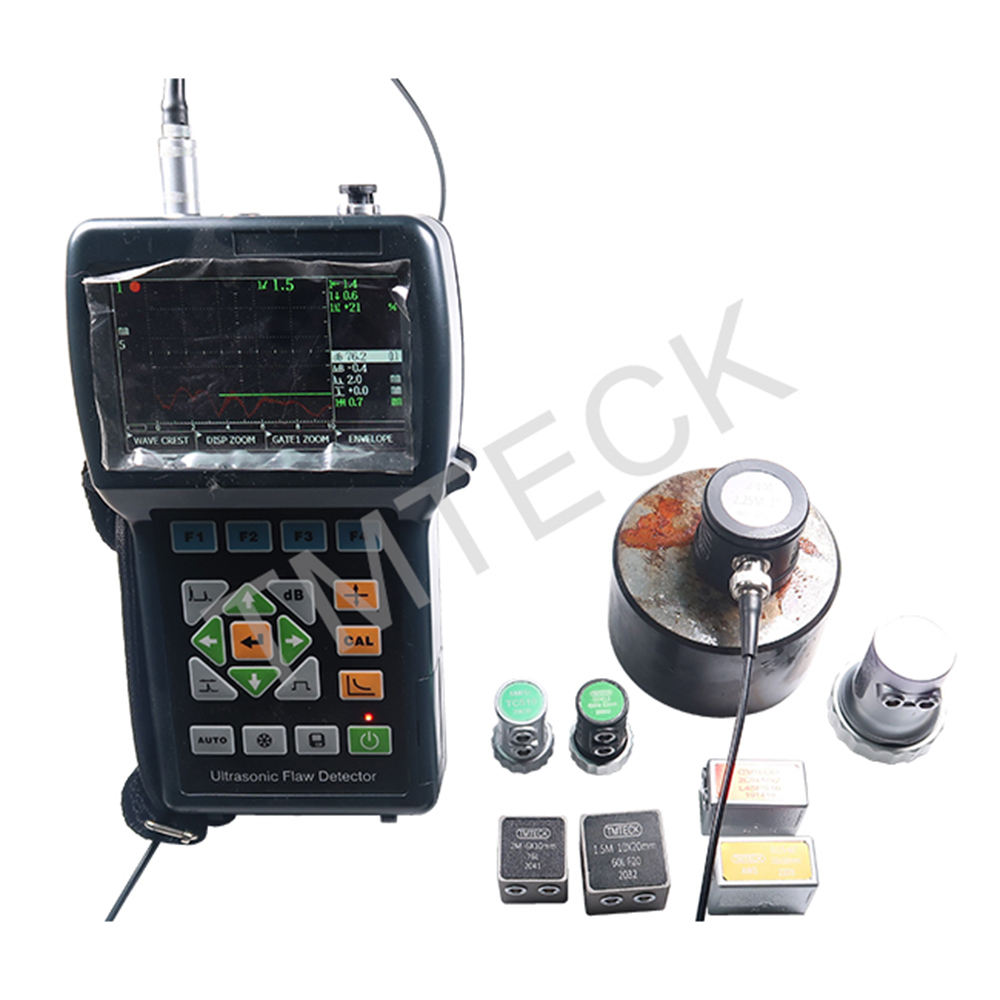

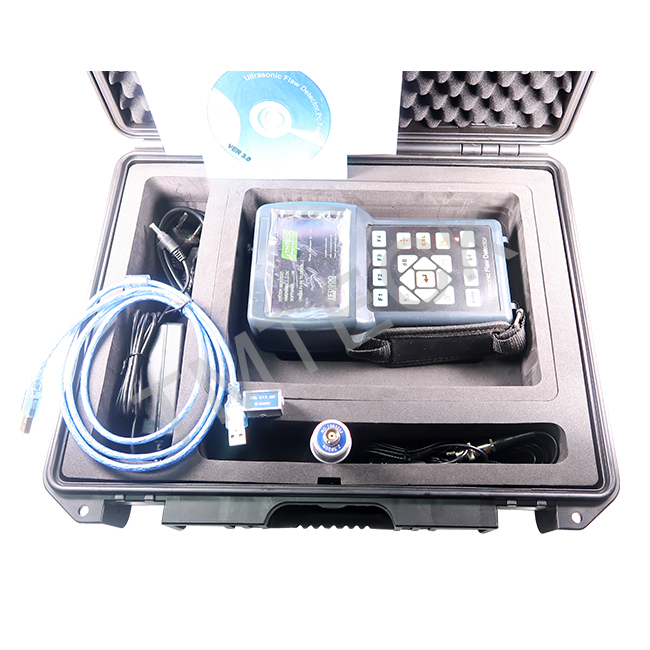

Standard Configuration

Portable Ultrasonic Flaw Detector
Straight Beam Transducer (4 MHz, Φ10)
Angle Beam Transducer (4 MHz, 8 mm * 9 mm, 60°)
Interconnect Cable for the transducer (Q9-C5, or optional C9-C5)
Rechargeable Li-Ion Battery Package
Power Supply / Charger Unit
Operating Manual in English
App Software
Strap
