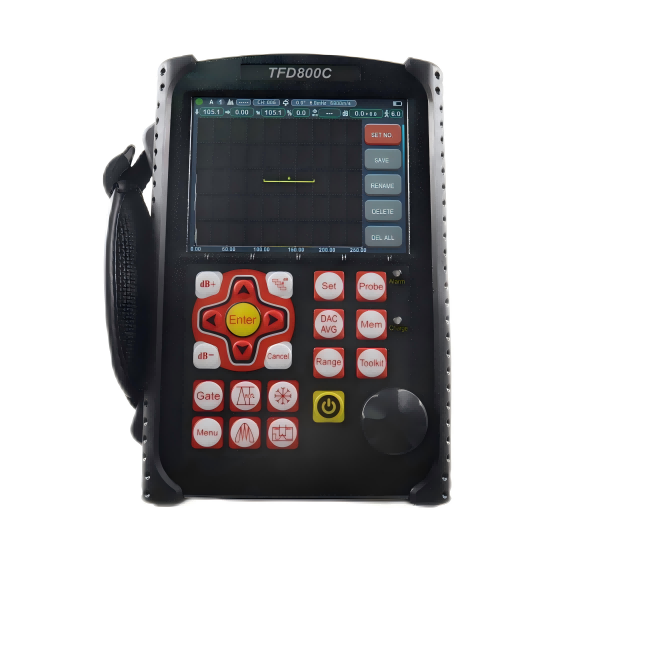

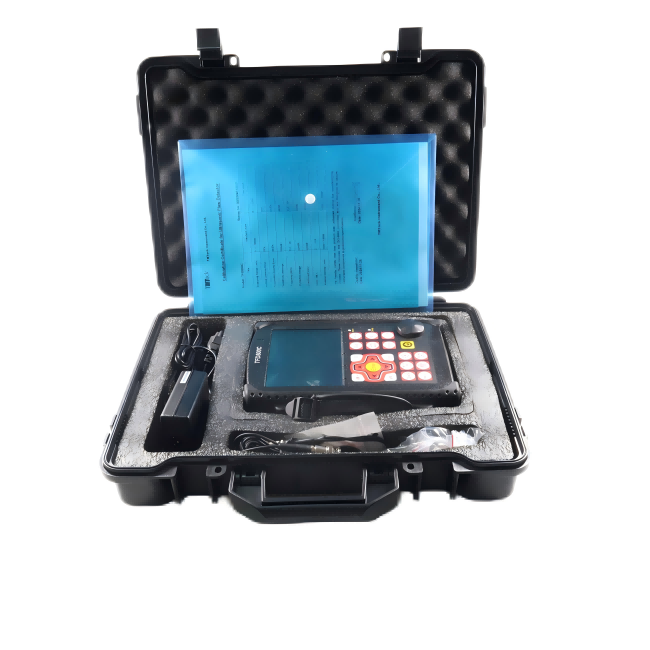

Ultrasonic Flaw Detector TFD800C PLUS with 10-2000Hz Pulse Repetition Frequency and 0-10000 mm Range

Basic Information

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE
Model Number:	TFD800C PLUS

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T,PayPal
Supply Ability:	50 pieces within one month

Get Best Price Contact Now

Detail Information

Range:	0-10000 Mm, At Steel Velocity	Material Velocity:	1000～10000 M/s
Pulse Repetition Frequency:	10-2000Hz	Dynamic Range:	≥38dB
Service:	OEM, ODM, OBM	Warranty:	2 Years
Highlight:	10-2000Hz Pulse Repetition Frequency Ultrasonic Flaw Detector , 2 Years Warranty Ultrasonic Flaw Detector , 0-10000 mm Range Ultrasonic Flaw Detection Instrument

Product Description

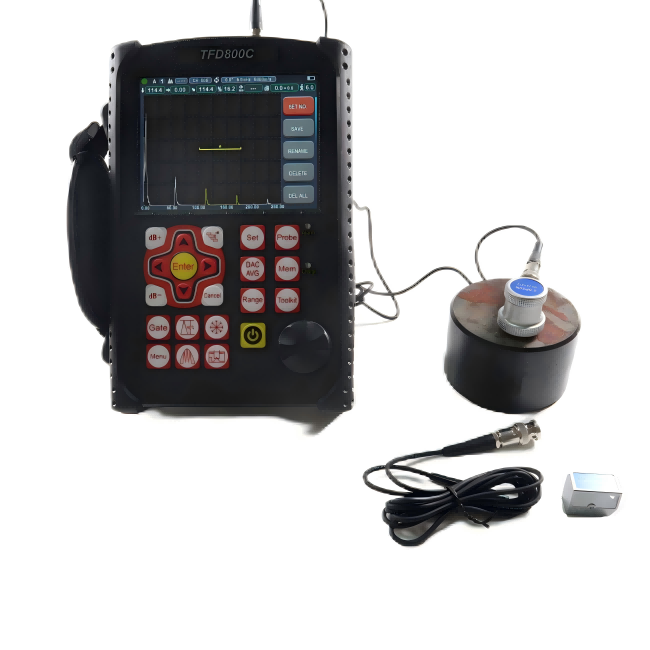

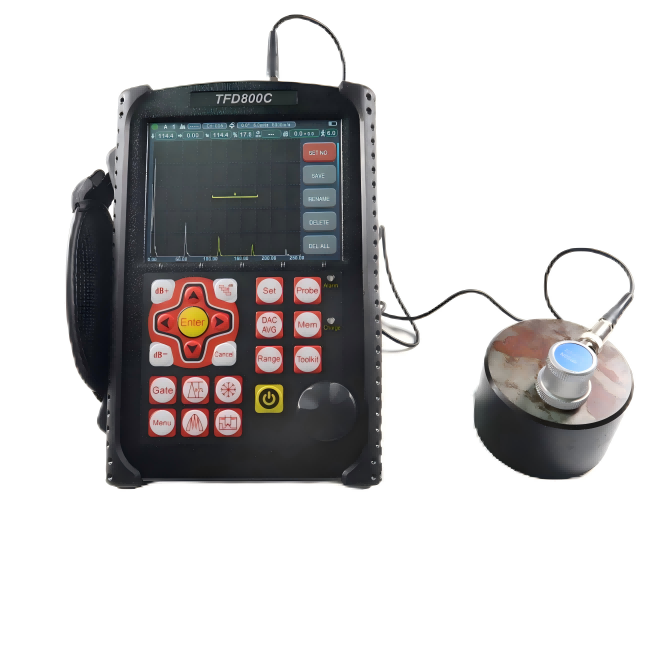

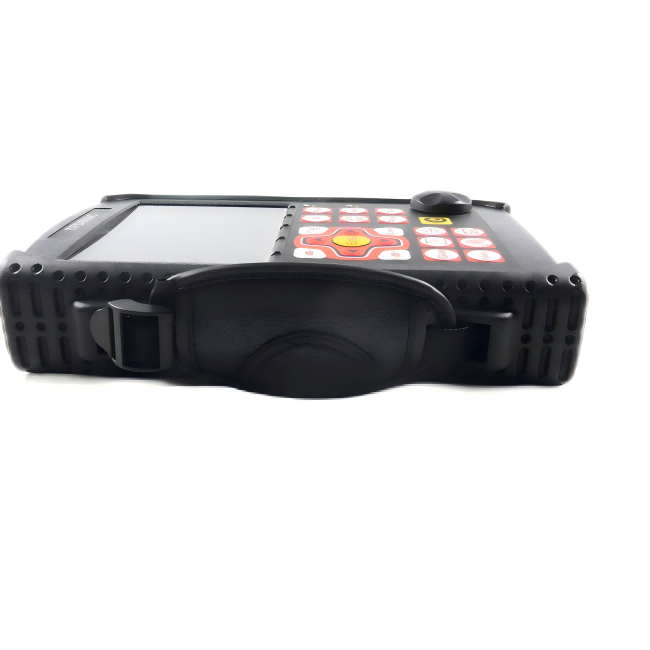

Ultrasonic Flaw Detector TFD800C PLUS

User-friendly dialog interaction assists operations such as calibration, curve making, and more.
All the tools you need: DAC, AVG, AWS, weld diagram, and more.
Pulse repetition frequency of 10–2000 Hz with precise adjustment enables high-speed scanning with no missed defects.
High signal-to-noise ratio delivers clear and stable echoes; anti-noise design is perfect for tough working conditions.
10-digit AD and high-speed sampling produce better echo diagrams with full detail — sensitive enough to detect even tiny flaws.
Crystal-clear true-color display with a helpful user interface makes operation much easier.
Unlimited USB data storage and PDF report output.

Interface & Software Overview

Main Interface	Report
Making DAC	Standards
Coded Echo	AVG
Report List

Specifications

Range: 0–10000 mm at steel velocity
Material Velocity: 1000–10000 m/s
Pulse Repetition Frequency: 10–2000 Hz
Dynamic Range: ≥38 dB
Linearity: Horizontal ±0.2% FSW, Vertical 0.25% FSH, Amplifier Accuracy ±1 dB
Resolving Power: >40 dB (5P14)
Sensitivity Leavings: >65 dB
Reject (Suppression): 0 to 80% full screen height
Memory: 500 independent setups with freely inputtable criteria (no test block required on site); large memory for 1000 A-graphs
Test Modes: Pulse echo, dual element, and thru-transmission
Probe Types: Single straight, single angle, dual straight, dual angle, through, creeping, surface
Gate Monitors: Two independent gates controllable over the entire sweep range
Units: Inch or millimeter
Power Requirements: AC mains 100–240 VAC, 50–60 Hz
Display Delay: −20 to 3400 µs
Probe Delay / Zero Offset: 0 to 99.99 µs
Battery: Internal rechargeable Li-ion pack rated 7.2 V at 5600 mAh; 10 hours nominal operating time (depending on display brightness); 4 hours typical recharge time
Dimensions (H*W*D): 240 * 170 * 38 mm
Weight: 1.0 kg
Operating Temperature: −10 °C to 50 °C
Storage Temperature: −30 °C to 50 °C
Pulse Energy: 200 V, 300 V, 400 V, 500 V selectable
Rectification: Positive half wave, negative half wave, full wave, RF system
Sensitivity: 110 dB max in selectable resolution of 0.1, 1.0, 2.0, 6.0 dB
Transducer Connections: BNC or LEMO

Functions

Automated display of precise flaw location (depth d, level p, distance s, amplitude, sz dB, φ).
Flaw sizing: automatic flaw sizing using AVG/AVG or DAC, speeding up reporting of defect acceptance or rejection.
Automated calibration of transducer zero-point, angles, front edge, and material velocity.
Convenient creation and use of DAC and AVG to evaluate echoes; curves can be modified and compensated.
Connecting a U-disk provides unlimited memory, PDF report output, and system updates.
Weld diagram support.
15 built-in standards.
AWS D1.1 support.
Curved surface correction feature.
Crack height measurement function.
Magnify gate: spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display.
Peak hold: compare frozen peak waveforms to live A-scans to easily interpret test results.
Scan freeze: display freeze holds waveform and sound path data.
Alarm: beep and LED.
Real-time clock.
Fill echo.
Capture mark.
Echo color within the gate.
