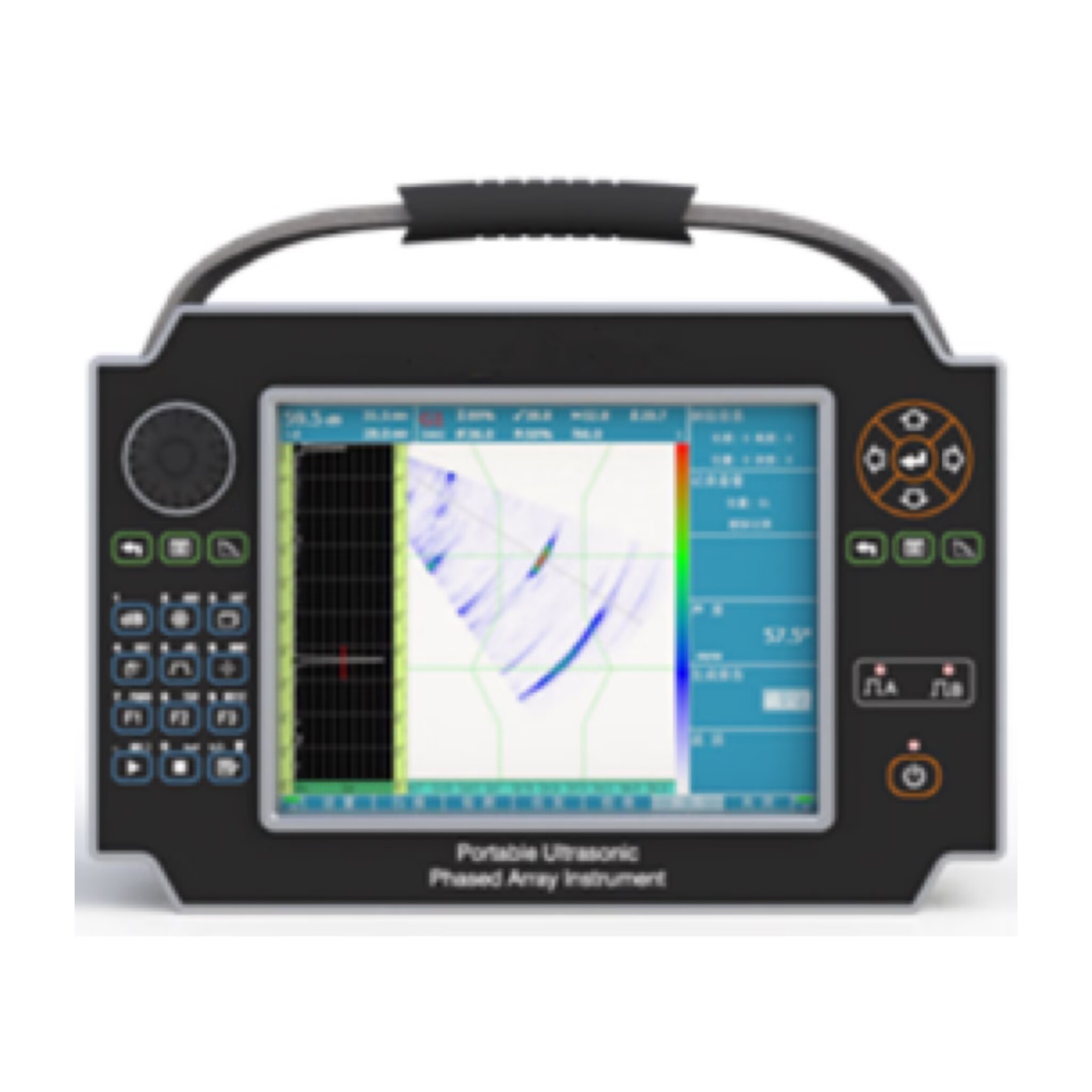

64 Channel Phased Array Ultrasonic Flaw Detector TMPA600 with Dynamic Depth Focusing and 11-inch TG Touch Screen

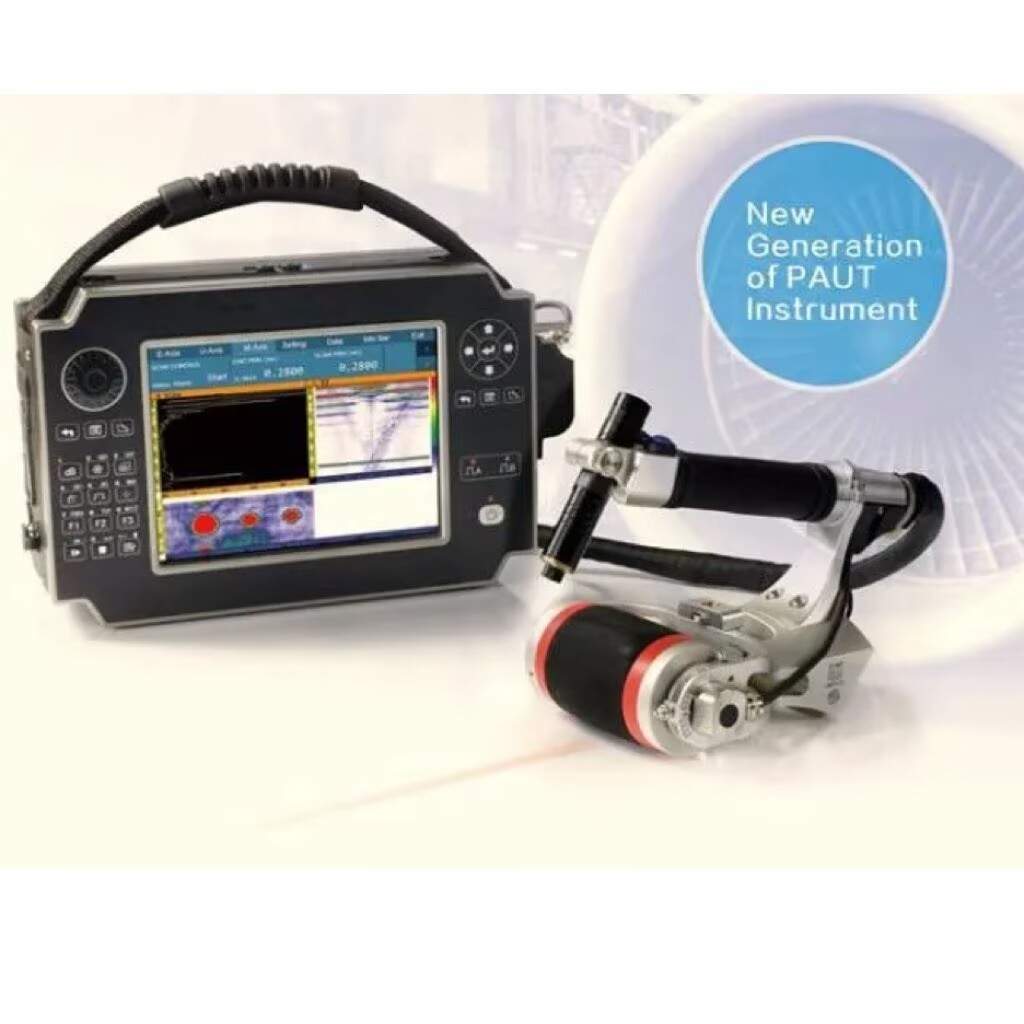

The TMPA600 is a portable phased array ultrasonic flaw detector engineered for demanding industrial inspection environments. Combining a 64-channel configuration with a rugged, fully sealed metal housing, it delivers reliable, high-definition imaging and comprehensive data recording for a wide range of non-destructive testing applications.

• 64-channel configuration for advanced phased array inspection.
• State-of-the-art water- and oil-proof TG touch pad for dependable operation in harsh conditions.
• Anti-hit, omnisealed, fan-free metal housing with low power consumption.
• Full-course recording with smart management of dual lithium batteries for extended operating life.
• "Solution" trademark — independently self-made instruments and transducers, with full process support.

• 16:64 configuration with a maximum active aperture of 16 elements and up to 64 elements available; T-R mode (twin PA probes) optional.
• Delay precision up to 1 ns, with evident sidelobe inhibition that promotes vertical and horizontal discernibility and improves imaging definition.
• Real-time A/L/S/C scan responsive imaging; encoding or time-based options for continuous data recording, acquiring 100% original data.
• Curve compensations such as ACG and TCG are available as prescribed by ASME, addressing uneven energy distribution during S-scan and related measurement errors. Echo sensitivity consistency is higher under ACG and TCG.
• Omnisealed, water- and dust-proof design with fan-free heat dissipation, standing up to various adverse conditions.
• Focal laws can be generated automatically according to angle, focal length, scan mode, and probe and wedge parameters, with auto-optimized stepping of S-scan.
• Real-time dynamic focusing creates full uniformity, a profound contributor to quality imaging.
• 55 dB analog gain range and 35 dB digital gain range; three filtering options: 0.5–9.7 MHz, 4.0–12.5 MHz, and 6.7–20.8 MHz. Auto-optimization of pulse width according to probe frequency, with excellent noise processing, image smoothing, and image quality enhancement.
• 11-inch TG full WVGA resolution (800×600) TFT display, best for outdoor viewing or under strong light.
• State-of-the-art water- and oil-proof TG capacitive screen for touch control and a sensational experience.
• Massive storage for A/L/S/C scan images, with accompanying reports.
• USB port for quick data transfer; HDMI port for connecting a display of unlimited size.
• AC/DC optional, allowing two batteries to act as co-power suppliers with automatic shift-over according to power allowance, guaranteeing 6+ hours of nonstop working.

Exclusive 3D modeling

Use of model

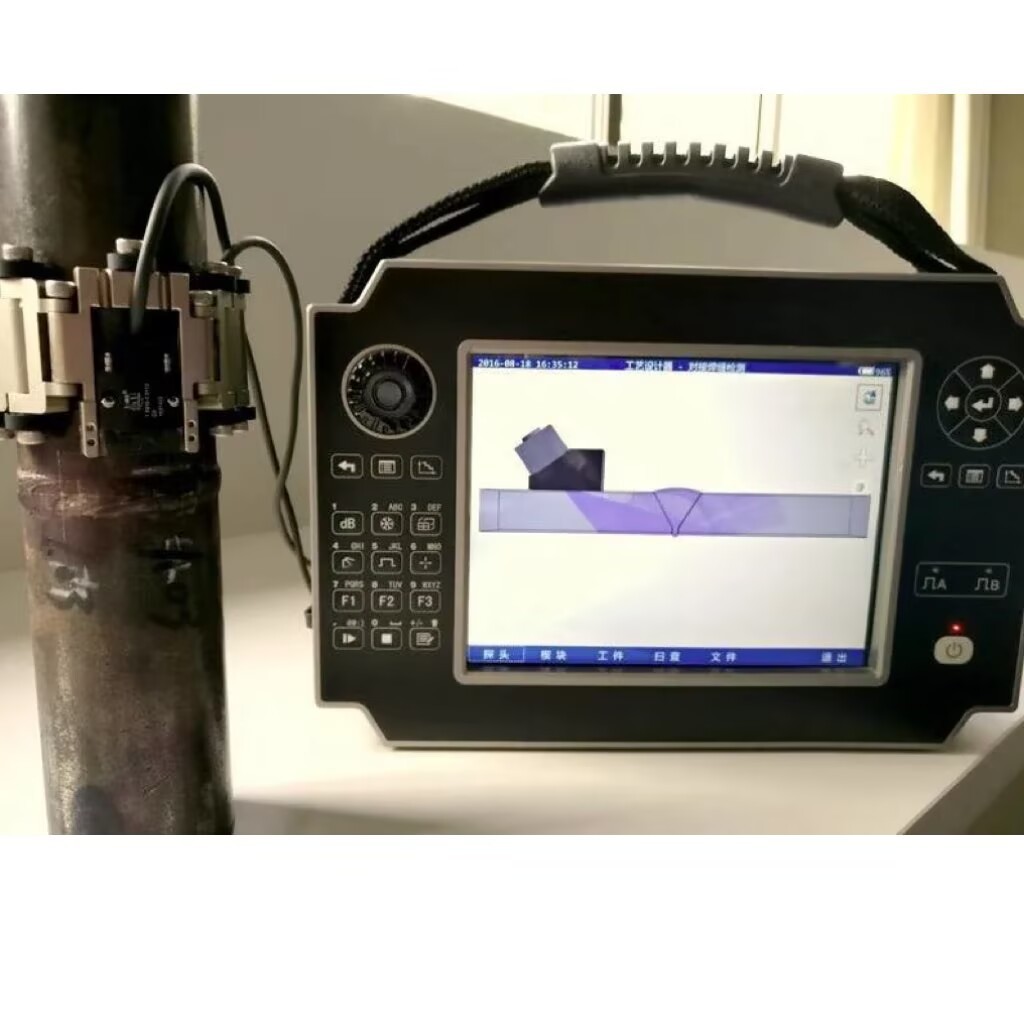

• Conventional inspection on welded seams (WS)
• Inspection on Al alloy FSW seams
• Inspection on welded seams of rail
• Inspection on axles and wheelsets of railway vehicles
• Inspection on bolts
• Inspection with restricted movement, such as on blade roots
• Inspection on butts of ethylene tube
• C-scan on composites
