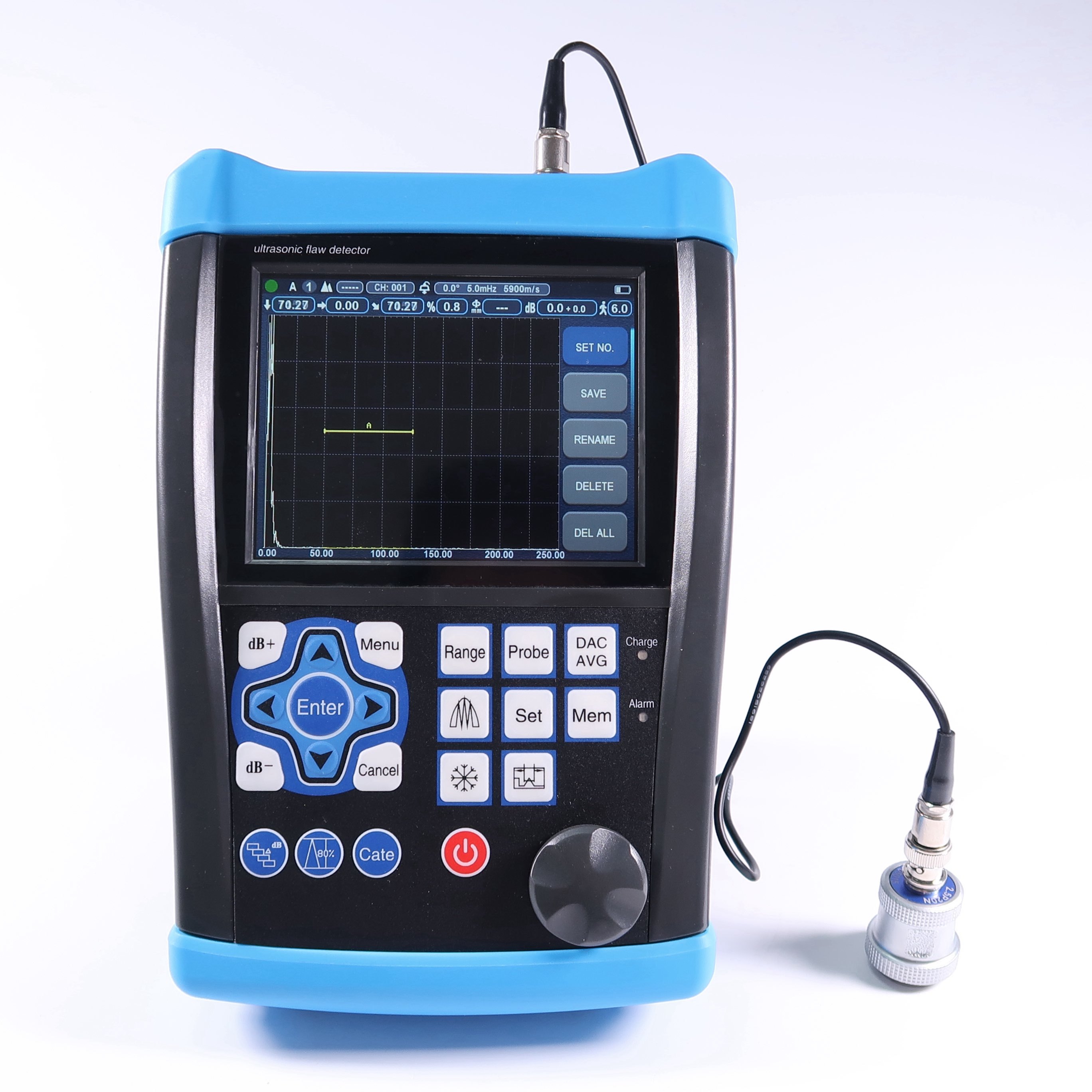

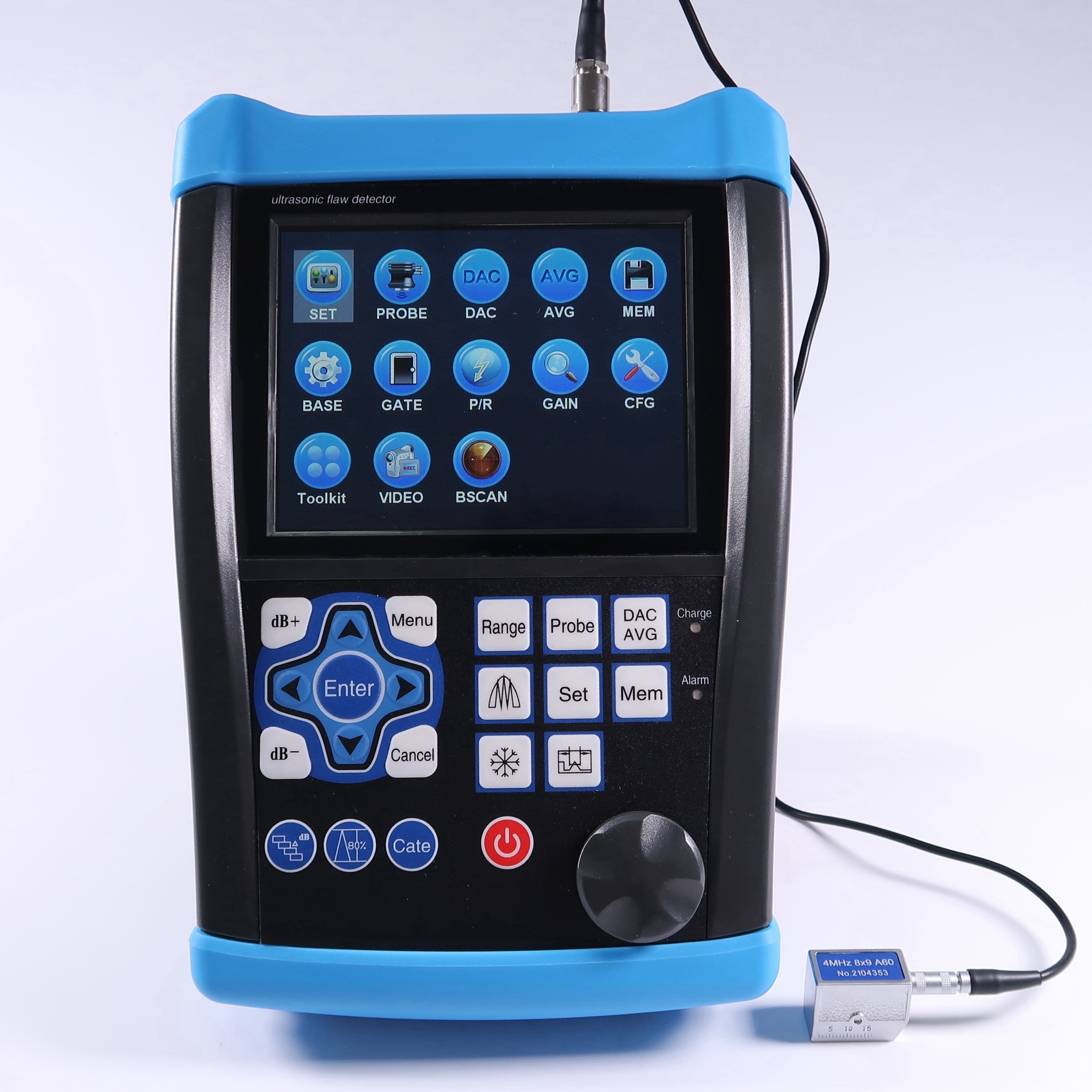

IP65 Waterproof Ultrasonic Flaw Detector TFD810C with Bluetooth Report Printing Portable Flaw Detector

The Ultrasonic Flaw Detector TFD810C is a portable, high-performance inspection instrument engineered for precision flaw detection in demanding industrial environments. Combining advanced signal processing with an intuitive interface, it delivers reliable, accurate results for on-site and laboratory applications alike.

• User-Friendly Interactive Interface — Guided dialog interactions simplify calibration, curve generation, and other routine operations.
• Comprehensive Toolset — Includes DAC, AVG, TCG, color B-scan, AWS, and more, covering all essential inspection functions.
• Precise Pulse Repetition Frequency — Adjustable from 20 to 3000 Hz for high-speed scanning with no missed indications.
• High Signal-to-Noise Ratio — Clear, stable echoes with anti-noise design, ideal for tough working conditions.
• 12-Bit AD & High-Speed Sampling — Produces detailed echo diagrams with excellent sensitivity for detecting even tiny flaws.
• Crystal-Clear True-Color Display — Helpful user interface makes operation straightforward and efficient.
• Real-Time Video Recording — High-speed flaw detection video recording with unlimited USB data storage.
• Bluetooth Connectivity — Connect to mobile devices to generate and print detection reports on-site.
• IP65 Rated Construction — Alloy and silica gel case provides water and dust protection; damping support allows stable positioning at any angle.
• Extended Battery Life — 15 hours per charge; each battery has independent charging control, enabling around-the-clock operation with two batteries.

• Automated display of precise flaw location (Depth d, level p, distance s, amplitude, sz dB, φ).
• Flaw sizing: automatic flaw sizing using AVG/AVG or DAC, speeding reporting of defect acceptance or rejection.
• Automated calibration of transducer zero-point, angles, front edge, and material velocity.
• Convenient creation and use of DAC and AVG to evaluate echoes; curves can be modified and compensated.

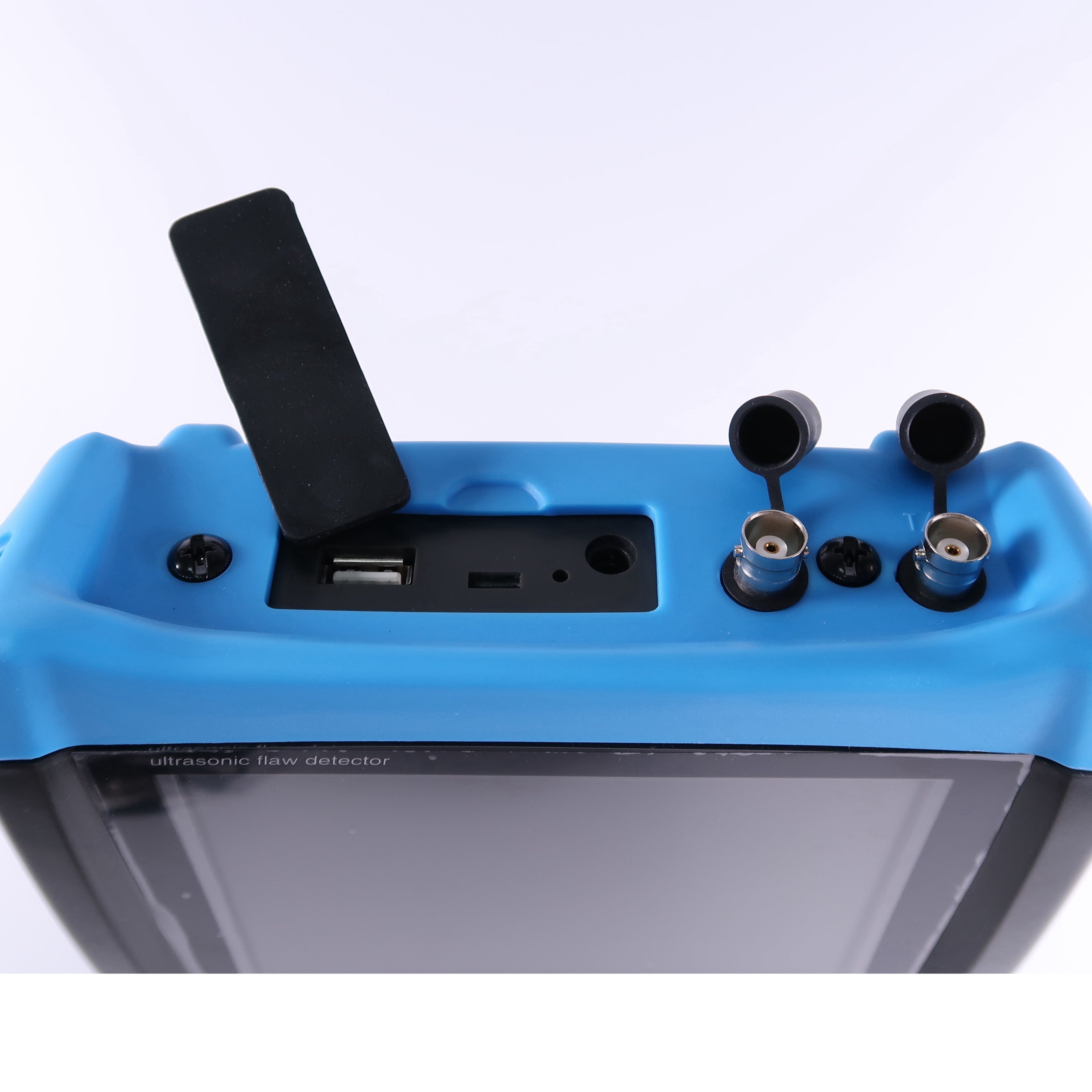

• Connecting a U-disk provides unlimited memory.
• Automated video recording of the test process and playback; using a U-disk, video length is unlimited.
• Color B-scan.
• 15 standards built into the unit.
• Bluetooth connection to mobile devices to generate and print detection reports on-site.
• AWS D1.1.
• Curved Surface Correction feature.
• Crack Height Measure function.
• Magnify gate: spreading of the gate range over the entire screen width.
• Auto-gain function.
• Envelope: simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display.
• Peak Hold: compare frozen peak waveforms to live A-scans to easily interpret test results.
• Scan Freeze: display freeze holds waveform and sound path data.
• Alarm: beep and LED.
• Real Time Clock.
• Fill echo.
• Capture mark.
• Echo color within the gate.

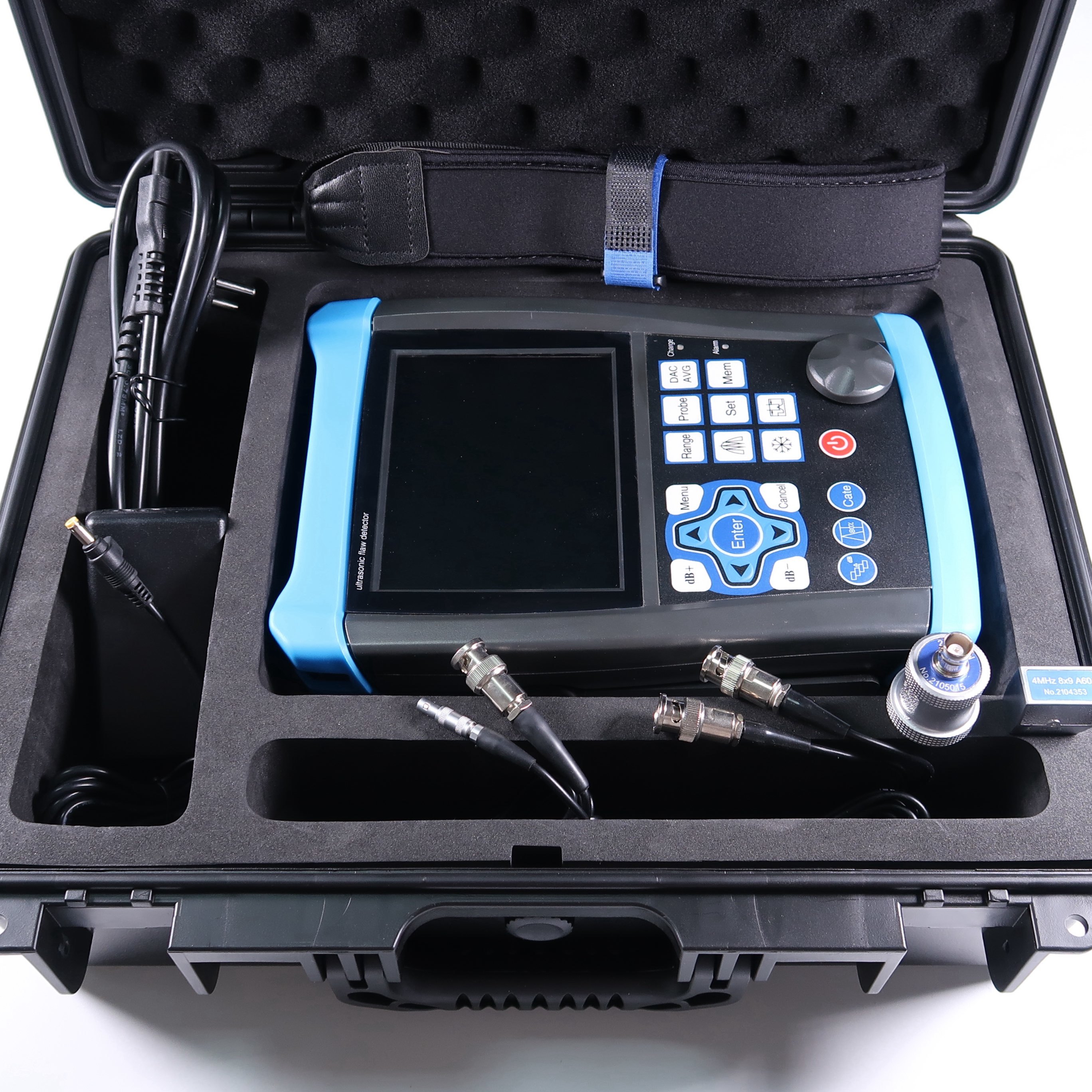

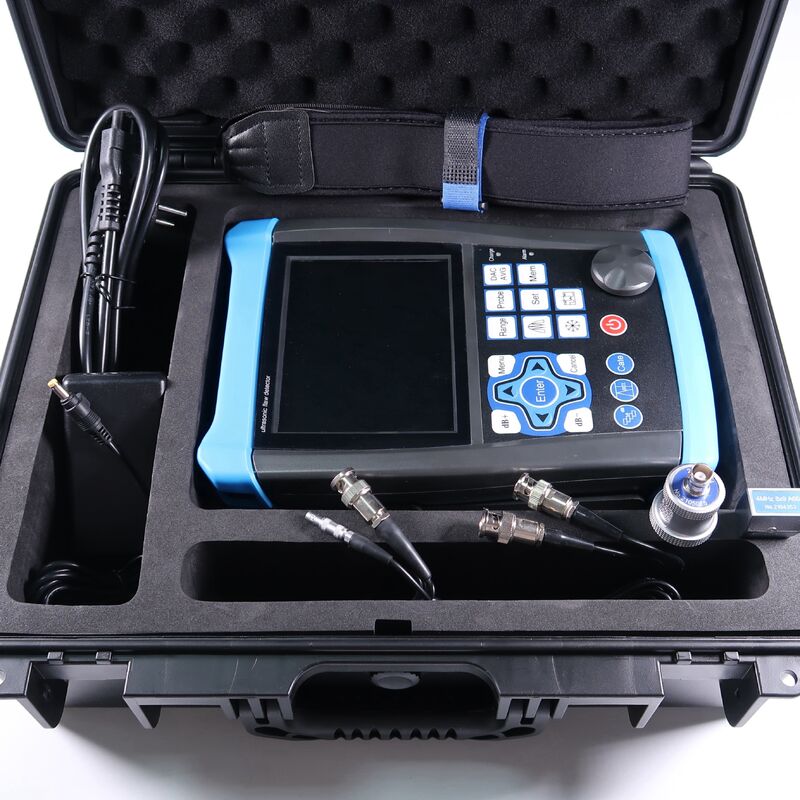

• Portable Ultrasonic Flaw Detector
• Straight Beam Transducer (4 MHz, Φ10)
• Angle Beam Transducer (4 MHz, 8 mm * 9 mm, 60°)
• Interconnect Cable for the transducer (Q9-C5, or optional C9-C5)

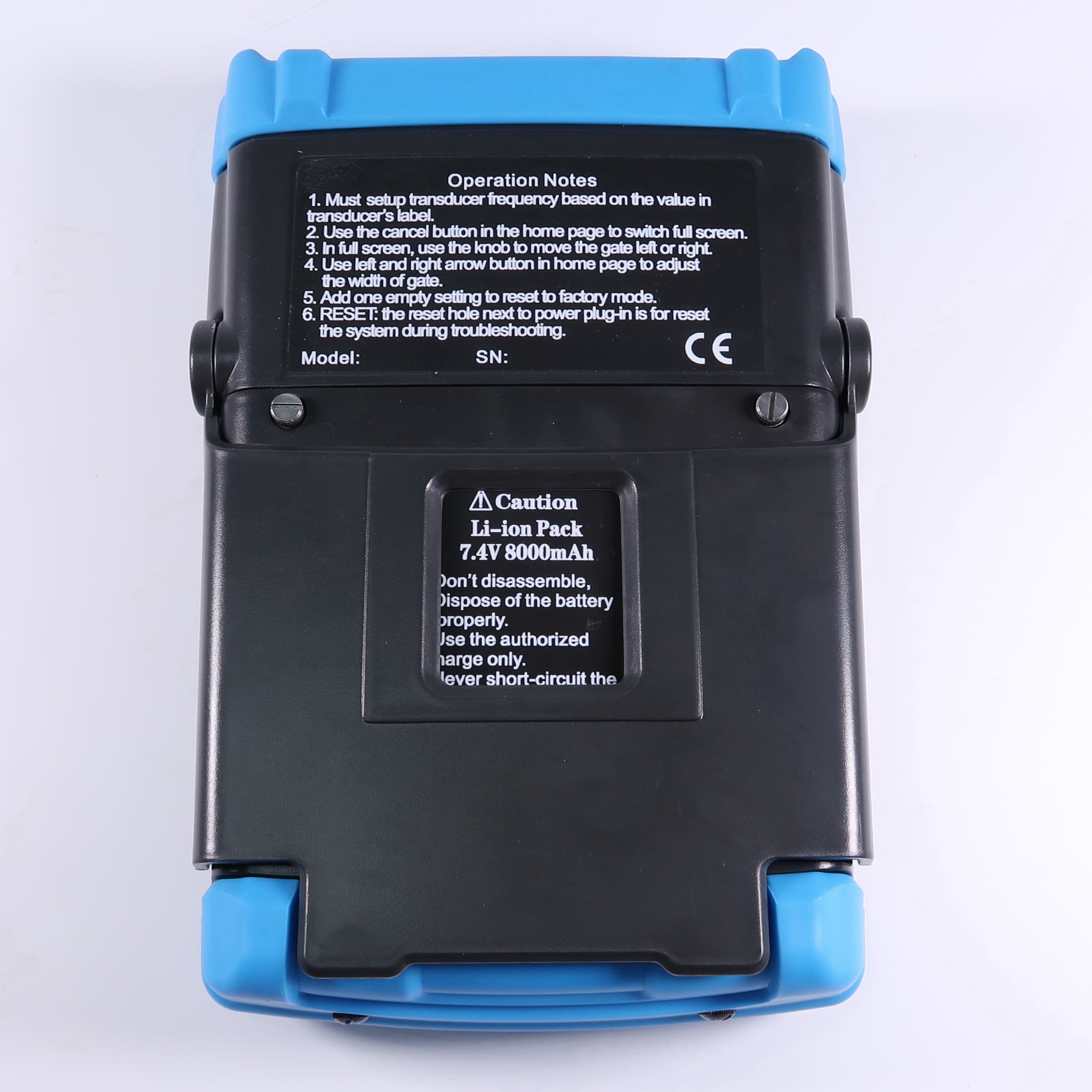

• Rechargeable Li-Ion Battery Package, 8 amp hour
• Power supply / charger unit
• Operating Manual in English
• App Software
• Strap
