Single Element Transducer Ultrasound Contact Membrane Probe Straight Beam Combination Ceramic Face Protect

Basic Information

Place of Origin:	China
Brand Name:	TMTeck
Model Number:	BD

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	4-6 work days
Payment Terms:	T/T, Western Union,paypal
Supply Ability:	100pcs/ one week

Get Best Price Contact Now

Detail Information

Type:	Ultrasonic Transducer	Condition:	100%new
Frequency:	0.5,1,2 Or 4 MHz	Connector:	Lemo00 Or Lemo 01
Crystal Diam Size:	12mm ,20mm,24mm
Highlight:	high power ultrasonic transducer , ultrasonic transducer probe

Product Description

CONTACT MEMBRANCE Probe
Single Element Euro Style Straight Beam Contact Transducers
Combination Ceramic Face + Protective Membrane

Features:

● Good resolution and sensitivity

● Ceramic contact face like normal contact face

● Membrane optional For

12mm probe

20mm probe

24mm probe

● BD type: frequency0.5,1, 2 and 4MHZ

crystal diam size:12mm,20mm,24mm

Standard Connector: lemo00 or lemo01

Beijing Limin Precision Instrument Co., Ltd a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,Limin has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.

Parameter:

Model	Frequency MHz	Crystal Dia. mm	Standard Connector
BD-212	2	12	Lemo 00
BD-412	4	12	Lemo 00
BD-220	2	20	Lemo 00
BD-420	4	20	Lemo 00
BD-0524	0.5	24	Lemo 1
BD-124	1	24	Lemo 1
BD-224	2	24	Lemo 1

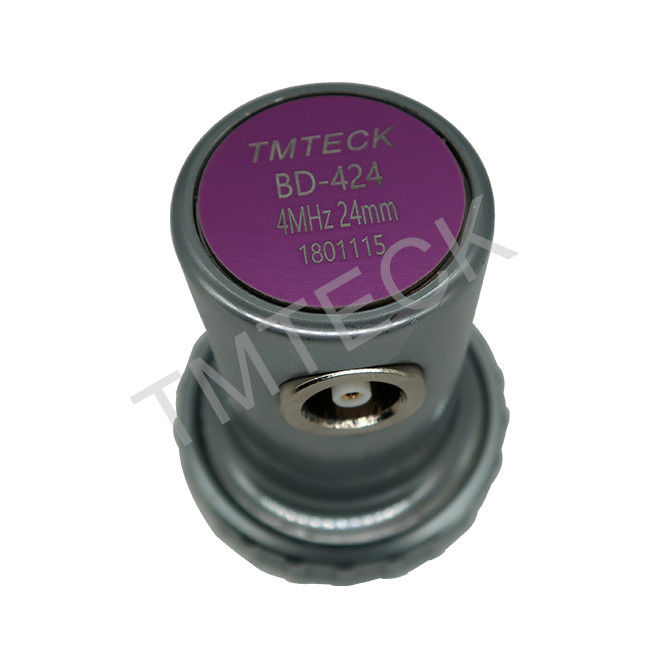

BD-424	4	24	Lemo 1
