Type: | Ultrasonic Transducer | Condition: | 100%new |
---|---|---|---|
Frequency: | 5 MHz | Connector: | 2x Lemo-00 |
Probe Type: | Dual | ||
Highlight: | high power ultrasonic transducer,ultrasonic transducer probe |

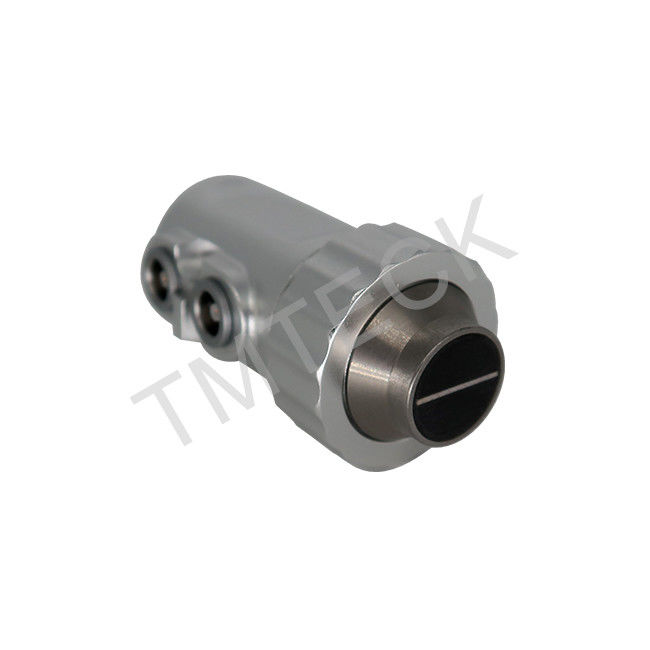

EQUV. GE MODEL DA301 ULTRASONIC Probe 5MHZ 3/4 INCH straight beam probe transducer
Probe Model: DA301
S/N.:
Probe Parameters
Probe Frequency:5Mhz
Crystal Dimension:10mm
Center Frequency:4.93MHZ
Diameter contact surface (mm):12.5mm
Measuring range (mm):1.2 – 200mm
Connection:2x Lemo-00
Connection position;Side
Amount of christals:2
Sensitivity:27dB
Bandwidth(-6dB):38%
Temp.:-5—50C
Probe Type:Dual
Connector Type: Lemo00
Test Device
PR/AD: UsUltratek
Type: PCI3100
Damping:60 Ohm
Voltage:300V
Gain:36 dB
model | EQUV. GE MODEL DA301 |
Frequency | 5Mhz |
Center Frequency | 4.93MHZ |
Crystal Dimension | 10mm |
Sensitivity | 27dB |
Type | Straight beam probe |
Diameter contact surface | 12.5mm |
Measuring range | 1.2 – 200mm |
Connection type | 2x Lemo-00 |
Connection position | side |
Amount of christals | 2 |
Bandwidth(-6dB) | 38% |
Temp | -5—50C |
Probe Type | Dual |
