| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Model Number: | TWB |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton |
| Delivery Time: | 4-6 work days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100pcs/ one week |
| Type: | Ultrasonic Transducer | Condition: | 100%new |
|---|---|---|---|
| Frequency: | 5 And 1.5 MHz | Connector: | Microdot Equivalent |
| Highlight: | high frequency ultrasonic transducer,high power ultrasonic transducer |
||

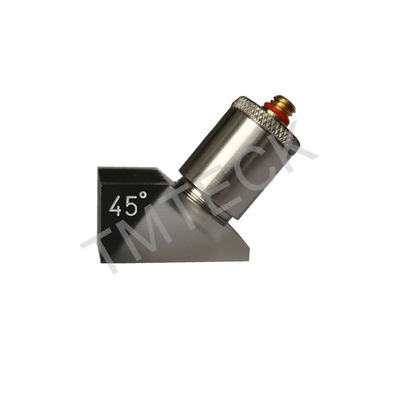

TWB SCREW-IN WEDGE TYPE ANGLE BEAM PROBE
General weld inspection ,smaller object,thinner section Tube pipes ,pressure vessels,containers Pumps,value housing Wheel rimsread
Applications
- General weld inspection,smaller object,thinner section
- Tube,pipes,pressure vesseis,containers
- Pumps,valve housing
- Wheel rims
Features:
- Good Resolution and Sensitivity
- Custom wedge angel and curvatures can be special ordered
- Both quick change and screw mounted style available
- Microdot or Subvis connector top mount
| Type | Frequency MHz | Crystal Size inch | connector |
| TWB-2.25-1/4 | 2.25 | 1/4 | Microdot equivalent |
| TWB-5-1/4 | 5 | 1/4 | Microdot equivalent |
| TWB-10-1/4 | 10 | 1/4 | Microdot equivalent |
| TWB-2.25-3/8 | 2.25 | 3/8 | Microdot equivalent |
| TWB-5-3/8 | 5 | 3/8 | Microdot equivalent |
| TWB-10-3/8 | 10 | 3/8 | Microdot equivalent |
| TWB-1.5-1/2 | 1.5 | 1/2 | Microdot equivalent |
| TWB-2.25-1/2 | 2.25 | 1/2 | Microdot equivalent |
| TWB-5-1/2 | 5 | 1/2 | Microdot equivalent |
| TWB-10-1/2 | 10 | 1/2 | Microdot equivalent |
