Immersion Transducer Probes Test Partially Or Wholly Immersed In Water

Basic Information
Place of Origin: China
Brand Name: TMTeck
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100pcs/ one week
Detail Information
Type: Ultrasonic Transducer Condition: 100%new
Frequency: 1,2 ,2.25 ,4 ,5 ,10 ,15 MHz Advantages: Immersion Technique

Product Description

Immersion Transducers, the probe that can make test partially or wholly immersed in water

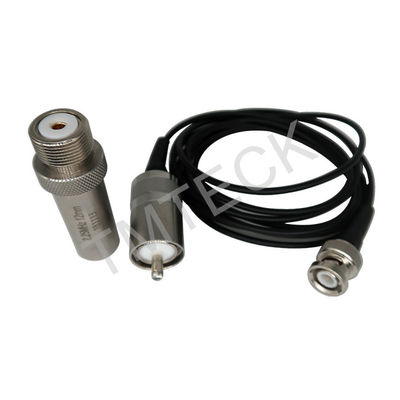

Immersion Transducer Probes Test Partially Or Wholly Immersed In Water 0



Features:

An immersion tansducer is a single element longitudinal wave transducer with a 1/4 wavelength layer acoustically matched to water. Immersion transducer are specifically designed to transmit ultrasound in applications where the test parts are partially or wholly immersed in water, which allows a uniform and fast coupling technique for rapid scanning of parts. Focusing lens can be added to increase transducer sensitivity and performance in a particular area of part. Immersion transducer can be flat, focused either spherically or cylindrically upon request within the allowable focal range for a given frequency and element size.
Advantages:
The immersion technique provides a means of uniform coupling
 Quarter wavelength matching layer increases sound energy output
Corrosion resistant 303 stainless steel case with chrome-plated brass connectors
Proprietary RF shielding for improved signal-to-noise characteristics in critical applications
All immersion transducer, except paintbrush, can be focused spherically (spot) or cylindrically (line)
Customer specified focal length concentrates the sound beam to increase sensitivity to small reflectors

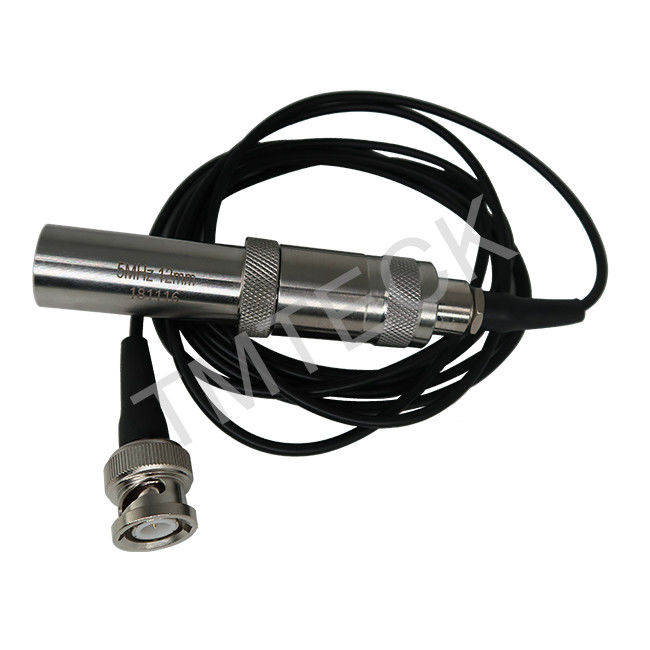

Immersion Transducer Probes Test Partially Or Wholly Immersed In Water 1

Note: All Focus Probe need special made depending of the specification. Following only list our standard flat immersion probes

Immersion Transducer Probes Test Partially Or Wholly Immersed In Water 2

Real time waveform and frequency certification is included with every transducer at no charge

Immersion Transducer Probes Test Partially Or Wholly Immersed In Water 3

TMTeck P/N Frequency MHz Crystal Dia.mm
1-100-12 1 12
1-100-20 1 20
1-100-24 1 24
1-200-12 2 12
1-200-20 2 20
1-200-24 2 24
1-225-12 2.25 12
1-225-20 2.25 20
1-225-24 2.25 24
1-400-12 4 12
1-400-20 4 20
1-400-24 4 24
1-500-10 5 10
1-500-12 5 12
1-500-20 5 20
1-500-24 5 24
1-1000-6 10 6
1-1000-10 10 10
1-1500-6 15 6
1-1500-10 15 10
