Universal Hardness Tester Vickers Brinell Rockwell Astm Brinell Hardness Testing

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: HBS-3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 6-10 Work days
Payment Terms: T/T, Western Union
Supply Ability: 10PCS/Two weeks
Detail Information
Measurement Range: 5-650HBW Max Height Of Sample: 230mm
Distance From Indenter Center To Machine Wall: 165mm Hardness Value Resolution: 0.1
Touch Screen Size: 8 Inch
High Light:

brinell hardness machine

,

brinell hardness test equipment


Product Description

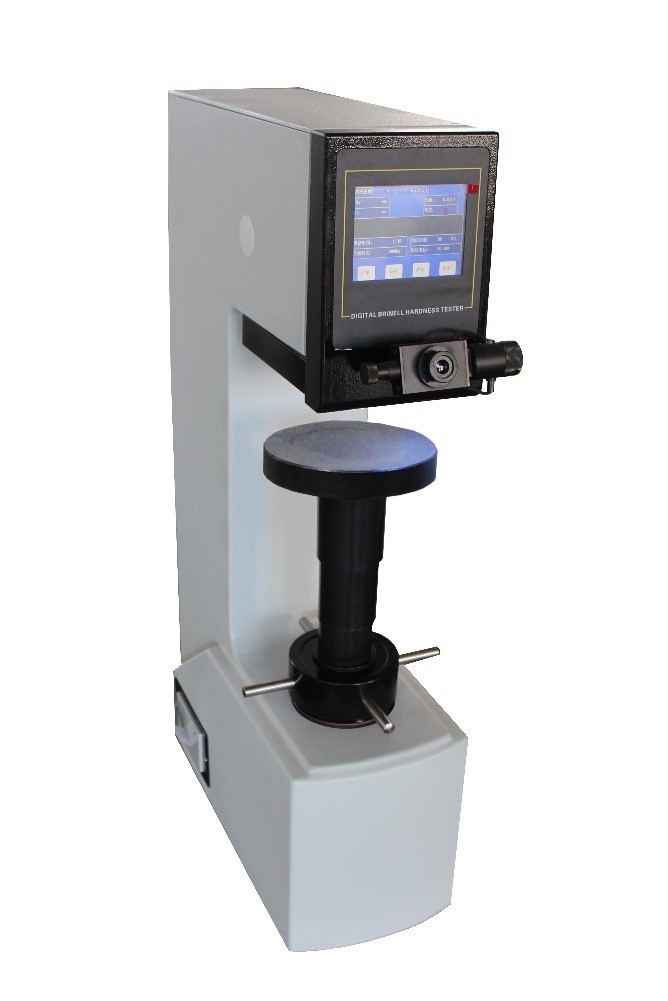

HBS-3000 Brinell Hardness Tester

Feature:

The digital Brinell hardness tester is to use a steel ball of a certain diameter to press on the substance surface to be tested with specified test force. Through the specific time of holding test force, remove it and measure the diameter of the indentation of the specimen surface with reading microscope. Take the two points d1 and d2 and input them and on the LCD screen appears the Brinell hardness value.



Use:

Brinell hardness test is mainly used in hardness measurement for cast iron, steel products, nonferrous metals and soft alloys, etc. Besides it can be also used in hardness measurement for some non-ferrous materials, such as plastics, bakelite, etc. It is applicable to factory, workshop, laboratory, university and college, and scientific research institution.



Test Force

612.9N (62.5kg) 4903N(500kg) 980.7N (100kg) 7355N (750kg) 1226N (125kg) 9807N (1000kg)

1839N (187.5kg) 14710N (1500kg) 2452N (250kg) 29420N (3000kg)

Hardness Measurement Range 8~650 HBW
Amplification of Reading Microscope 20 times
Minimum Division Value of Micrometer Drum Wheel 0.00125mm
Max. height of test piece 280mm
Depth of throat 165mm
Voltage of Power Source 700 x 268 x 842mm
Weight 130KG



Value –Indicating precision:

Standard hardness test block Max error of the indicated value% Repetition error of the indicated value%
≤125 ±3 3
125<HBW≤225 ±2.5 2.5
>225 ±2 2



Standard accessories

Large flat anvil 1 pc.
Small flat anvil 1 pc.
V-notch anvil 1 pc.
Tungsten carbide ball penetrator Φ2.5, Φ5, Φ10mm, 1 pc. each
Brinell standardized block 2 pcs.
20x reading microscope 1 pc.
Spare Fuse(2A) 2pcs



Optional accessories:

Rectangle work table: 400 x 150 x 30 mm Brinell video measuring system
Brinell CCD image processing system
