Angle Beam Probe High Temperature Up To 120° Ultrasonic Transducer Normal Crystal

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: ABC
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100pcs/ one week
Detail Information
Type: Ultrasonic Transducer Condition: 100%new
Frequency: 2 Or 4 MHz Connector: Lemo 00
Highlight:

High Temperature Ultrasonic Transducer

,

120° Ultrasonic Transducer

,

Angle Beam Probe Ultrasonic Transducer


Product Description

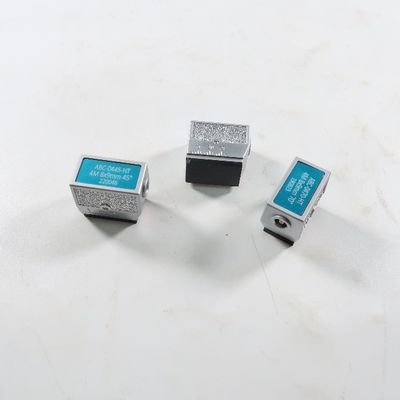

Angle Beam High tempeture ultrasonic Probe,ultrasonic transducer with Lemo 00 equivalent connector


Parameter:



Model Frequency Mhz Size (mm) Angle
ABC-0245 2 8 X 9 45
ABC-0260 2 8 X 9 60
ABC-0270 2 8 X 9 70
ABC-0445 4 8 X 9 45
ABC-0460 4 8 X 9 60
ABC-0470 4 8 X 9 70




Features:
Band width 45-55% at - 6dB
Sensitivity better than KK 6-8dB more
Lemo 00 equivalent connector are standard.


Angle Beam Probe High Temperature Up To 120° Ultrasonic Transducer Normal Crystal 0Angle Beam Probe High Temperature Up To 120° Ultrasonic Transducer Normal Crystal 1
