Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES

Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES
Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES
Basic Information
Place of Origin: China
Brand Name: TMTeck
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100pcs/ one week
Get Best Price Contact Now
Detail Information
Highlight:

Line Focused Composite Probes

,

Ultrasonic Transducer Probes

,

TMTECK Karl Deutsch Probes

Product Description

Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES



Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES



Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES



Line Focused Composite Probes TMTECK MADE EQUVI. KARL DEUTSCH PROBES







Line focused composite probes

TMTECK MADE EQUVI. KARL DEUTSCH PROBES





Composite probs for testing of tubes and bars:



Technical meaning of the part codes:





TSC = immersion composite type W = soft matching layer
z = focal distance in water (mm) B = extended bandwidth
φ = beam aperture angle f = nominal frequency

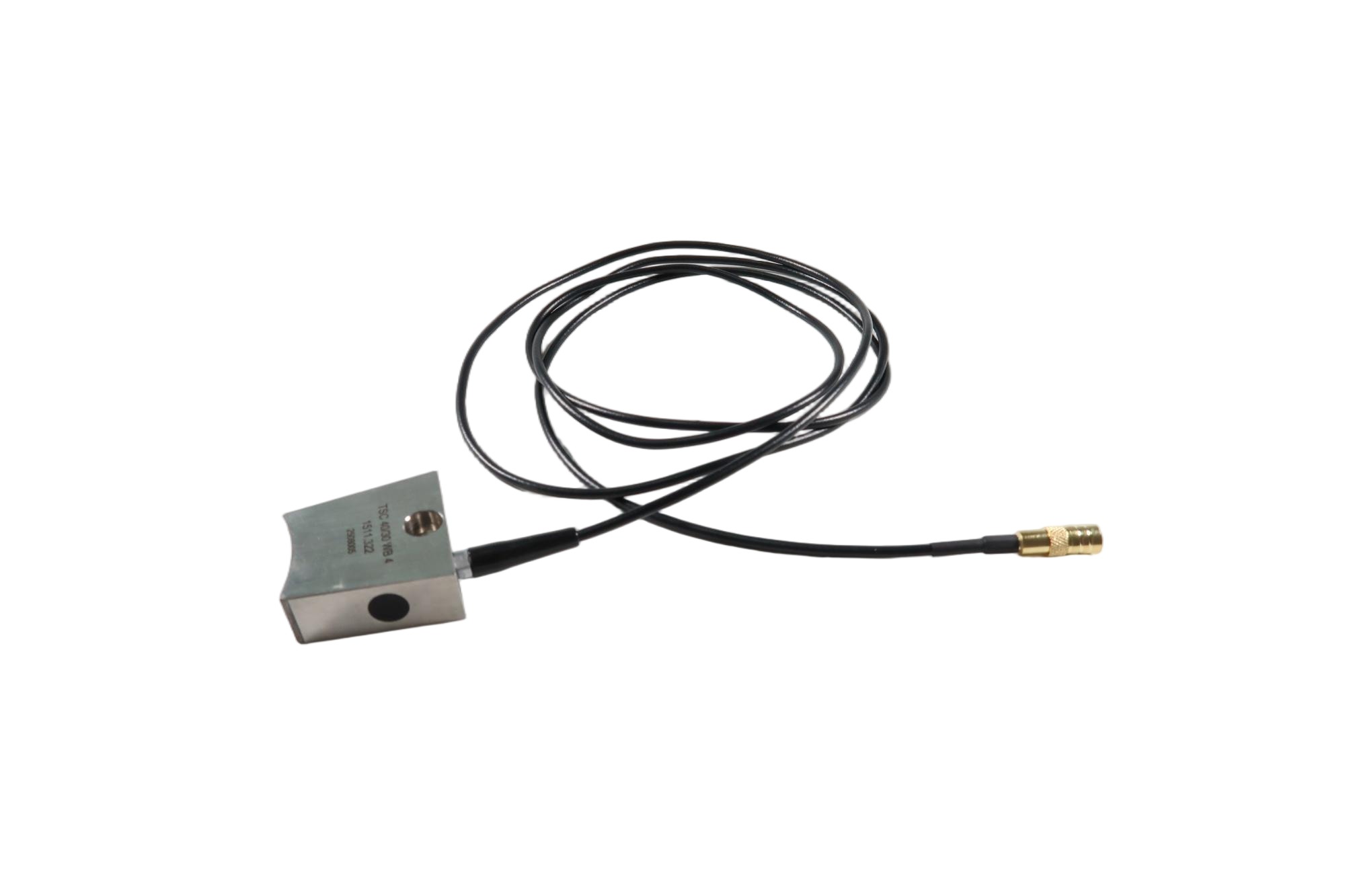

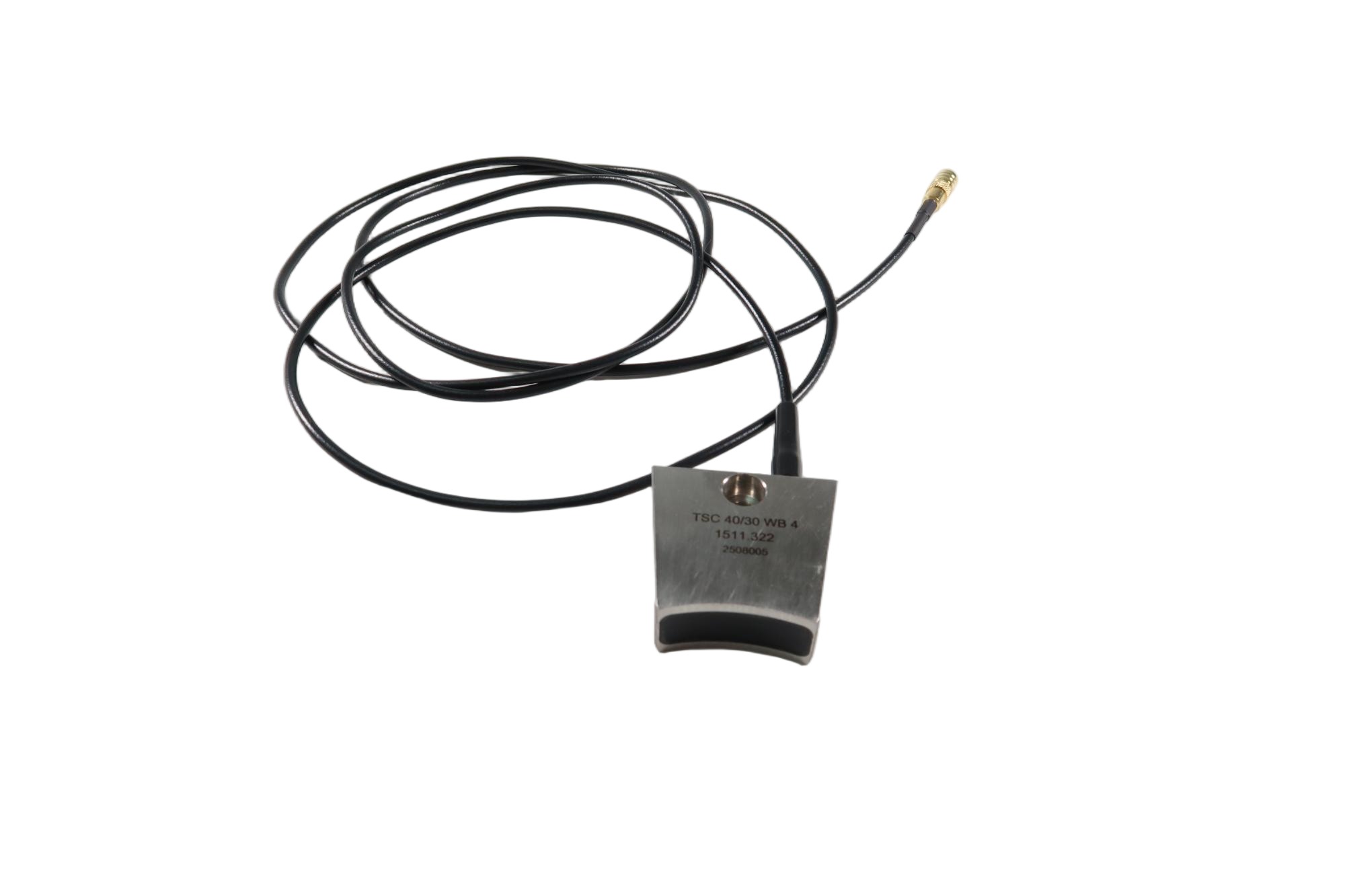

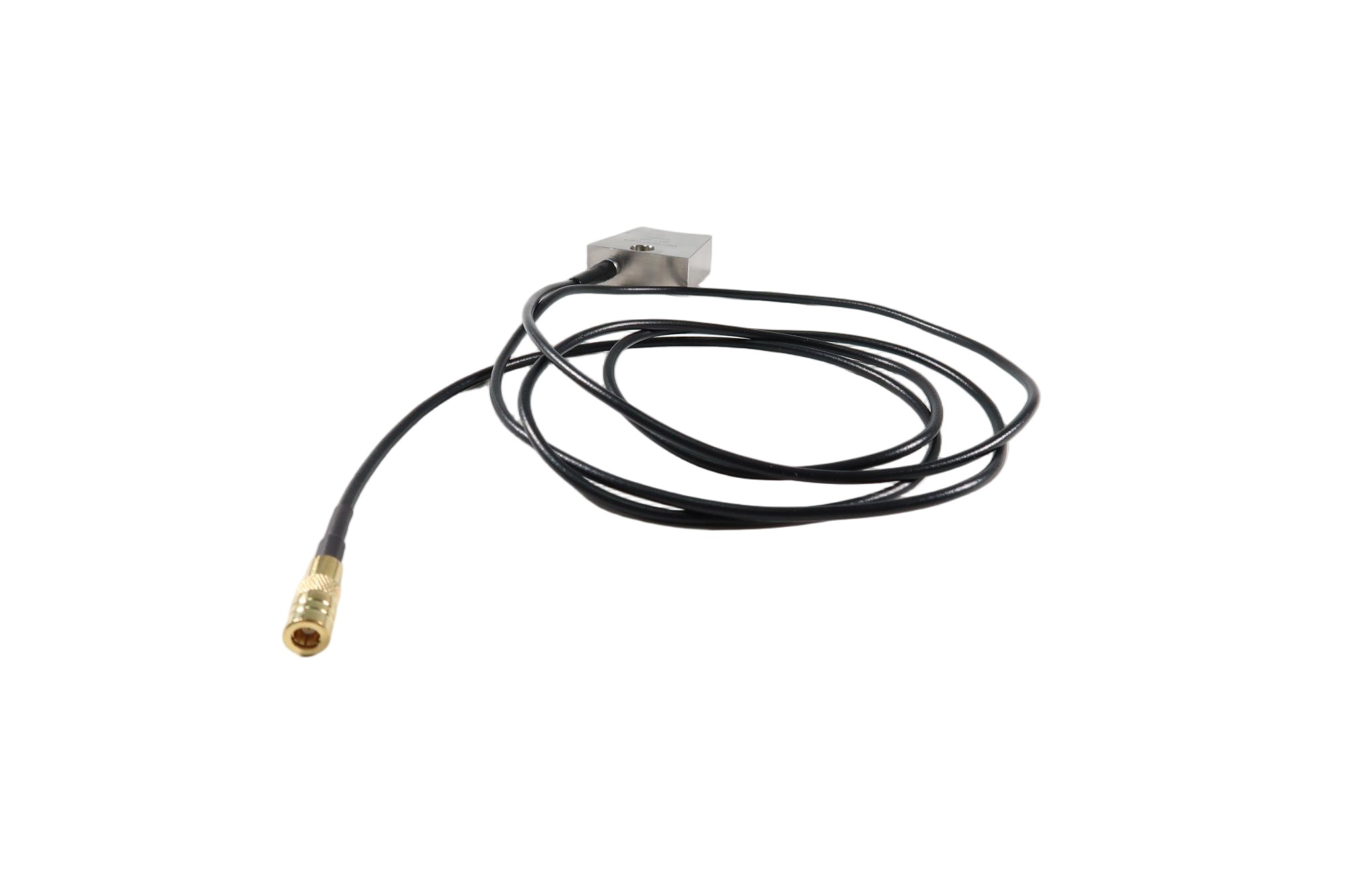

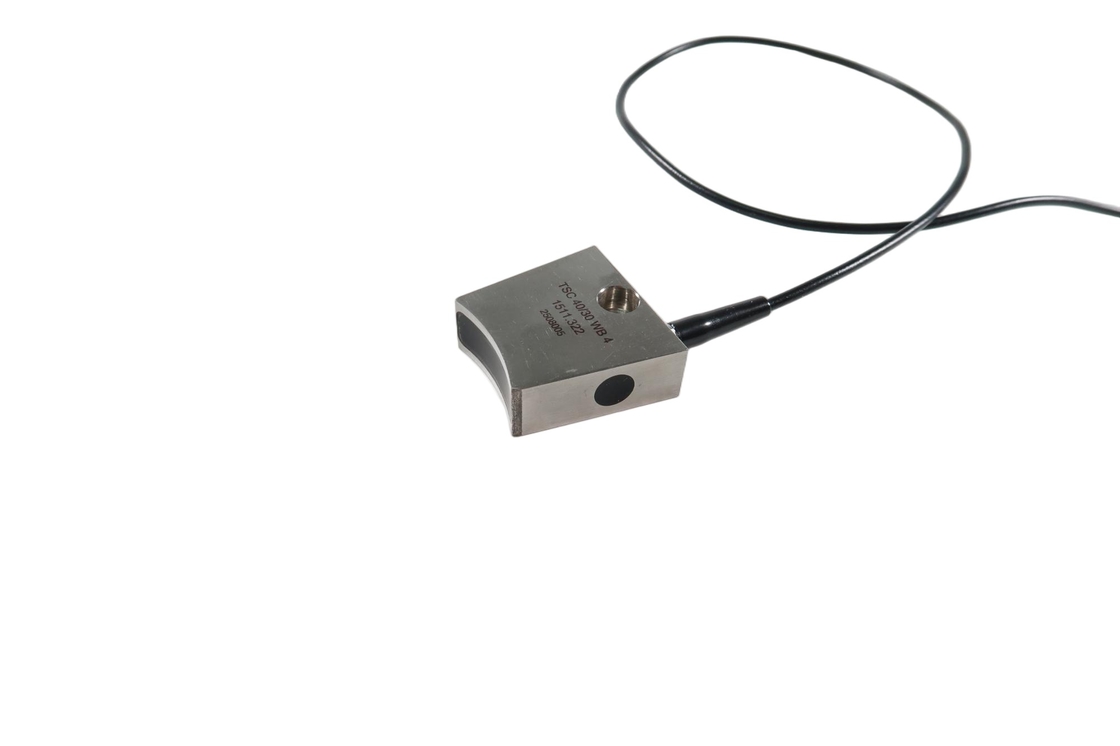

(Rectangular stainless steel housing, 1.3 m cable, SMB-plug)

Housing dimensions

Part code

TSC Z/φ WB f
15.5 x 33 x 13 mm TSC 20/30 WB 4

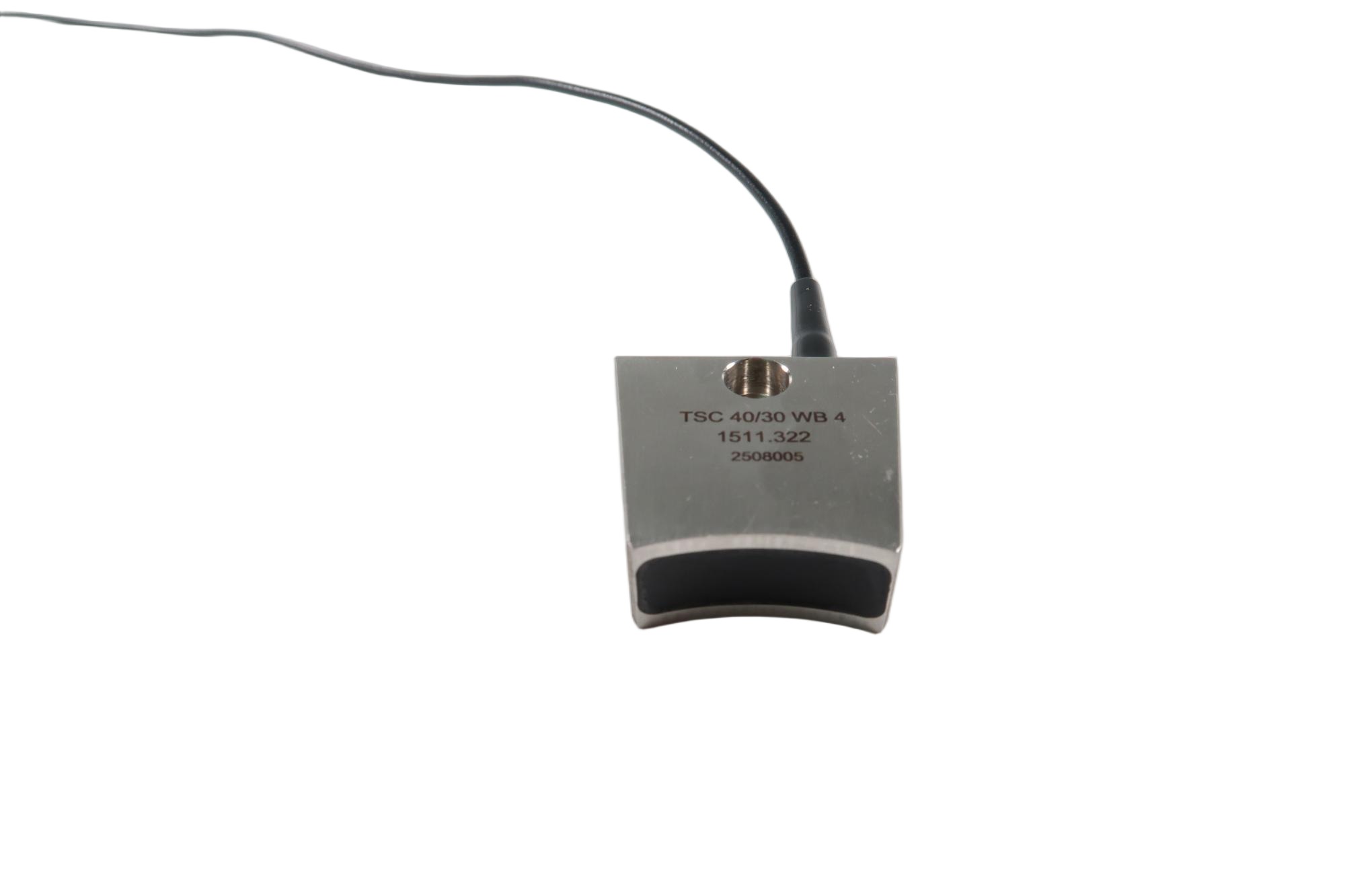

37/29 x 34 x 13 mm TSC 40/30 WB 4
37 x 34.5 x 13 mm TSC 60/30 WB 4
50 x 36 x 13 mm TSC 85/30 WB 4
64 x 36 x 13 mm TSC 130/25 WB 4
