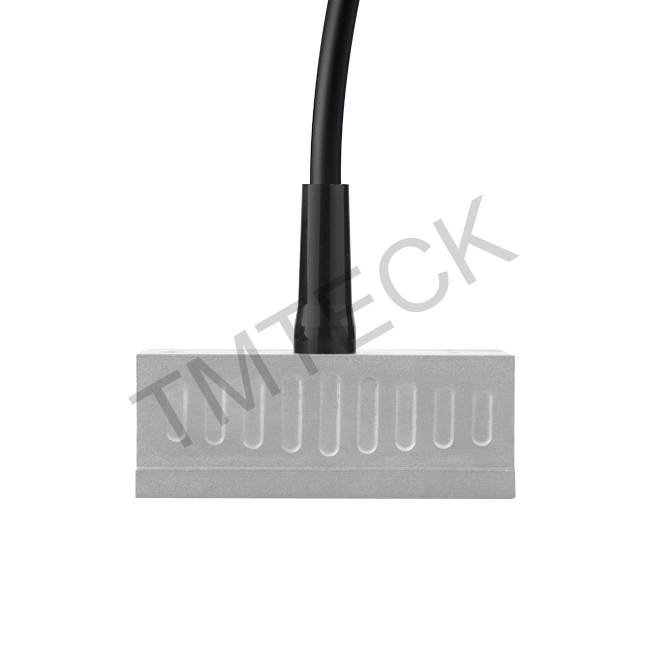

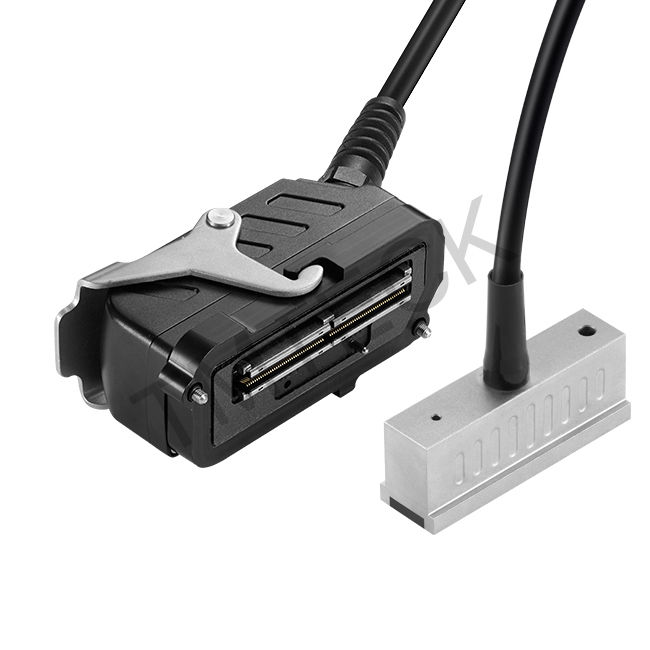

Composite Plate Inspection Ts13 Near Wall Probe

Near-wall narrow-shell probe: small width ensures a easy near-surface resolution.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Near-wall probes have shorter dead zones at both ends

3.Widely used in composite channel inspection

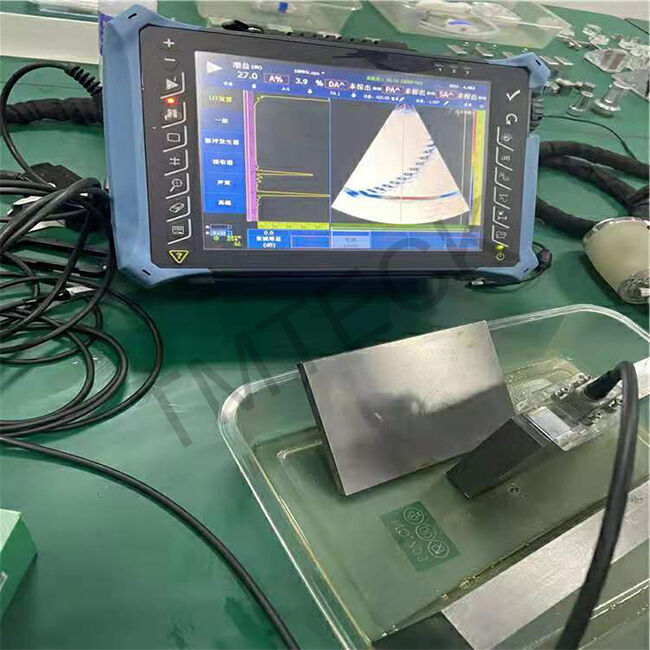

4.Can be used for C-scan detection of composites (delamination, debonding and porosity)

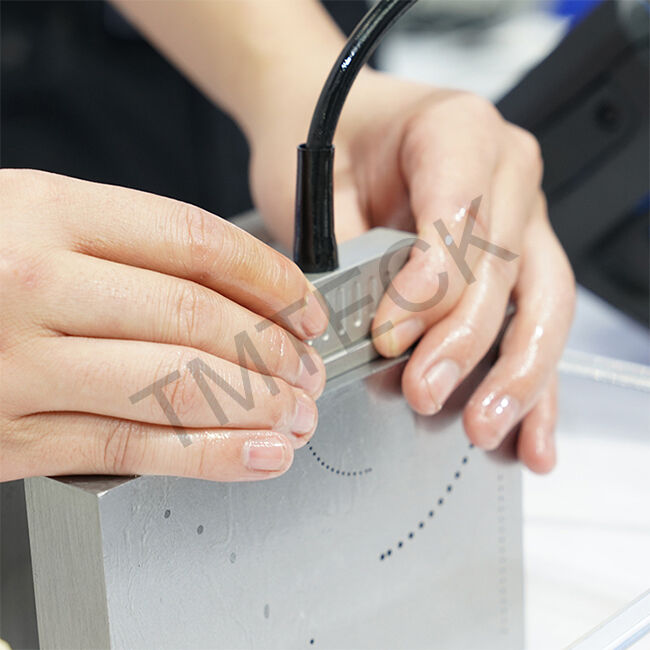

5.Automatic and manual scanning

Applications

1.Composite plate inspection

2.Immersion scanning area coverage

3.Plates, billets and bars

4.Disks, axles and shafts

Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:1L32-2.0x7-TS13/1L32-64x7-NW1

Element:32

Element Shape:linear

Size:LxWxH 66x19x25(mm) 2.60x0.75x0.98(in)

Application:Composite plate inspection

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
