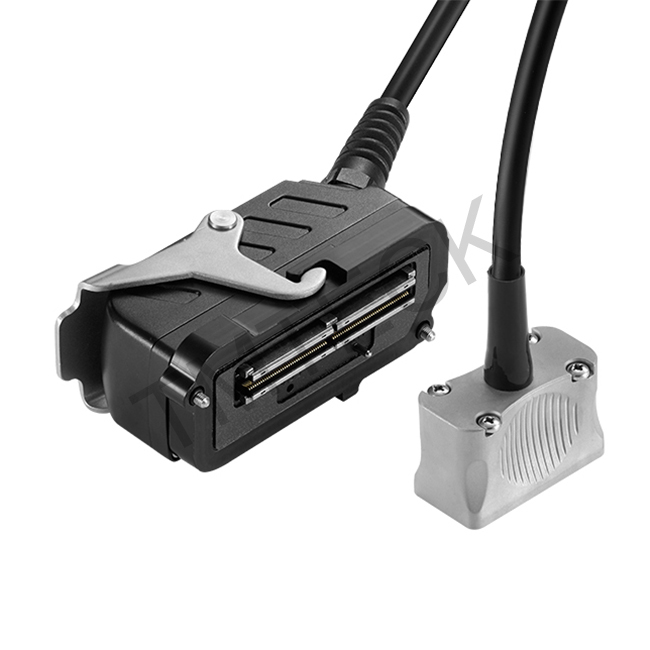

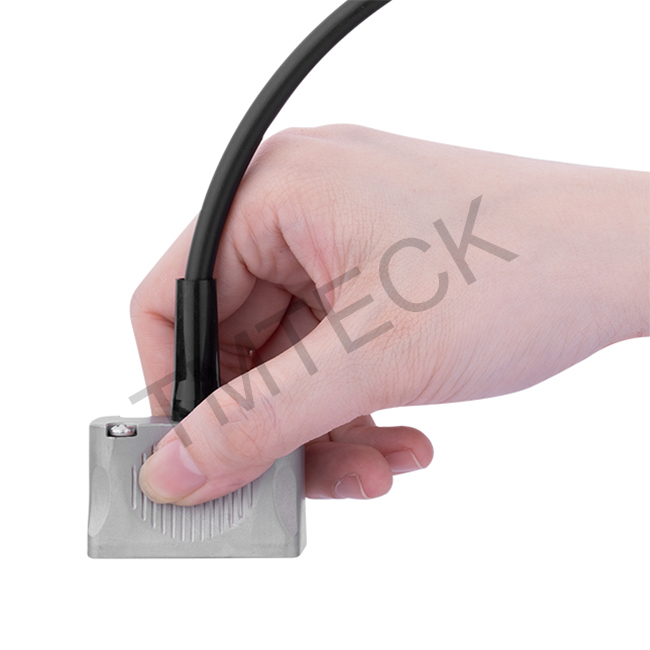

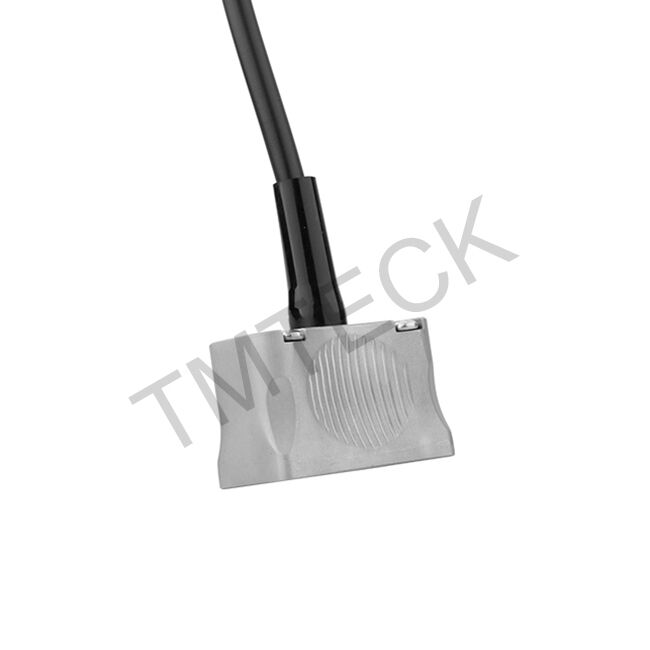

Weld raw material testing TS8 A12 Corrosion Probes

Corrosion Probes: Corrosion Probes detect wall thickness reduction caused by corrosion, erosion, etc., and can detect damage in the wall.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.The combination of s19 and s20 can automatically detect the girth weld, which is suitable for manual or automatic inspection of pipeline welds.

3. S20 is internal focus probeto optimize the signal to noise ratio

4.Good beam energy in the detection of small pipe/thin wall samples

5.Acoustic, can be matched with Rexolite, can complete most angles of sound beam

6.Can detect thick flat materials and welds, forgings, noise or granular materials

Applications

1. Oil and gas: oil pipelines, bottles, tanks, etc.

2. Electricity: pressure vessels and pipelines, turbine blades, rotor monitoring, etc.

3. Other: testing of thick welds, pipe welds, etc.

Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Wedge Specification

Quick Details

Model Number:7.5L64-0.6x10-TS8/7.5L64-38.4x10-A12

Element:64

Element Shape:Linear

Size:LxWxH 44.5x22.5x28(mm)1.75x0.88x1.1(in)

Warranty:12 Months

Case:Stainless steel

Application:Weld raw material testing

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
