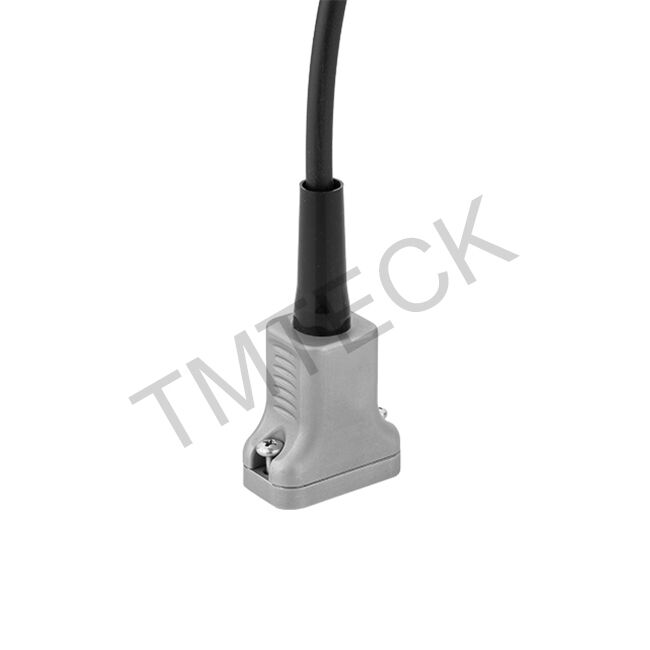

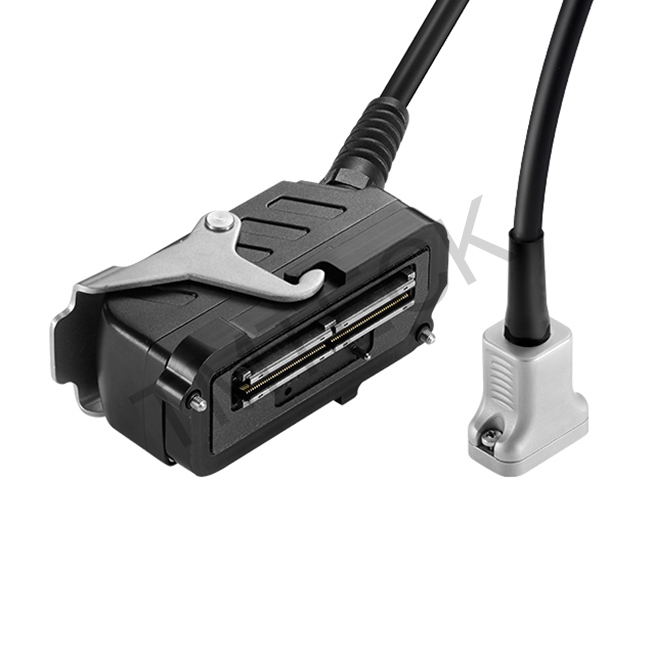

TS10 2D Matrix Array Probe

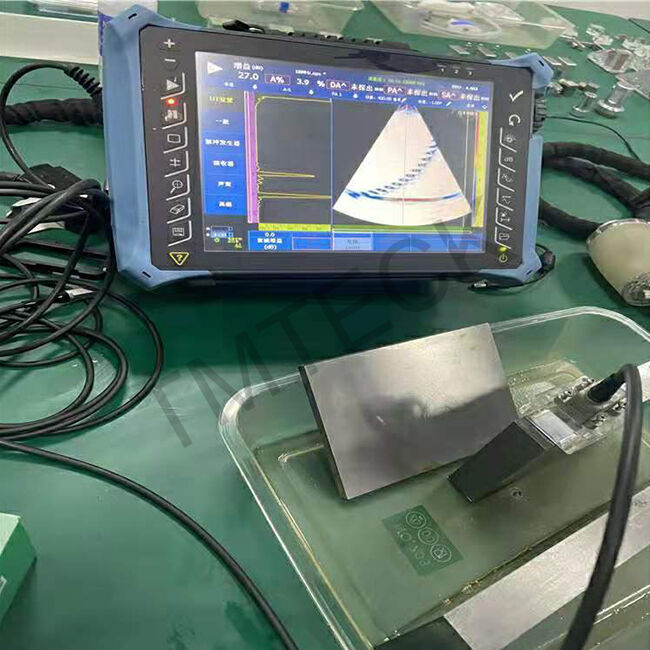

2D Matrix Array Probe: 3D spatial focusing, could use for immersion detection

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Suitable for soft and thick attenuating materials

3.Can be used for 3D imaging

4.Lightweight and flexible, easy to carry, easy to measure

5.High energy concentration and high signal to noise ratio

6.Widely used for glue testing

Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:5M8x8-1.5x1.5-TS10

Element:64

Element Shape:2D Matrix

Size:LxWxH 31x18x34(mm)1.22x0.71x1.34(in)

Application:Suitable for soft and thick attenuating materials

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
