TMV120 Backlit USB Portable Vibration Meter Two Button Batteries

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE
Model Number: TMV120
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 4-7 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20PCS/Two weeks
Detail Information
Warranty: 2years Accuracy: ±5% ± 2digits
Display: 3 1/2 Digits LCD Power Supply: Two Button Batteries(LR44 Or SR44)
Operating Temperature: 0℃ ~ 40℃ Humidity: <85%
Dimension: 150mm×22mm×16mm Name: TMV120 Backlit USB Portable Vibration Meter Two Button Batteries
High Light:

usb portable vibration meter

,

backlit portable vibration meter

,

two button batteries portable vibration tester


Product Description

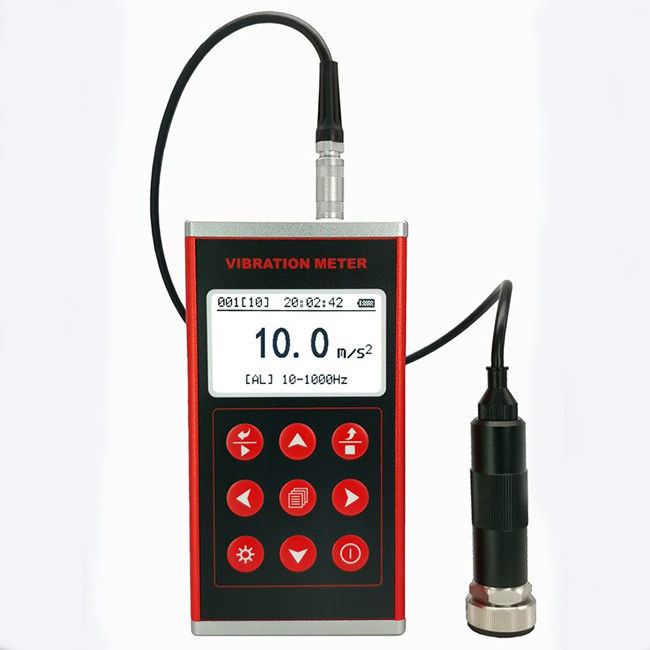

TMV120 Portable Vibration Meter





[Introduction]

TMV120 portable vibration meter is suitable for routine vibration measurement, especially in reciprocating machinery vibration measurements. It can not only measure the vibration acceleration, velocity or displacement, but also for rotational speed measuring. In addition, It can measure the frequency or rotation rate of vibration.

This product use optimized-filtering method to ensure stable and accurate measurement indication in multi-interference measurements environment. And the product of smart appearance, white backlit display is easy to use in complex environment.

[Features]

  • All English display, easy to operate. White backlight for better operation in the dark.
  • It is suitable for acceleration Peak data, velocity RMS data and Displacement Peak-Peak data measurement.
  • The frequency or rotation rate can be measured
  • Storage up to 100 points (10 data per point), a total of 1000 data and time.
  • Warning limit can be preset. Alarm when the measuring value exceeds the warning limit.
  • Provid high-performance rechargeable Li battery and charging control circuit inside with extra-long working and standby time. Battery sign, display the current remaining capacity.

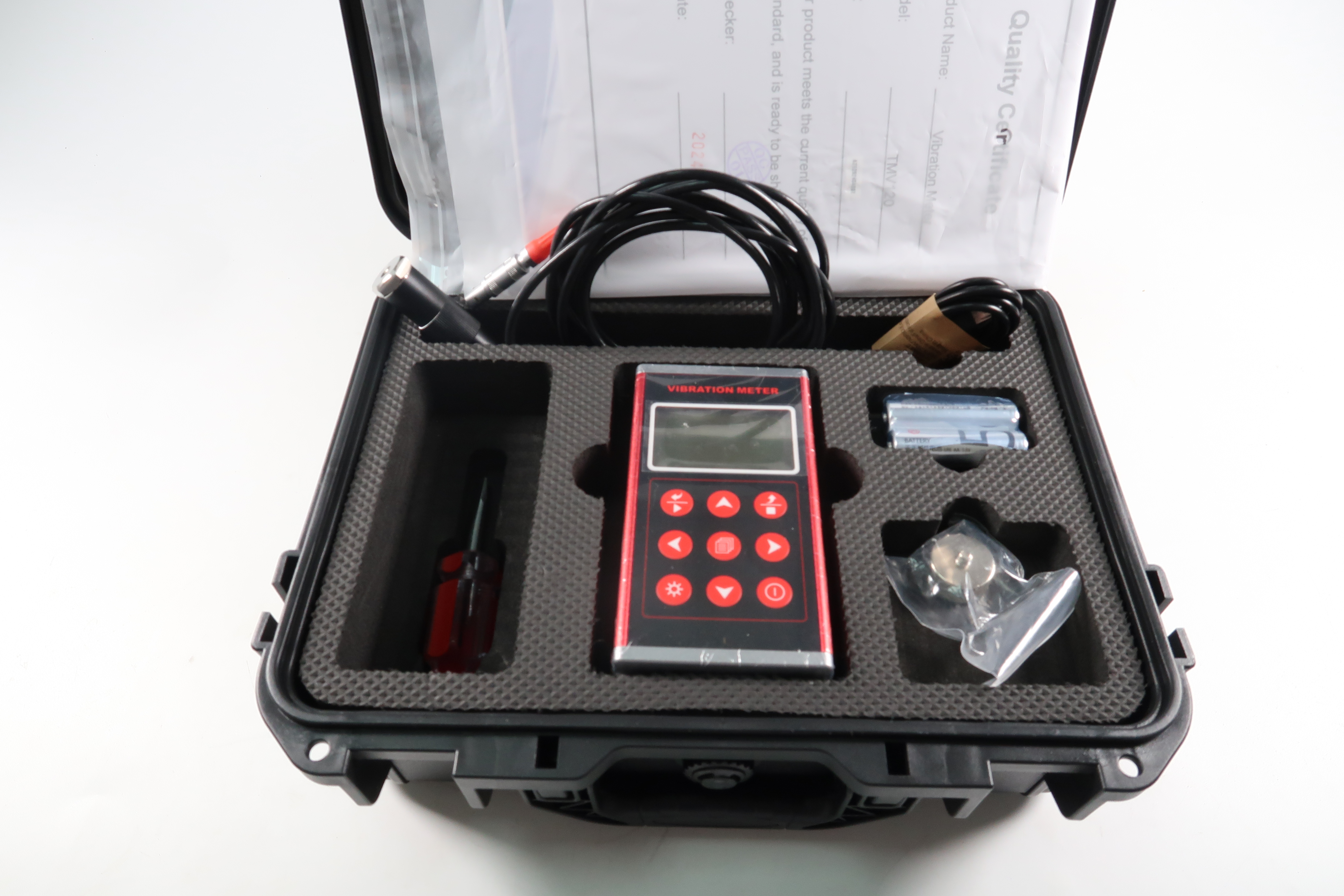

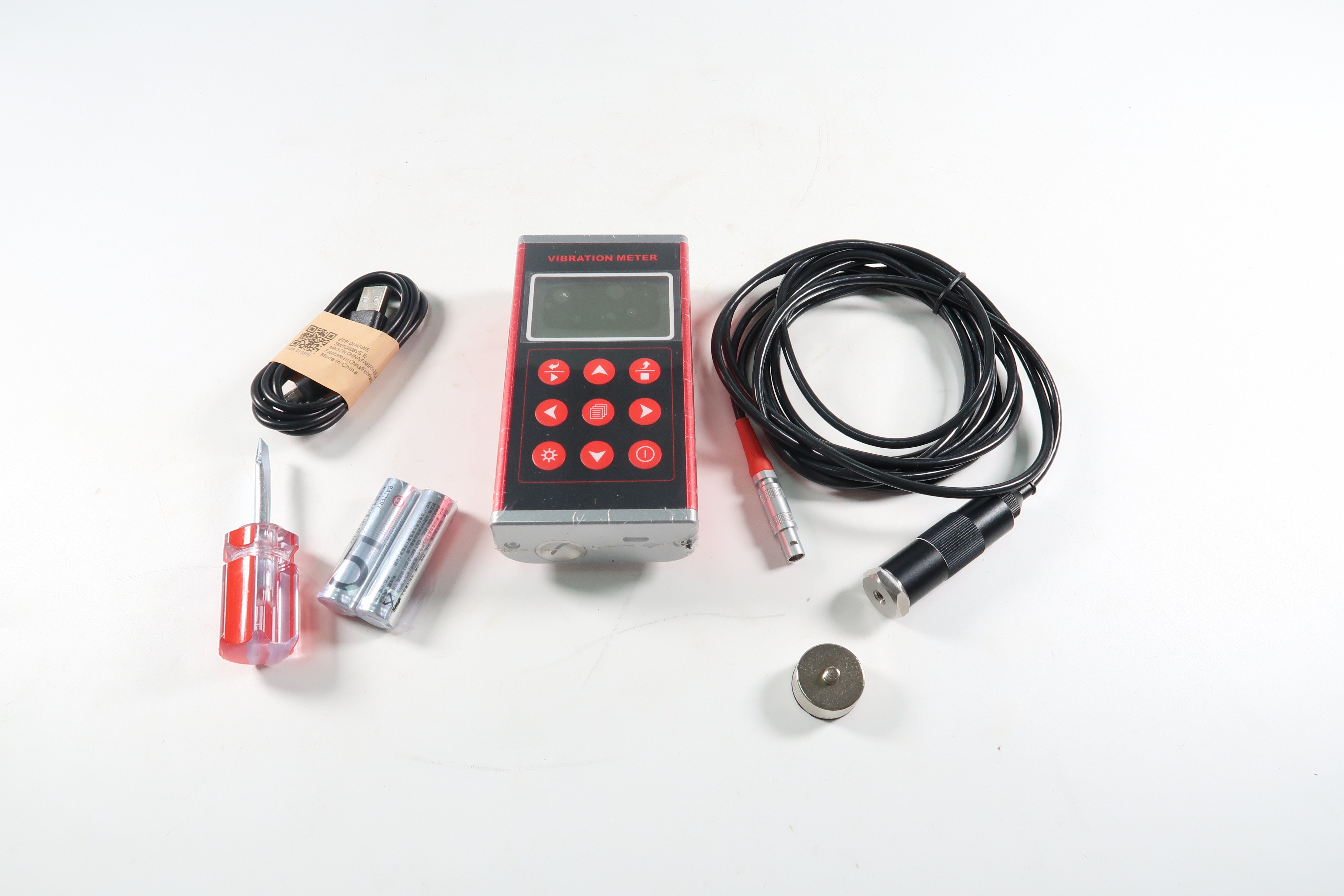

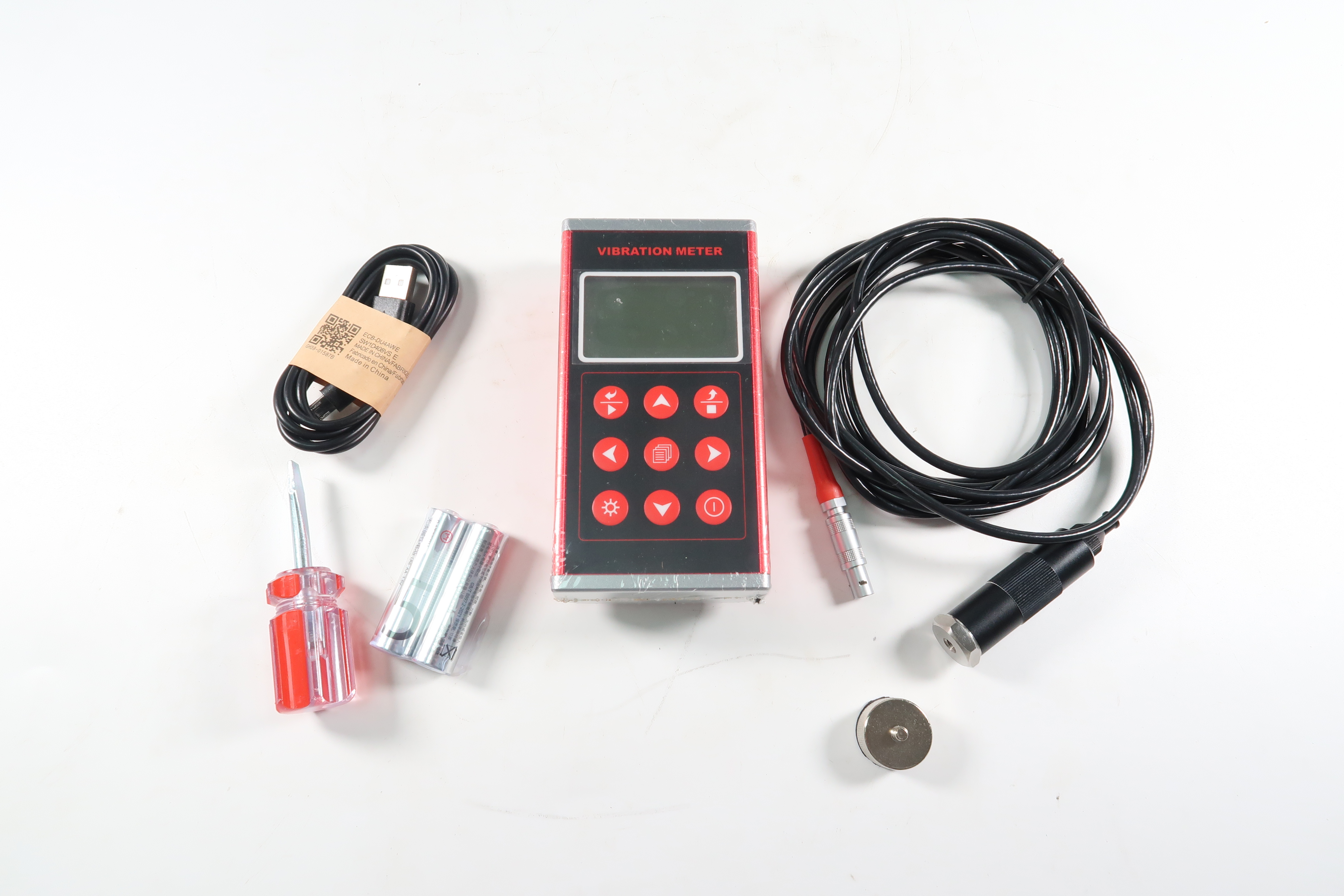

Configuration:

Standard configuration NO. Item Quantity
1 Main uni. 1
2 Power Adapters:output:5V/1000mA 1
3 Piezoelectric sensors 1
4 Magnetic seat 1
5 Manual 1
6 Package case 1
Optional configuration 7 Probe 1

Specifications:

Testing range

Acce: 0.1 m/s2 ~ 199.9 m/s2(peak)

Velo: 0.01 cm /s ~ 19.99cm /s(RMS)

Disp: 0.001mm ~ 1.999mm(peak-peak)

Freq range

Acce(LO): 10Hz ~ 1kHz

Acce(HI): 1kHz ~ 10kHz

Velo: 10Hz ~ 1kHz

Disp: 10Hz ~ 500Hz

Frequency measurement 3Hz~10KHz
rotation rate measurement 180rpm~60000rpm
Tolerance ±5%
Temp 0℃ ~ 40℃
Display LCD,128×64 pixels with LED backlight
Data memory 100×10
Data interface USB
Limit alarm Yes(Beep)
Battery AA×2
Continuous working time About 100h(without backlight)
Overall dimensions 126×66×31mm
Weight 228g

TMV120 Backlit USB Portable Vibration Meter Two Button Batteries 0

TMV120 Backlit USB Portable Vibration Meter Two Button Batteries 1
