| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Certification: | CE |
| Model Number: | TMV600 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton |
| Delivery Time: | 4-7 work days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 20PCS/Two weeks |
| Warranty: | 2years | Accuracy: | ±5% ± 2digits |
|---|---|---|---|
| Display: | 3 1/2 Digits LCD | Power Supply: | Two Button Batteries(LR44 Or SR44) |
| Operating Temperature: | 0℃ ~ 40℃ | Humidity: | <85% |
| Dimension: | 150mm×22mm×16mm | ||
| High Light: | lcd vibration recorder,high accuracy vibration recorder,tmteck vibration recorder |
||

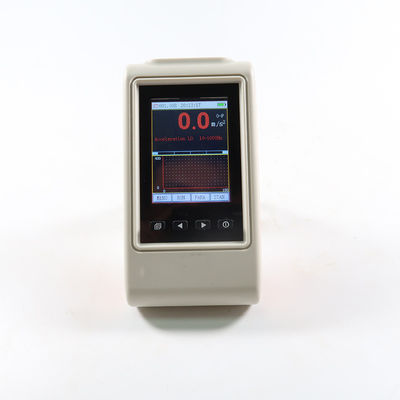

TMV600 Portable Vibration Recorder
TMV600 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rocord real time vibration curve.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
Built in iso10816 fault diagnosis standard, which can automatically diagnose the fault of the tested equipment.
The technical specifications of LV1000 comply with the requirements of GB 13823.3. TMV600 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
Configuration:
| Standard configuration | NO. | Item | Quantity |
| 1 | Main uni. | 1 | |
| 2 | Power Adapters:output:5V/1000mA | 1 | |
| 3 | Piezoelectric sensors | 1 | |
| 4 | Magnetic seat | 1 | |
| 5 | Manual | 1 | |
| 6 | Package case | 1 | |
| Optional configuration | 3 | Probe | 1 |
| 4 | Communication cable | 1 |
Specifications:
|
Testing range (Metric) |
Acce: 0.1 ~ 400.0m/s2(peak) Velo: 0.1 ~ 400.0mm/s(RMS) Disp: 0.001 ~ 4.000mm(peak-peak) |
| Freq range |
Acceleration: 10Hz ~ 1KHz, 1K Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz |
| Data memory |
150 ×100 pieces of patrol data 30 ~ 480 pieces of record data |
| Temp | 0℃ ~ 40℃ |
| Tolerance | ±5% |
| Humidity | ≤80％RH |
| Display | TFT:2.8”,320×240 pixels with RGB |
| Data interface | USB(RS232/RS485),Bluetooth |
| Overall dimensions | 140×76×28 |
| Printer | Wireless Bluetooth printer(Optional) |
| Weight | 180g |
| Battery | Rechargeable Li battery,2000mAh |
| Continuous working time | Continuous operation for about 20 hours, Standby for 80 hours |
