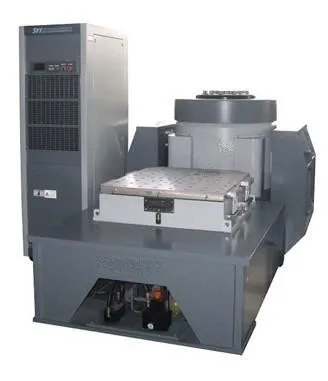

Electro Dynamic Vibration Analyzer and Calibrator ISO10816 TMVC6610-N3 Black Color 220V Power Supply

A

ⅰ

ⅱ

ⅲ

TMVC6610-N3 Electro-dynamic Vibrator

System Performance

type: TMVC6610-N3

Rated sine force: 32KN

Rated random force:32 KN

Frequency range: 2 – 3000 Hz

Max. displacement: 51 mm(P-P)

Max. acceleration: 980 m/s2

Max. velocity: 2.00 m/s

Max, load: 500 Kg

Size of Table: Φ 400 mm

Mass of moving elements:32 kg

Acceptable eccentric torque:400 N×m

Shape W×H×D (mm) :1000×1060×880

Weight : 2000 Kg

Switching power amplifier

type: SA-36

operation mode: Switching

Output power: 40 KVA

Single to noise ratio: >65 Db

Shape W×H×D (mm) :550×1700×800

Weight : 410 Kg

Cooling Blower

One

One

One

Slip table

Type:HG-1010

Dimension: 1000×1000 mm

Max. Load: 500kg

Material: Aluminum alloy

Frequency upper limit: 2000Hz

Max. Displacement: 51 mm

Head expander

Type: HG-800

Dimension: 800×800 mm

Mass: 135kg

Material: Aluminum alloy

Shape:Gridiron

Static & dynamic automatic center holding set

Type: HG-1

Purpose: keep the central position of shaker through adjusting the air volume of air spring.

Vibration controller

Type: HG-2000

Hardware: 4input channels,1 output channel

Software: Sine, random, shock
