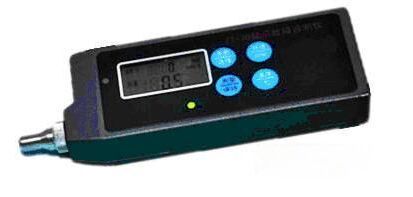

Digital Portable Vibration Calibrator 10HZ - 1KHZ 20 Hours TMVC-500

Description

Features:

• measure several vibration parameters, display related frequency
• measure temperature
• measure rotate speed, and display related frequency
• measure acceleration
• Installed standard ISO10816, directly display health status of tested equipment LED display

Specifications:

1 Parameters:

• Acc(unit:m/s2):0.1 to 199.9m/s2
• VEL(unit:mm/s):0.1 to199.9 mm/s
• DISP(unit:mm): 1 to 2000 µm
• Env (unit:Hi-m/s2):0.1 to 25 m/s2
• TEP (unit:oC):-20 oC to 200 oC
• RPM (unit:rpm/min) 1 to 9999rpm/min

2 Error:

• Acc:10Hz~5000Hz, + 5%;
• VEL:10Hz~2000Hz, + 5%
• DISP:10 Hz~1000Hz, + 5%
• Env;3kHz~10kHz 5Hz~2kHz, + 5%

3 Accuracy:±5%±2

4 Power:1pc 3.6V lithium battery, currency:10~40mA

Continuous working time: 20 hours

5 Working condition:0-50℃, humidity:<85%

6 Size:125 x50 x 20 (mm)

7 Weight: 100 g battery included
