Name: LH170 Portable Leeb Hardness Tester with High Accuracy ±0.5%, Rechargeable Lithium Battery, and Multiple Hardness Standards
Brand: TMTeck Instrument Co., Ltd
SKU: LH170
Price: Negotiable USD
Availability: InStock

Detail Information

Hardness Standards:	HL、HV、HRA、HRC、HRB、HB、HV、HS	Working Hours:	10 Hours
High Accuracy:	±0.5%(HLD=800)	Dimensions:	148mm×40 Mm×30mm
Power Supply:	Rechargeable Lithium Battery
Highlight:	High accuracy Leeb Hardness Tester , Rechargeable lithium battery Portable Hardness Tester , Multiple hardness standards LH170 Hardness Tester

Product Description

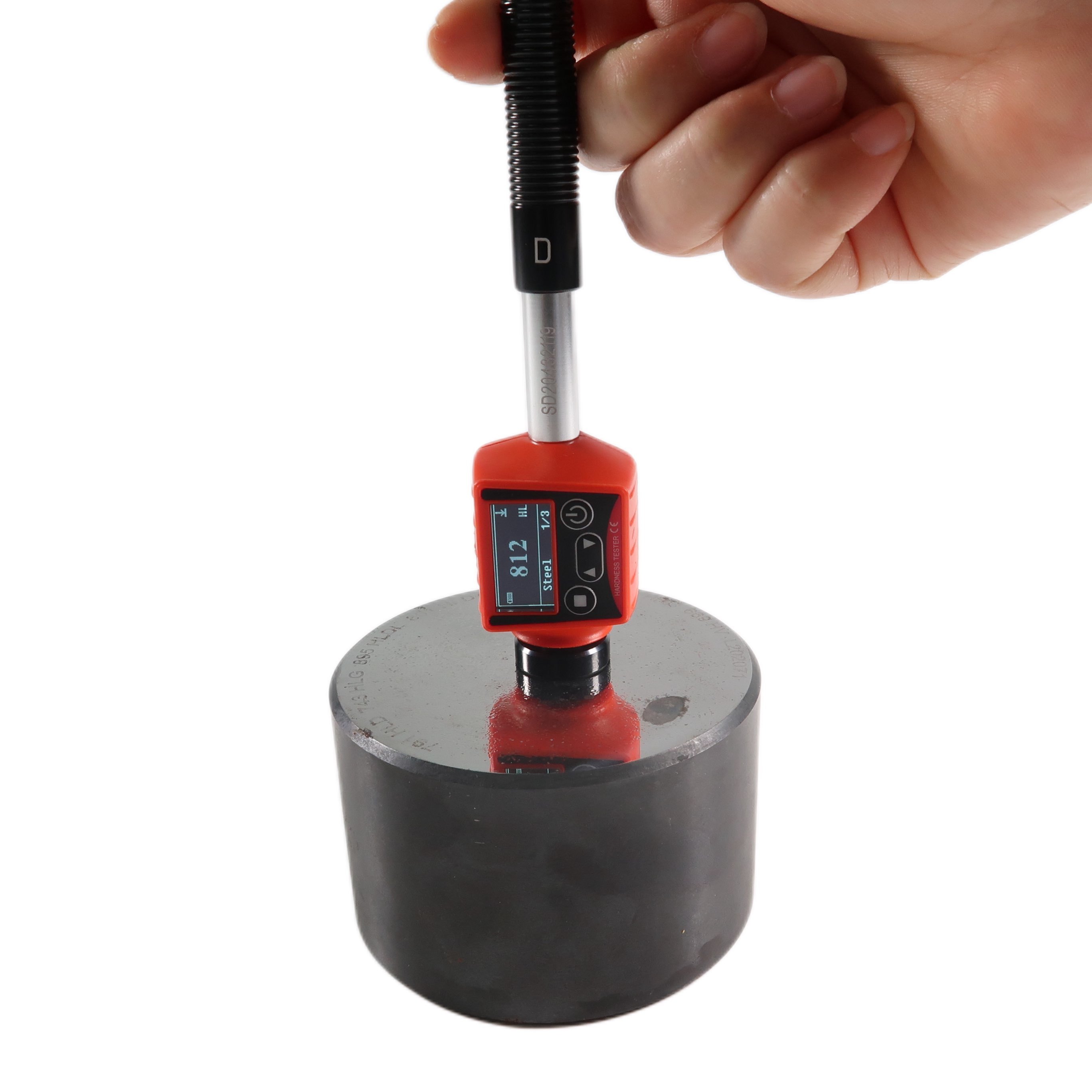

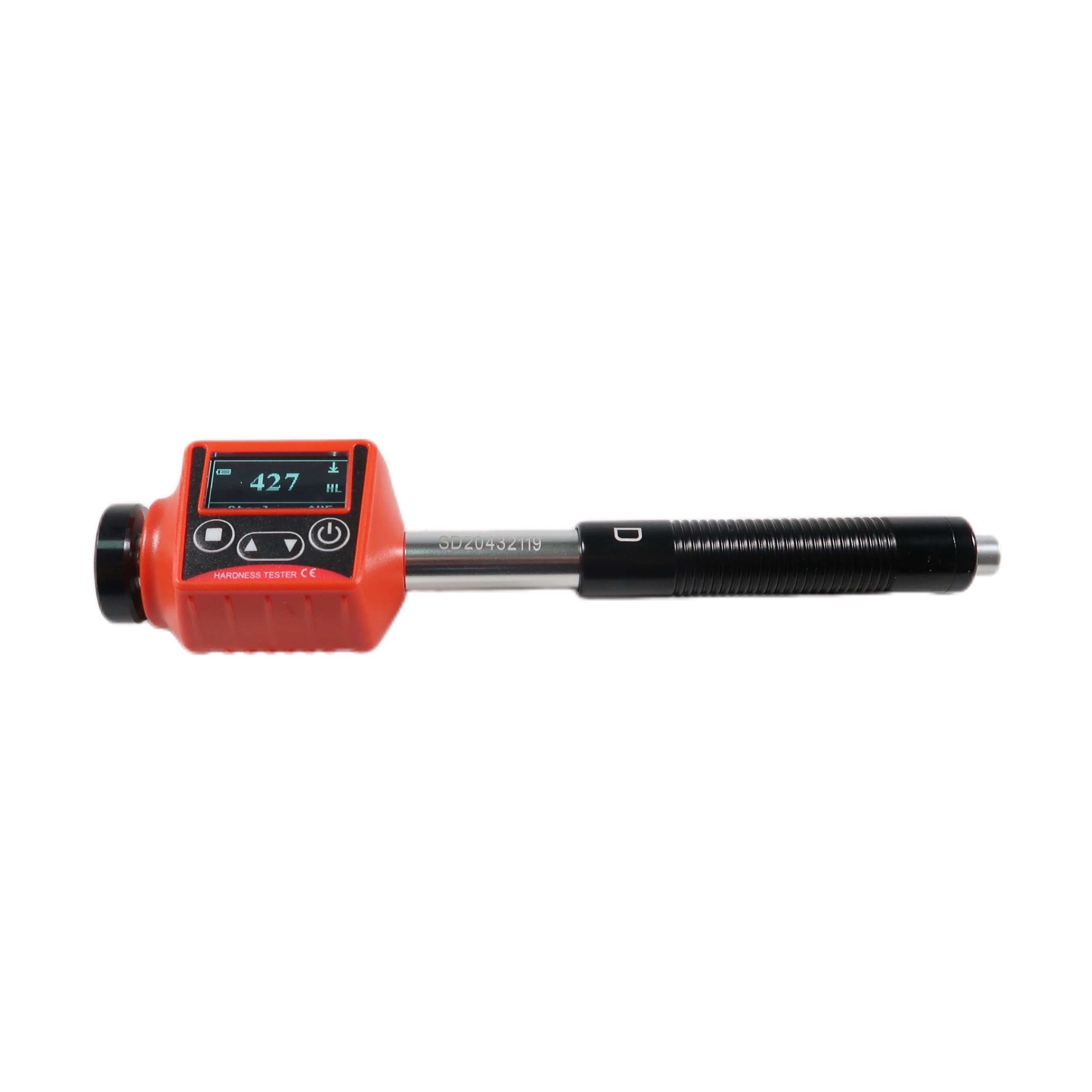

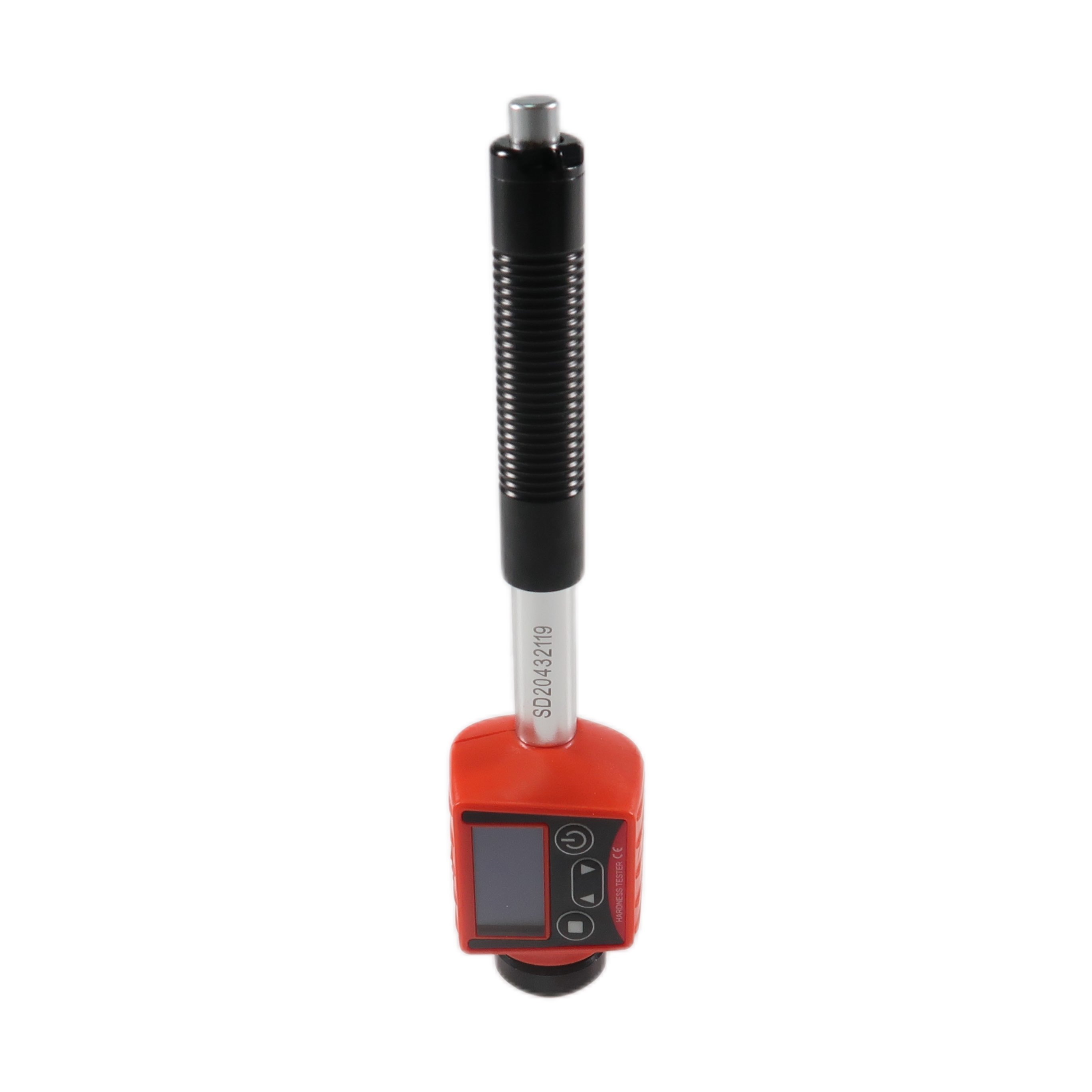

Pen Type Leeb Hardness Tester LH170 Smart and Portable

The LH170 is a portable hardness testing instrument that integrates the latest NDT technology with compact dimensions. This revolutionary product can test most metal objects with its pen-type design and innovative D/DL impacting probes, providing a convenient and reliable testing experience.

With its small size, impressive design, competitive pricing, and user-friendly operation, the LH170 hardness tester is suitable for various industrial applications.

Key Features

Intelligent operation with minimal buttons and clear magnitude/Rockwell value display

Industrial bright OLED display with excellent visibility even in direct sunlight

High measurement accuracy with ±0.5% error (HLD=800) and 0.8% repeatability

Supports multiple hardness standards: HL, HV, HRA, HRC, HRB, HB, HS

Large data storage capacity for 300 groups of hardness measurements

Supports forged steel materials with preset hardness values and automatic alarm functions

Extended 10-hour working time on single charge

Technical Specifications

Testing Direction	Highly accurate in any impact direction
Testing Range	(170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness Standards	HL, HV, HRA, HRC, HRB, HB, HS
Accuracy	HLD: ±0.5% (800HLD)
Repeatability Value	HLD: 0.8% (800HLD)
Display Resolution	128×64 OLED display
Dimensions	148mm × 40mm × 30mm
Power Supply	Rechargeable lithium battery
Working Hours	Approximately 10 hours
Working Conditions	Operating temperature: 10-50°C; Storage temperature: -30°C to 60°C; Humidity: 90% max

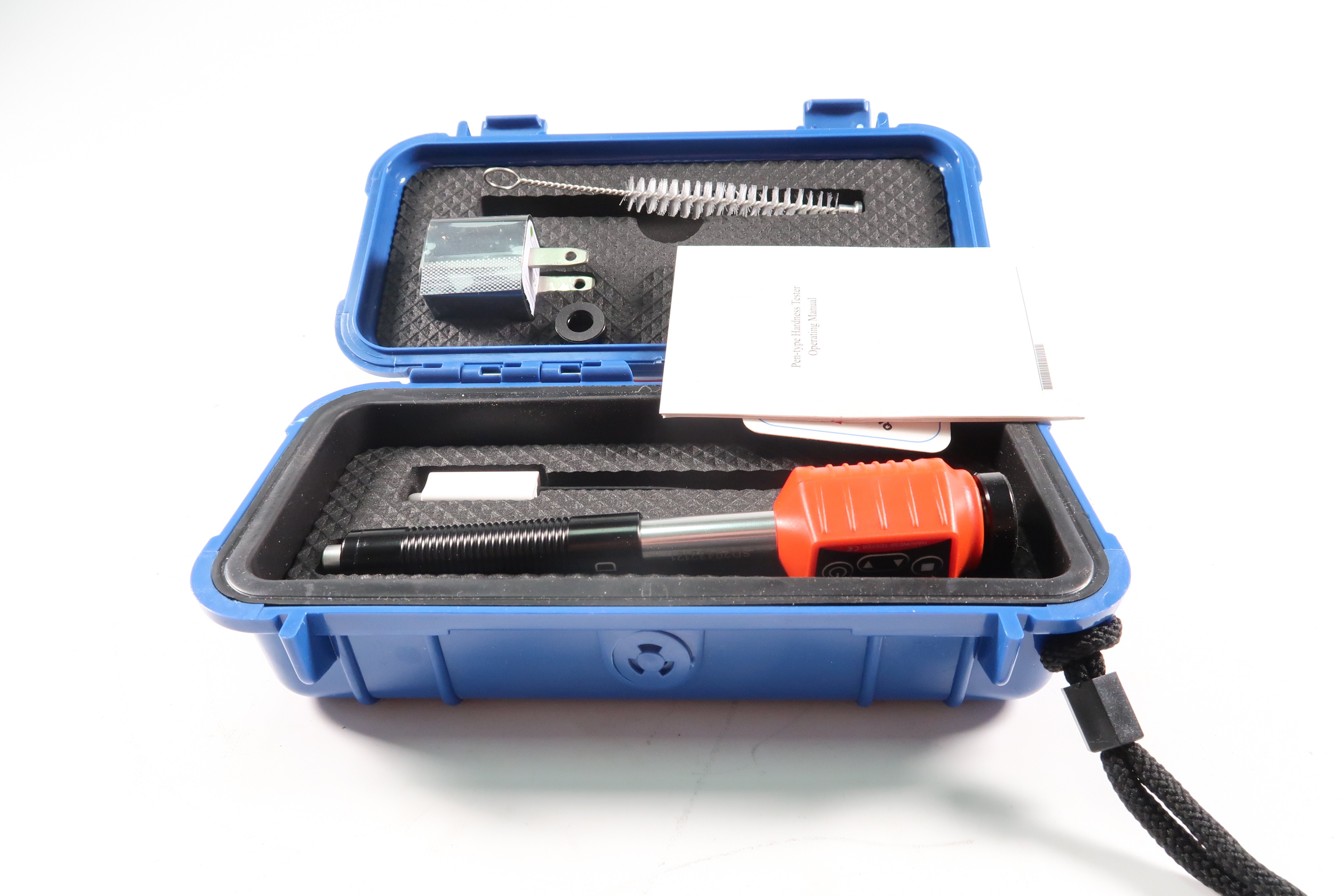

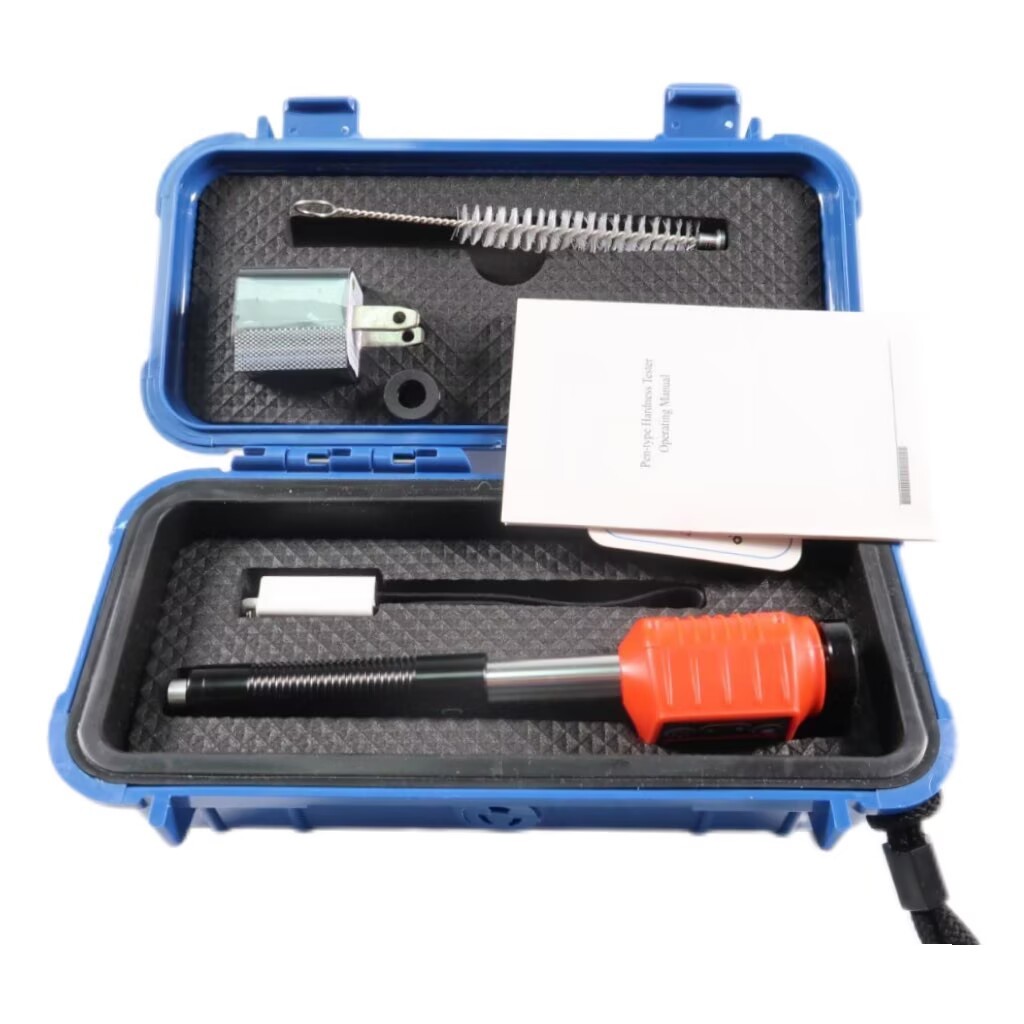

Standard Equipment

Item	Quantity
The instrument host	1
Brush	1
Small bearing rings	1
The ABS instrument	1

Applicable Materials

Steel and cast steel

Alloy tool steel

Stainless steel

Gray cast iron

Nodular cast iron

Cast aluminum alloy

Copper zinc alloys (brass)

Alloy of copper and tin

Copper (bronze)

Applications

Bearings and other precision components

Failure analysis of pressure vessels, steam turbine generator groups, and equipment

Heavy workpieces and large structures

Mechanical or permanent assembly installations

Testing in very narrow spaces

Applications requiring formal test result documentation

Product Images

Tag:

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE、ISO9001
Model Number:	LH170

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Supply Ability:	50 pieces within one week
