LH170 Portable Leeb Hardness Tester with Calibration Block

Basic Information

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE、ISO9001
Model Number:	LH170

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Supply Ability:	50 pieces within one week

Get Best Price Contact Now

Detail Information

Hardness Standards:	HL、HV、HRA、HRC、HRB、HB、HV、HS	Working Hours:	10 Hours
High Accuracy:	±0.5%(HLD=800)	Dimensions:	148mm×40 Mm×30mm
Power Supply:	Rechargeable Lithium Battery
Highlight:	LH170 Leeb hardness tester with calibration , Portable Leeb hardness tester with block , LH170 portable hardness tester calibrated

Product Description

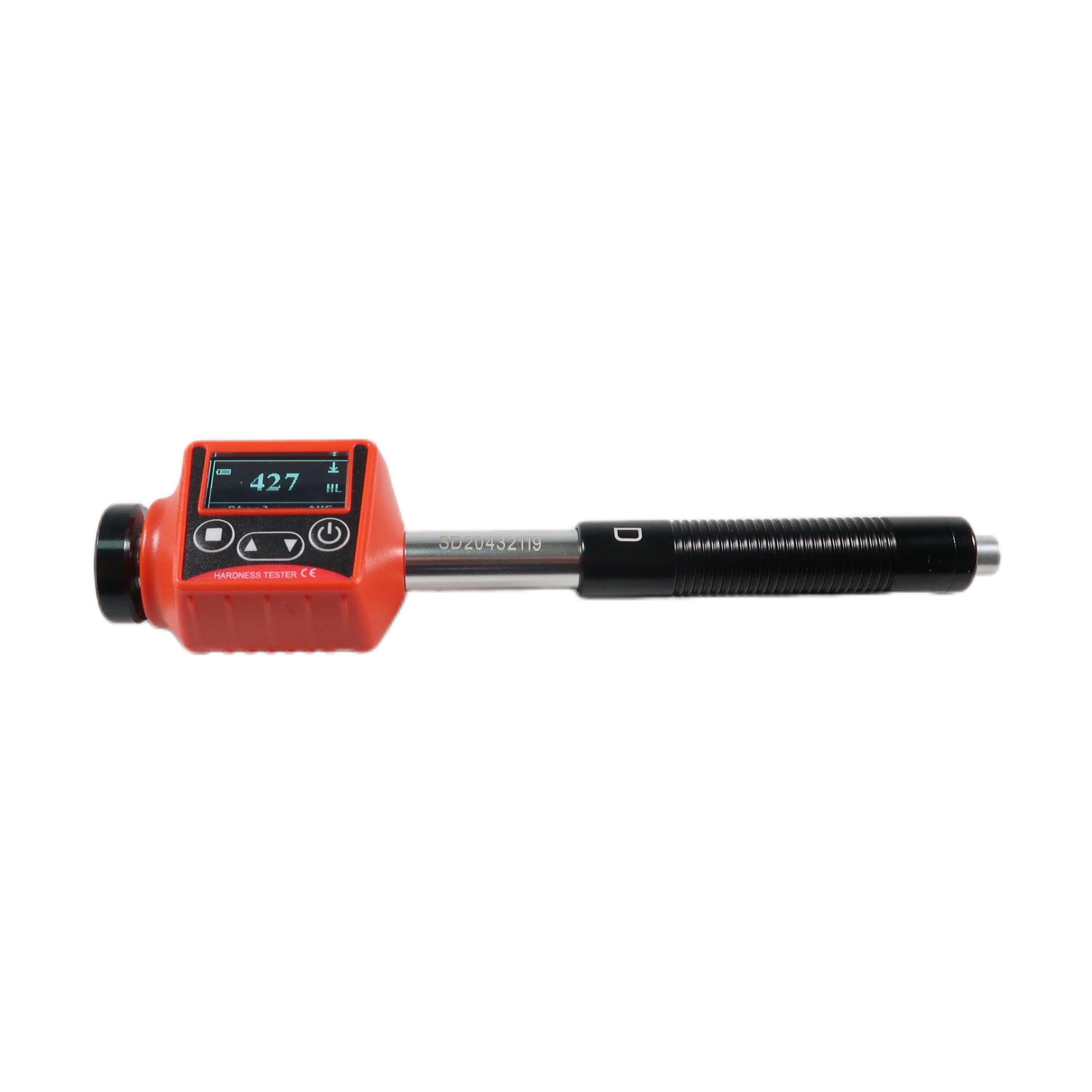

Pen Type Leeb Hardness Tester LH170 Smart and Portable

The LH170 is a portable hardness testing instrument that integrates the latest NDT technology with compact dimensions. This revolutionary product can test most metal objects with its pen-type design and innovative D/DL impacting probes, providing a convenient and reliable testing experience.

With its small size, impressive design, competitive pricing, and user-friendly operation, the LH170 hardness tester is suitable for various industrial applications.

Key Features

Intelligent operation with minimal buttons and clear magnitude/Rockwell value display

Industrial bright OLED display with excellent visibility even in direct sunlight

High measurement accuracy with ±0.5% error (HLD=800) and 0.8% repeatability

Supports multiple hardness standards: HL, HV, HRA, HRC, HRB, HB, HS

Large data storage capacity for 300 groups of hardness measurements

Supports forged steel materials with preset hardness values and automatic alarm functions

Extended 10-hour working time on single charge

Technical Specifications

Testing Direction	Highly accurate in any impact direction
Testing Range	(170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness Standards	HL, HV, HRA, HRC, HRB, HB, HS
Accuracy	HLD: ±0.5% (800HLD)
Repeatability Value	HLD: 0.8% (800HLD)
Display Resolution	128×64 OLED display
Dimensions	148mm × 40mm × 30mm
Power Supply	Rechargeable lithium battery
Working Hours	Approximately 10 hours
Working Conditions	Operating temperature: 10-50°C; Storage temperature: -30°C to 60°C; Humidity: 90% max
