Home > Products> Leeb Hardness Tester> High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory

High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory

Basic Information

Place of Origin:	China
Brand Name:	TMTECK
Certification:	EN ISO 16859-2016
Model Number:	THL600

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	50 pieces within one week

Get Best Price Contact Now

Detail Information

Services:	OEM, ODM, OBM	Warranty:	2 Years
Hardness Scale:	HL, HB, HRB, HRC, HRA, HV, HS	Measuring Range:	HLD（170～960）
Dimensions:	1206031mm (main Unit)	Relative Humidity:	≤90%
Highlight:	High Precision Hardness Tester , 7 Types of Impact Device Ultrasonic Thickness Gauge , 1200 Groups Data Memory Leeb Hardness Tester

Product Description

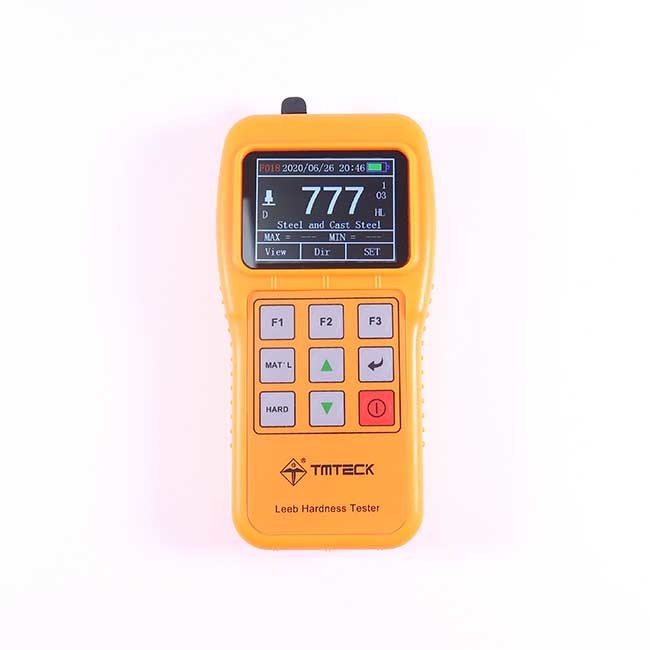

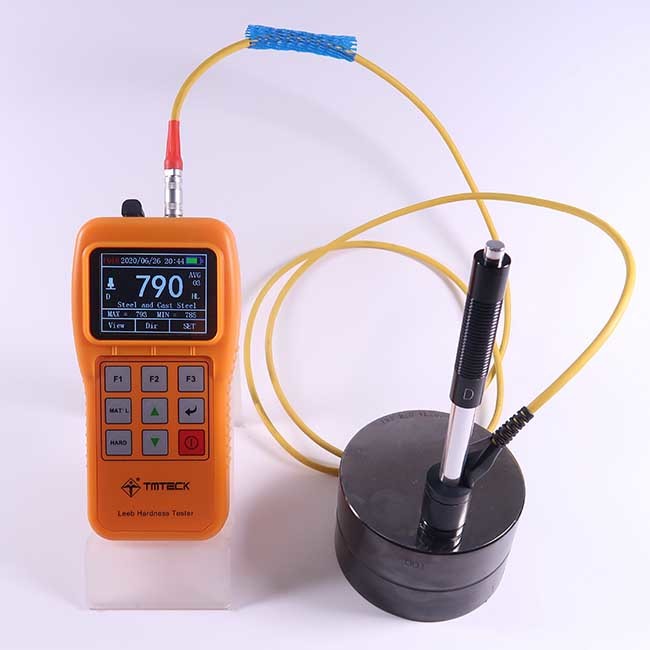

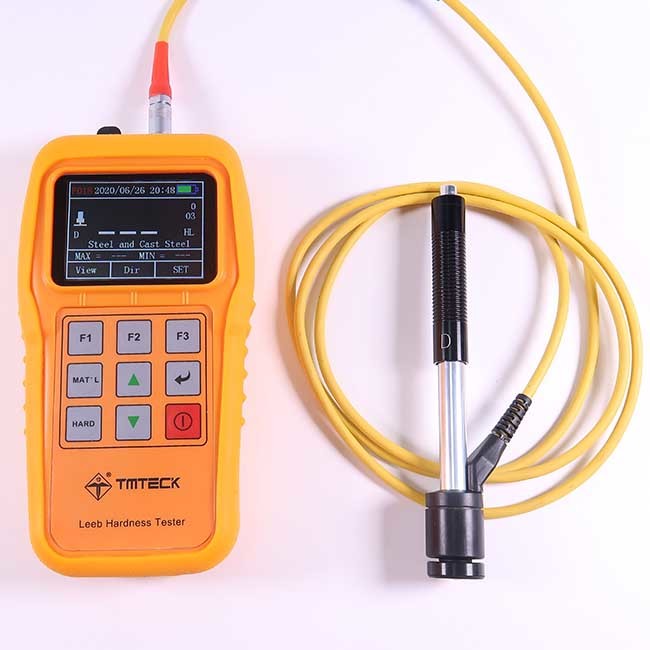

High Precision Hardness Tester THL600

Product Overview

The THL600 High Precision Hardness Tester is a professional-grade instrument designed for accurate and reliable hardness testing across various metal materials and applications.

Key Features

3-inch color display showing all functions and parameters
Converts to all common hardness scales (HV, HB, HRC, HRB, HRA, HS)
English display with easy and convenient menu operation
Powerful PC Software with USB 2.0 interface and USB Protective Membrane
7 types of optional Impact Devices that don't require recalibration when changed
Memory capacity of 1200 data groups (impact times: 32-1)
Lower limit setting with sound alarm functionality
Added "cast steel" material type; HB values can be read directly when using D/DC impact device
Separate printer for on-demand printing of test results
Easy-to-change AA batteries for convenient transport
Inbuilt Software Calibration function
User-defined material curve function for special materials
Auto direction feature for simplified testing

Compliance Standards

National standard: GB/T 17394.1-2014; GB/T1172-1999
EU standard: DIN 50156-2007
ASTM standard: ASTM A956(2012)

Custom Material Curve Function

The custom material curve function allows adjustment of conversion tables based on actual measurement conditions, expanding the instrument's applicability and accuracy for special materials such as forged steel, rolled steel, alloy steel, or specially processed metal materials.

Auto Direction Feature

Customer Curve Interface

Calibration Options

Bluetooth Connectivity

Technical Specifications

Parameter	Specification
Hardness Scale	HL, HB, HRB, HRC, HRA, HV, HS
Memory	48-600 groups (impact times: 32-1)
Measuring Range	HLD(170-960)
Accuracy	±4HLD (760±30HLD) error of displayed value
Repeatability	4HLD (760±30HLD) repeatability of displayed value
Standard Impact Device	D
Optional Impact Devices	DC/D+15/G/C/DL/E
Max. Workpiece Hardness	996HV (For Impact Devices D/DC/DL/D+15/C)
Max. Workpiece Hardness	646HB (For Impact Device G)
Min. Radius of Workpiece	Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece Weight	2-5kg on stable support
Min. Workpiece Thickness	5mm (Impact Devices D/DC/DL/D+15)
Min. Workpiece Thickness	1mm (Impact Device C)
Min. Workpiece Thickness	10mm (Impact Device G)
Min. Thickness of Hardened Surface	0.8mm
Power	AA battery
Continuous Working Time	approx. 100 hours (no back light off)
Operating Temperature	0-40℃
Relative Humidity	≤90%
Overall Dimensions	1206031mm (main unit)

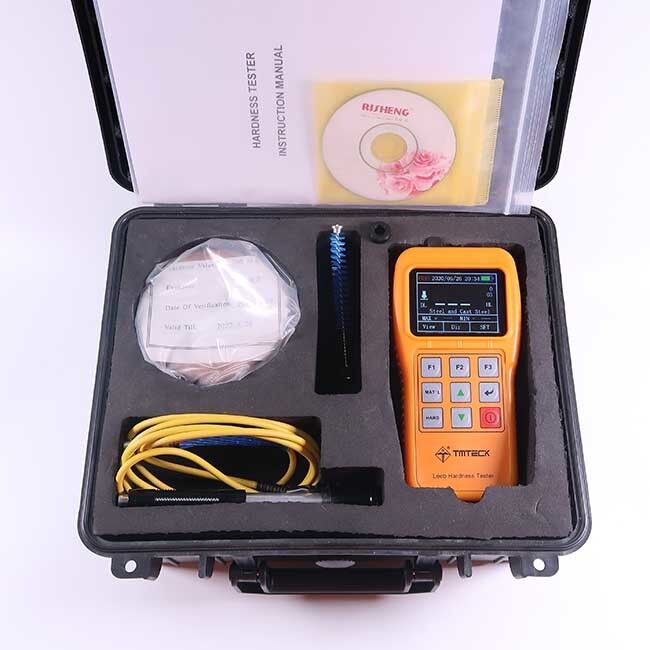

Standard Configuration

Seq	Name	Qty	Remark
1	Main Unit	1	Standard configuration
2	Impact Device Type D	1	Standard configuration
3	Test Block Type D	1	Standard configuration
4	Cleaning Brush	1	Standard configuration
5	Supporting Ring	1	Standard configuration
6	Communication Cable	1	Standard configuration
7	Manual	1	Standard configuration
8	Carrying Case	1	Standard configuration
9	DataPro Software (USB)	1	Standard configuration
11	Bluetooth Printer	1	Optional configuration
