Portable Leeb Hardness Tester THL370 with 600 Groups Data Memory, 360 Degree Measuring Direction, and 3 Inch Screen

Basic Information

Place of Origin:	China
Brand Name:	TMTECK
Certification:	EN ISO 16859-2016
Model Number:	THL370

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	50 pieces within one week

Get Best Price Contact Now

Detail Information

Services:	OEM, ODM, OBM	Warranty:	2 Years
Measuring Range:	HLD（170～960)	Hardness Scale:	HL,HB,HRB,HRC,HRA,HV,HS
Dimensions:	210mm85mm35mm	Data Memory:	600 Groups Max
Highlight:	600 groups data memory Leeb Hardness Tester , 360 degree measuring direction Portable Hardness Tester , 3 inch screen Ultrasonic Hardness Tester

Product Description

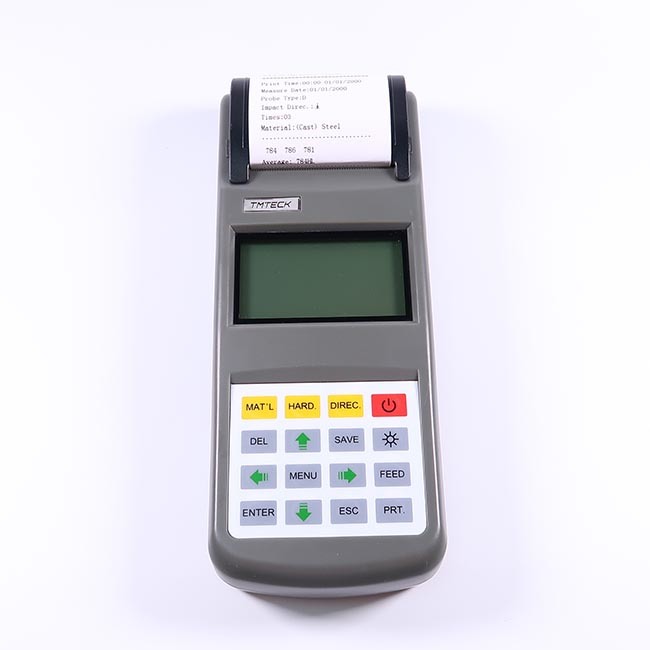

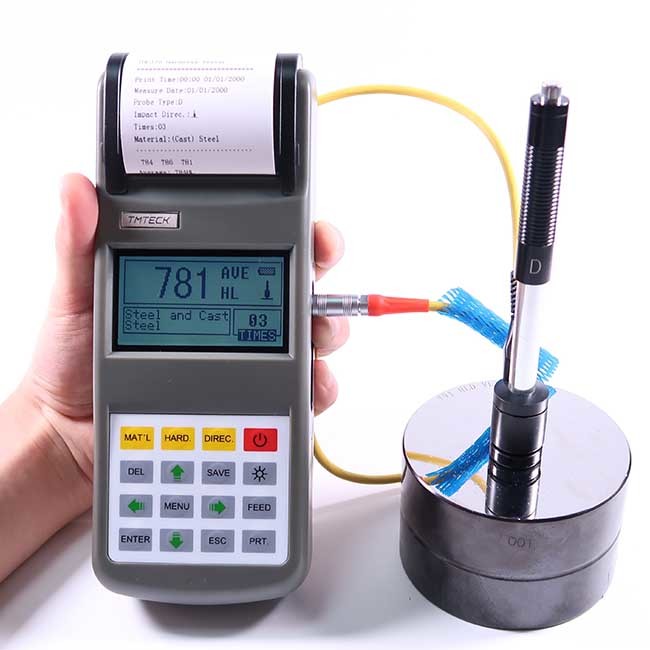

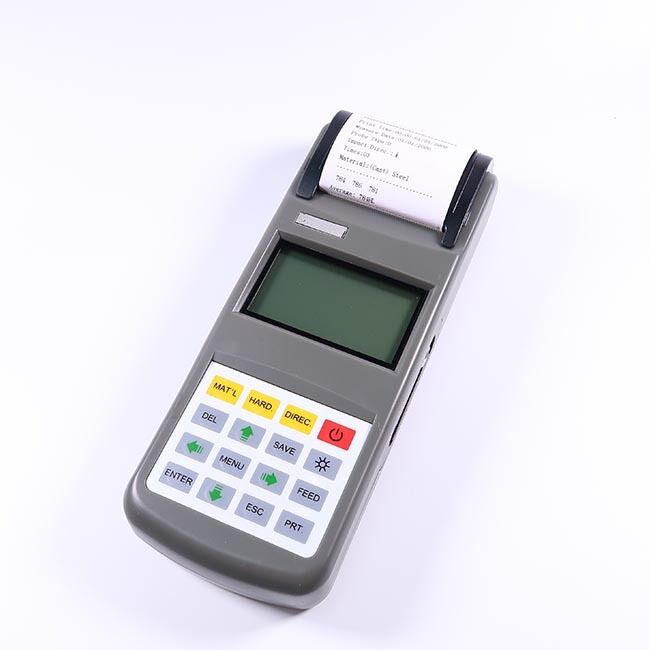

Portable Leeb Hardness Tester THL370

Product Overview

The THL370 Portable Leeb Hardness Tester represents the pinnacle of portable hardness testing technology, featuring the largest screen available in China and exceptional durability for industrial applications.

Key Advantages

3-inch large screen display - the largest in China for easy reading and operation
Premium impact device with exceptional stability and aging resistance, tested for 2+ years of continuous use
360-degree testing capability, including upside-down operation
Wide measuring range covering all metallic materials with direct display of HRB, HRC, HV, HB, HS, HL scales and strength values
Seven specialized impact devices with automatic identification
Large 600-group memory capacity with comprehensive data storage
Presettable upper and lower limits with automatic alarm system
Battery capacity indicator and charge status display
User calibration functionality

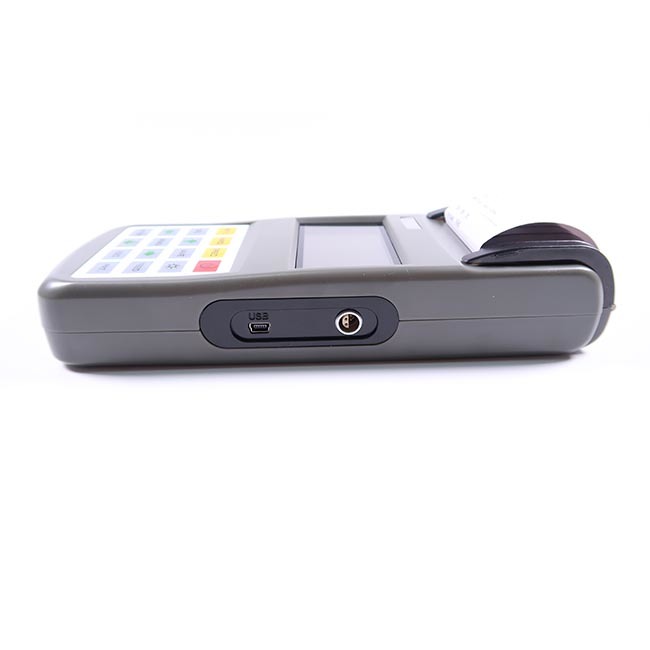

USB connectivity with multifunctional PC software
Integrated high-speed thermal printer for immediate data printing
NI-MH rechargeable battery with 150+ hours continuous operation
Auto power-off energy saving feature
3-year guarantee with lifetime maintenance support

Main Applications

Mold die cavities and bearing components
Pressure vessel and steam generator failure analysis
Heavy workpieces and large-scale components
Permanently assembled machinery parts
Small hollow space surface testing
Metallic material identification in warehouse settings
Rapid testing across large workpieces with multiple measuring areas

Technical Specifications

Measuring Range	HLD (170-960) HLD
Measuring Direction	360 degrees
Hardness Scales	HL, HB, HRB, HRC, HRA, HV, HS
Display	3-inch screen
Data Memory	600 groups maximum
Printing Paper	Width: 57.5±0.5mm, Diameter: 30mm
Battery Pack	6V NI-MH
Battery Charger	9V/500mA
Continuous Operation	Approximately 150 hours
Communication Interface	USB 1.1
Dimensions	210mm * 85mm * 35mm

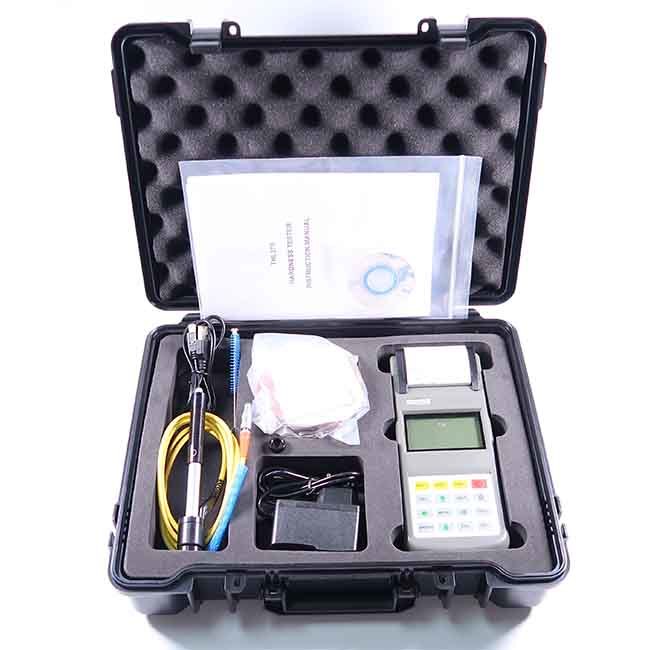

Standard Configuration

No.	Item	Quantity	Remarks
1	Main Unit	1
2	D Type Impact Device	1	With cable
3	Standard Test Block	1
4	Cleaning Brush (I)	1
5	Small Support Ring	1
6	Battery Charger	1	9V 500mA
7	Paper for Printing	1
8	Manual	1
9	Instrument Case	1
10	Software	1
11	CD Cable	1
