Ultrasonic Flaw Detector TFD800C Portable Instrument USB Memory Rotary Knob Operation 1kg Lightweight

Basic Information
Place of Origin: China
Brand Name: TMTECK
Certification: CE
Model Number: TFD800C
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 30 pieces within one month
Detail Information
0 ~ 10000: 0-10000 Mm ,at Steel Velocity Vertical Linearity Error: ≤3%
Horizontal Linearity Error: ≤0.1% Sensitivity Leavings: >62dB
Pulse Displacement: ≥34dB Frequency Range(MHz): 0.5 ~ 20
Warranty: 2 Years
Highlight:

Connect Pc ultrasonic flaw detector machine

,

TMTECK ultrasonic flaw detector machine

,

TMTECK


Product Description

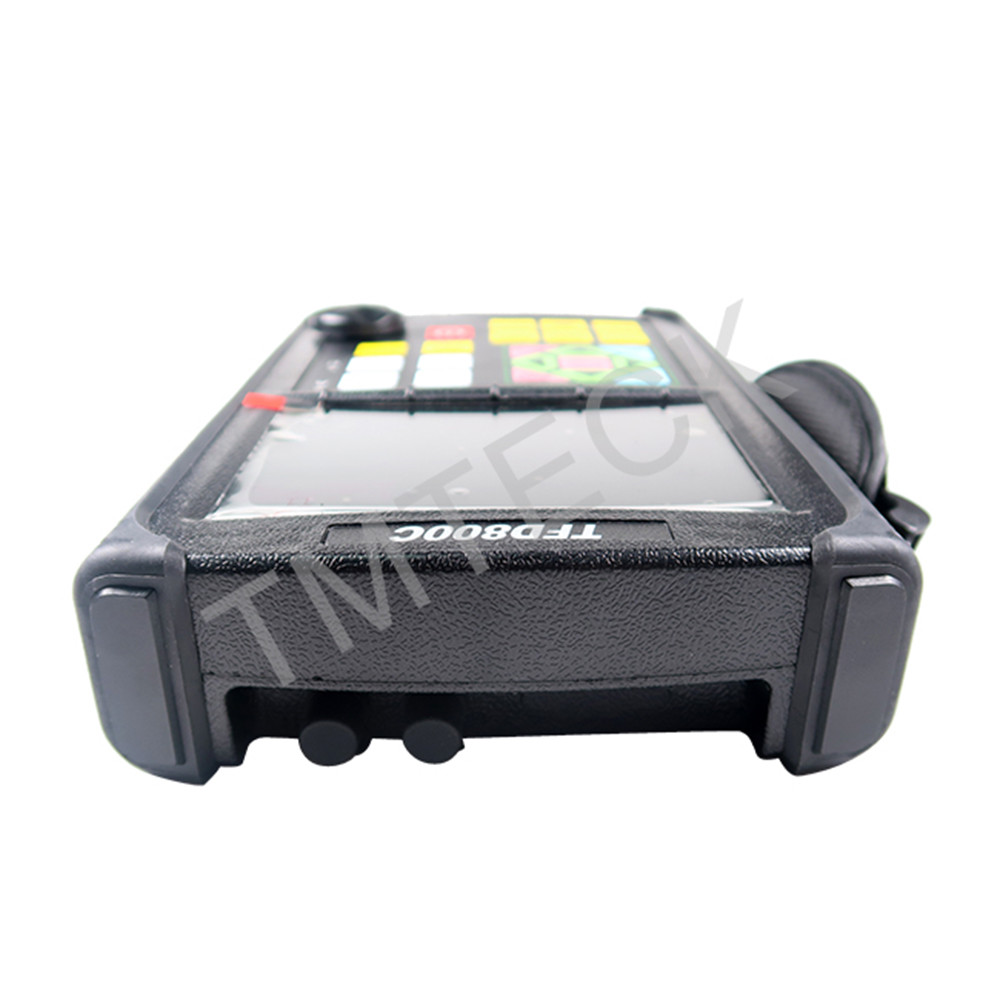

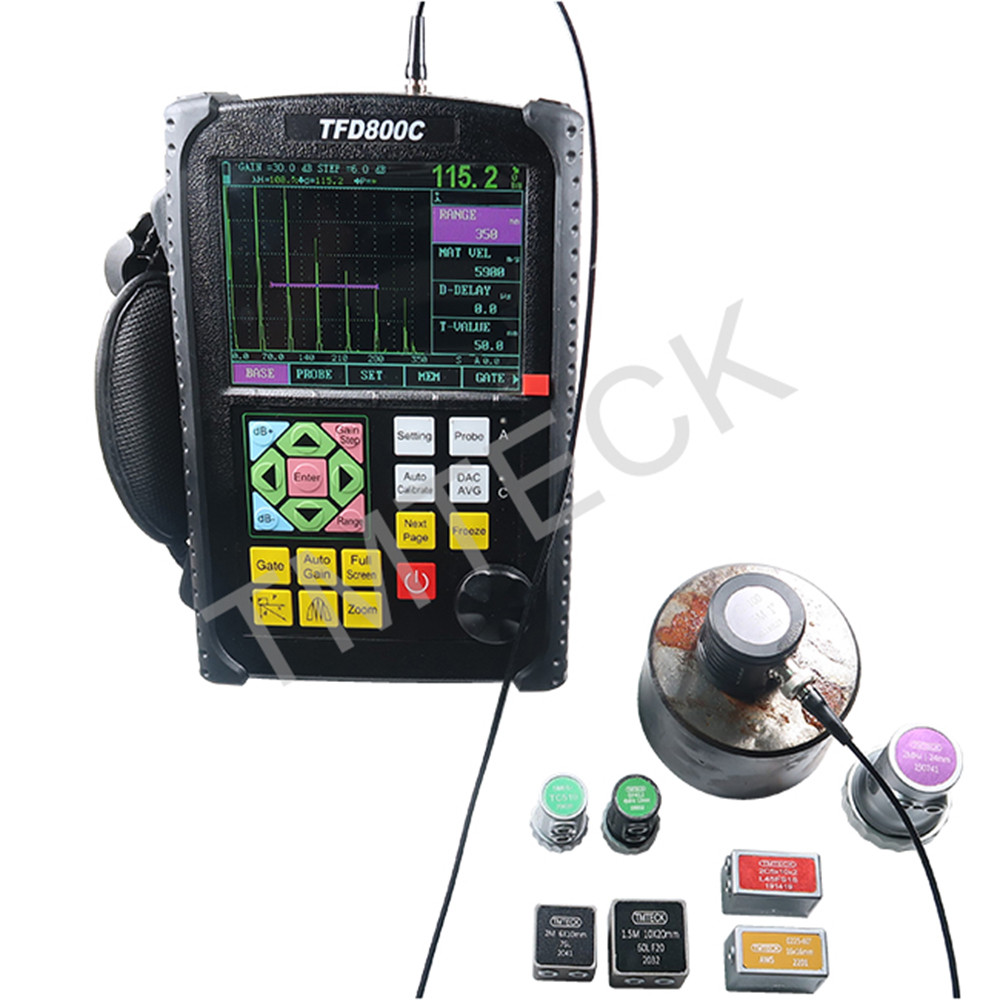

TFD800C Ultrasonic Flaw Detector with digital display and rotary knob control

The TFD800C is a compact, USB-enabled digital ultrasonic flaw detector featuring a fast rotary knob for simple operation. Weighing just 1 kg including the battery, it is designed for reliable use in direct sunlight and operation at extreme temperatures.

Product Overview
  • Automated calibration and automated gain
  • Automated video recording of the test process with playback
  • AWS D1.1, DAC (6dB DAC), AVG, TCG & B-scan, and 28 DGS curves
  • Pulse adjustable by the customer
  • High-speed capture with very low noise
  • Solid metal housing (IP65) with rubber plastic dust cover included
  • High-contrast waveform viewing in bright conditions
  • Powerful PC software with reports exportable to Excel
  • Small, lightweight model — total 1 kg with battery
  • Knob design for fast operation
  • USB memory stick for unlimited data transmission
Key Features
  • Automated calibration of transducer, angle, zero point, and velocity
  • Automated gain, peak hold, and peak memory
  • Automated display of precise flaw location (depth d, level p, distance s, amplitude, sz dB, ф)
  • Automated switching between three staff gauges (depth d, level p, distance s)
  • 100 independent setups — any criterion can be input freely, allowing on-site work without a test block
  • Large memory for 1000 A-graphs
  • RS232 / USB 2.0 port for easy PC communication
  • Embedded software supports online updates
  • Li battery with continuous working time up to 10 hours
Additional Assistant Functions
  • Display freeze
  • Automated echo degree
  • Angles and K-value
  • Lock and unlock function of system parameters
  • Dormancy and screen savers
  • Electronic clock calendar
  • Two-gate setting with alarm indication
  • High-speed capture with very low noise
  • Automated video recording of the test process with playback via USB memory disk — no limit on video time
Main Technical Specifications
Parameter Specification Parameter Specification
Measuring Range (mm) 0 – 10000 Measurement Mode Single, Dual, Thru
Vertical Linearity Error ≤3% Reject 0 – 80%
Horizontal Linearity Error ≤0.1% Pulse Displacement (μs) -20 – +3400
Sensitivity Leavings ≥62dB Zero (μs) 0.0 – 99.99
Pulse Displacement ≥34dB Port Type BNC
Resolving Power ≥36 Operating Temperature (℃) -20 – 50
Frequency Range (MHz) 0.5 – 20 H*W*D (mm) 210*156*40
Gain (dB) 0 – 120 Weight (kg) 1.0 (with battery)
Material Velocity (m/s) 1000 – 15000
TFD800C Standard Configuration
No. Item Quantity
1 Main Body 1
2 Straight Beam Probe (single type 2.5MHz 20mm) 1
3 Angle Probe (8*9mm 4MHz 60°) 1
4 Machine-Probe Cable 2
5 Battery Module 1
6 Power Adapter (Charger) 1
7 Manual 1
8 Instrument Case 1
9 Datapro Software 1
10 USB Communication Cable 1
